'' EFFECT 60S ''
Specifications
Thermal insulation
Uw value down to 0,6W/m²K
Water tightness
Up to 1500 Pa (EN 1027: CLASS E1500)
Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 2000 Pa (EN 13116)
Visible width
60 mm
Glass thickness
6-55 mm
Overall system depth
50-220 mm
Safety wind load resistance up to
Up to 3000 Pa (EN 13116)
Note: Performances may be different depending on the profile combinations.
DESIGN
"Contemporary, trendy, permanent..."
'' EFFECT 60S ''

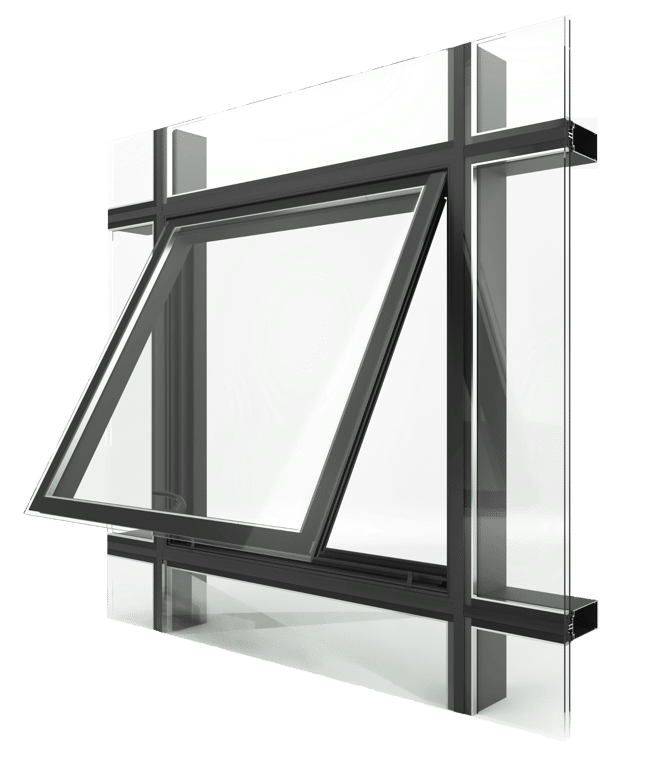

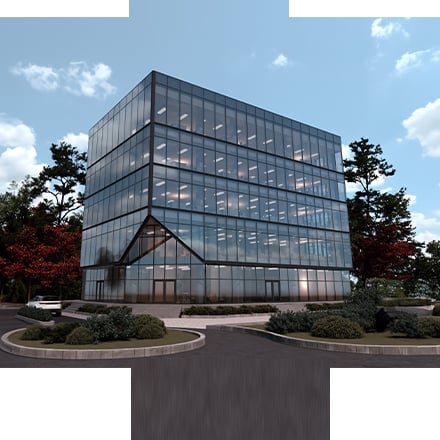

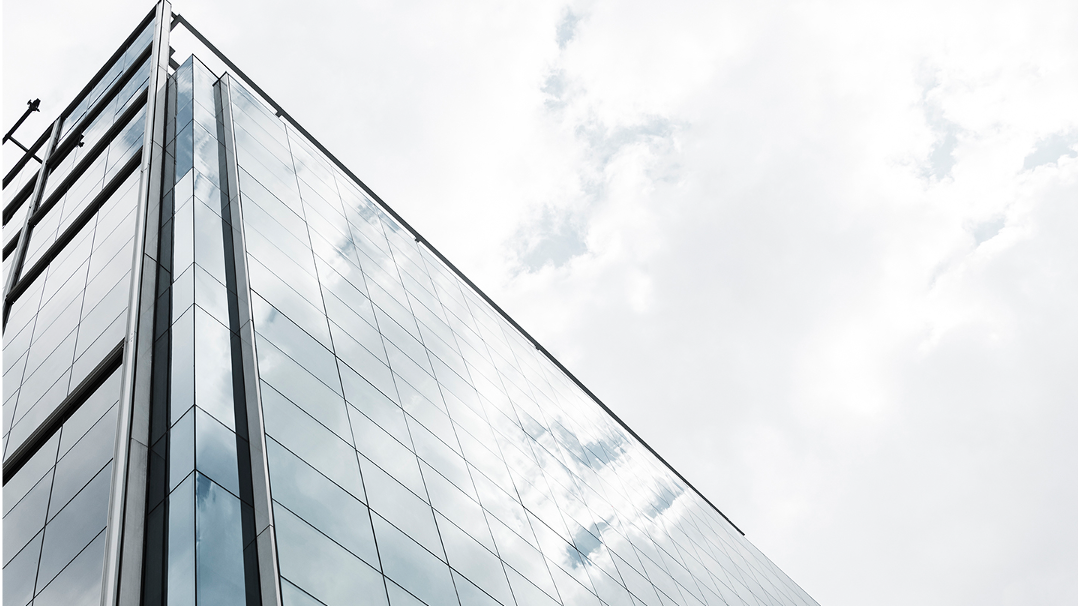

"Effect 60S" AS.SF.600 silicone facade system from the Alufour system series is a structural silicone facade system combined with horizontal and vertical carrier profiles and can be designed in different sizes depending on the project.

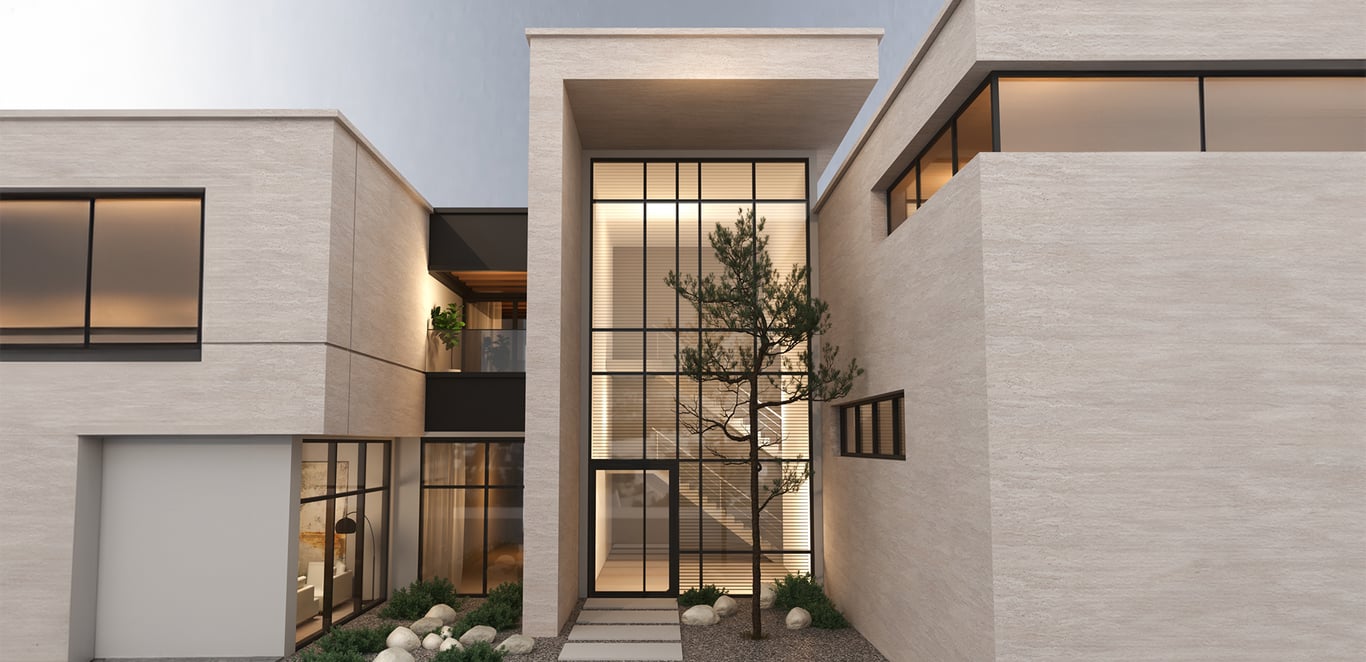

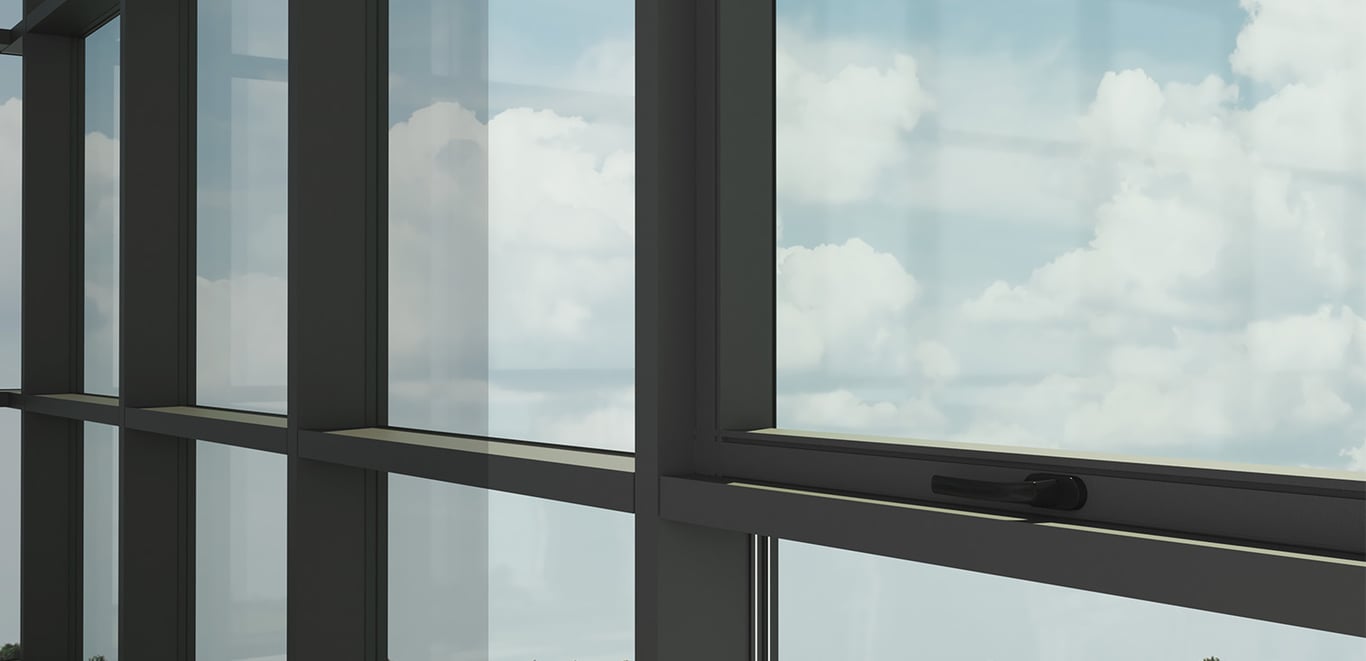

OPENING TYPES
Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.
Available in multiple opening types and configurations.
DOWNLOAD
You can download brochures and documents related to the specific system you need in your projects from here.
To download and discover all Alufour Systems products you can
look our download page.

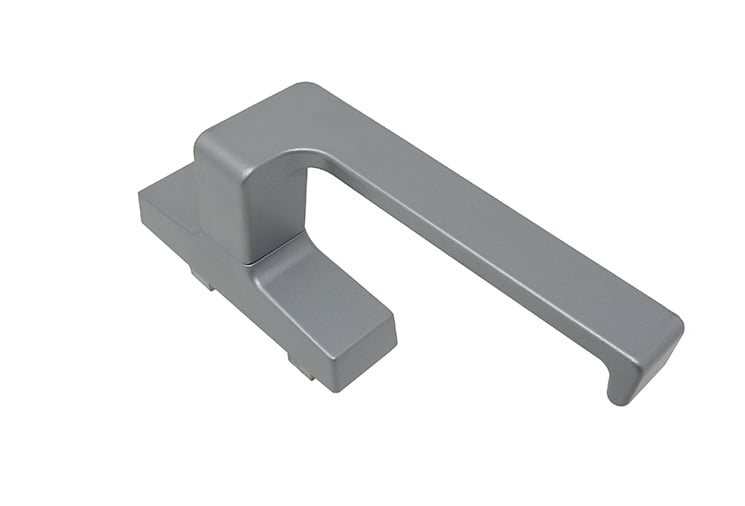

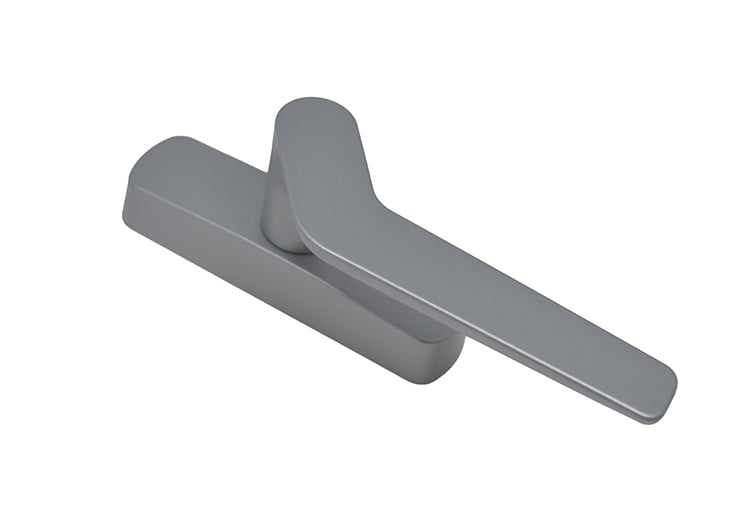

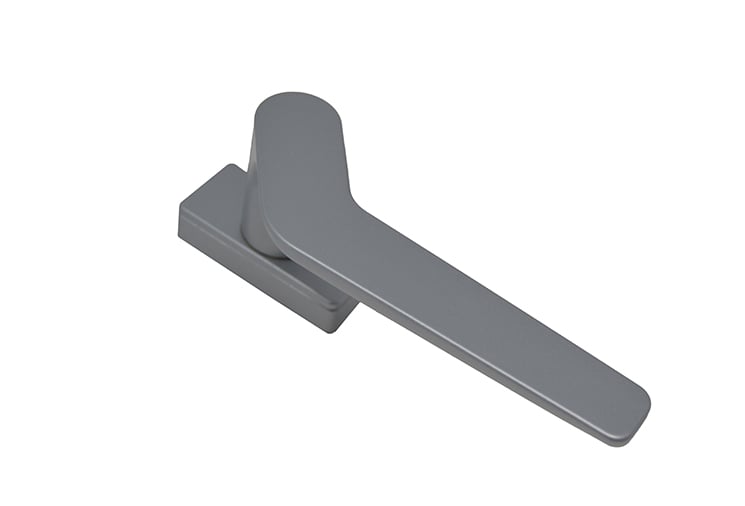

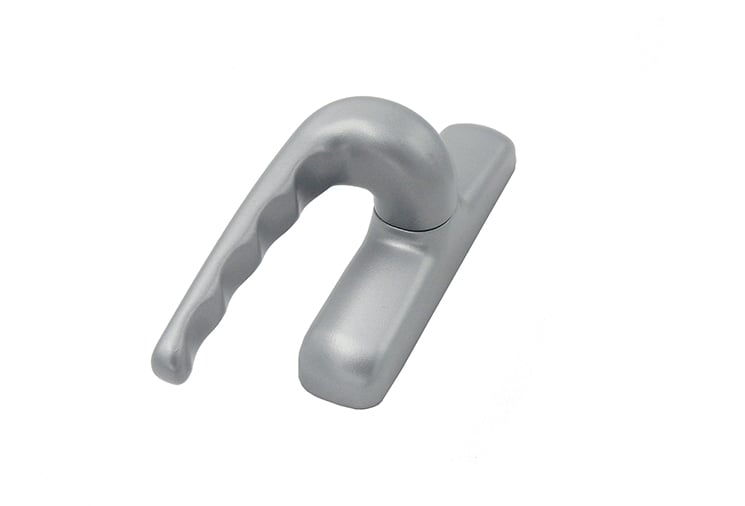

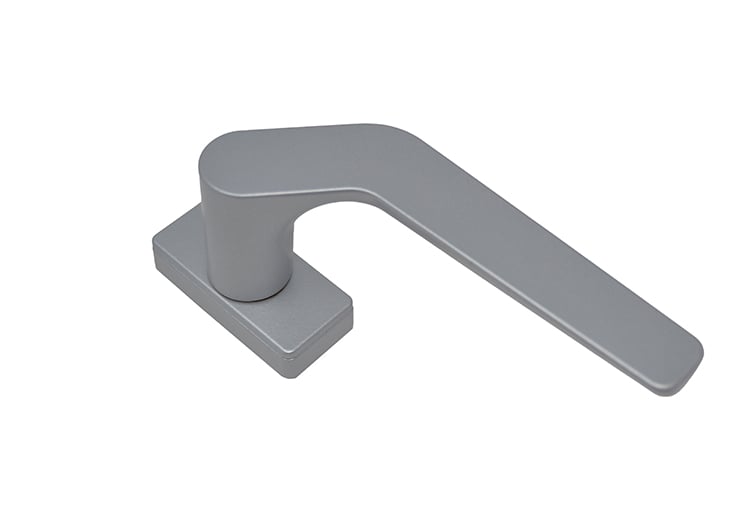

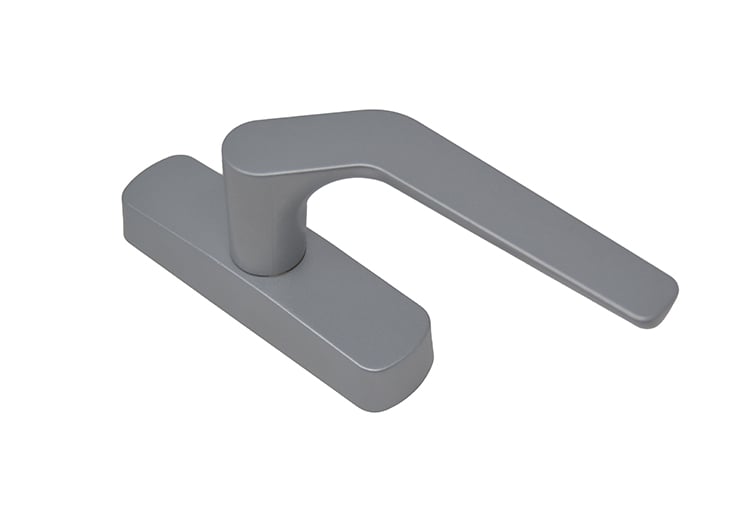

HANDLES
SOLUTION IN HANDLES
Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.
HANDLES
Loading..
satisfactory options
All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
Find the best solution by comparing
Search and compare.
Loading..
You can find the product you need in our comparison section to find high performance and minimum thin profile systems suitable for your projects.
