Compare Our Products

9c4b80eb-8303-4c64-b8cc-305f5e726900

'' SKYLINE ''

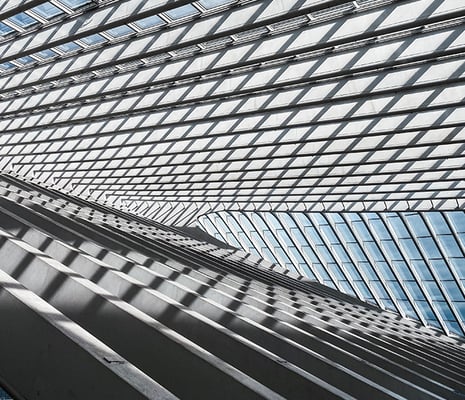

'' SKYLINE '' - SKYLIGHT SYSTEM

Acoustic performance
Rw= 30-60 dB
Air tightness
Up to 600 Pa A4
Wind load resistance
Up to 2000 Pa (EN 13116)
Water tightness
Up to 600 Pa (EN 1027: CLASS 9A)
Thermal insulation
Uw value / to 0,6W/m²K
Overall system depth
Custome design
Glass thickness
8-40mm
Visible width
80 mm
560da815-c1c7-40de-94e8-feb64fe1f500

'' EFFECT 50C''

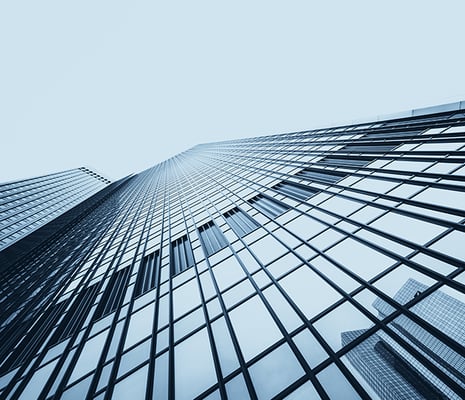

'' EFFECT 50C '' - COVERED FACADE SYSTEM

Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 3000 Pa (EN 13116)
Water tightness
Up to 1500 Pa (EN 1027: CLASS E1500)
Thermal insulation
Uw value down to 0,6W/m²K
Overall system depth
50 - 220 mm
Glass thickness
6 - 50 mm
Visible width
50 mm
3e1baadf-0acd-4056-1199-878c9dd0a800

'' EFFECT 74 ''

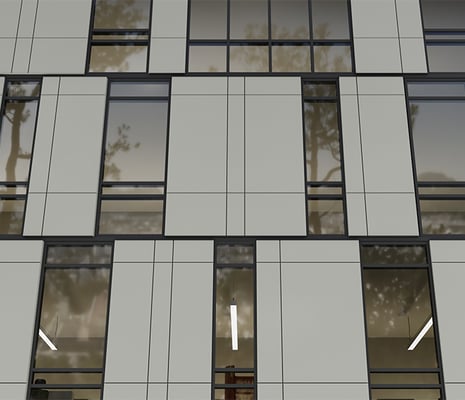

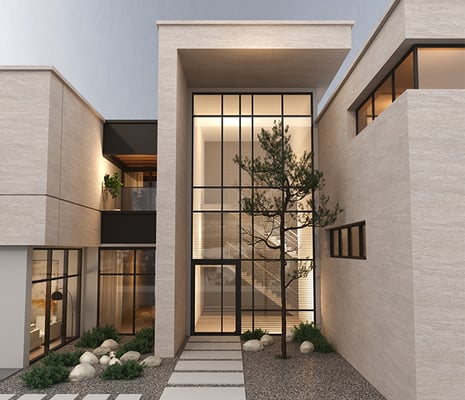

'' EFFECT 74 '' - PANEL FACADE

Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 3000 Pa (EN 13116)
Water tightness
Up to 900 Pa (EN 1027: CLASS E900)
Thermal insulation
Uw value down to 0,6W/m²K
Min. Visible width
Frame/Custome Design
Overall system depth
Frame/Custome Design
Glass thickness
Custome Design
a59668e1-846a-4710-94bd-f08f9d352f00

'' MOVE ART ''

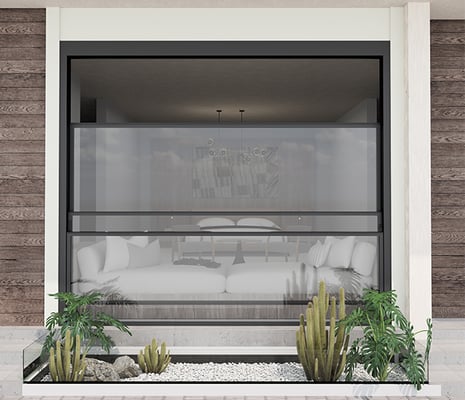

'' MOVE ART ''- MOVE ART SERIES

Min. Visible width
Frame/81mm - Sash/40mm - Top Box 157mm
Overall system depth
Frame/138mm - Sash/31mm
Glass thickness
8-24mm
Max. Sash weight
60kg
Mechanism
08B1 1/2 single row sprocket chain
Engine
220-240V 50Hz 140 Nm economical and high quality tubular motor
Max. Height
4000 mm
Max. Width
4000 mm
fa421c3d-a46e-454d-5179-19182d0d5300

'' XRAIL ''

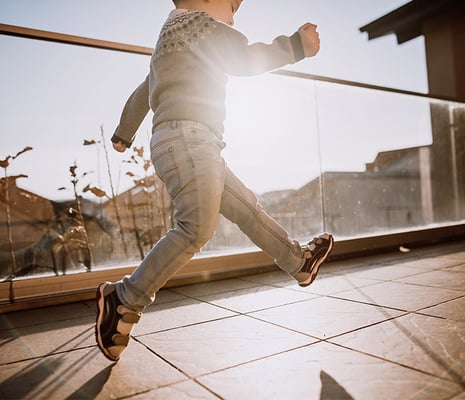

'' XRAIL '' - GLAZING RAILING

Overall system depth
60mm-125mm
Glass thickness
9.14mm-21.52mm
Visible width
90mm
Max. Glass Height
1500mm
0707308c-54e7-4067-6417-21e12f44d900

'' PRACTIC-AL ''

'' PRACTIC-AL ''- LIFT & SLIDE

Acoustic performance
EN ISO 717-1: Rw ( C;Ctr ) = 35 ( -1 ; -3 ) dB
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 1600 Pa (EN 12210: B4)
Water tightness
Up to 600 Pa (EN 12208:CLASS 9A)
Thermal insulation
Uf value down to 2,1 W/m²K
Min. Visible width
Frame/44mm - Sash/85mm
Overall system depth
Frame/60mm - Sash/39mm
Glass thickness
4-25 mm
Max. Sash weight
200 kg
d6a82f6f-e5c9-48cc-92d6-593ab7e21900

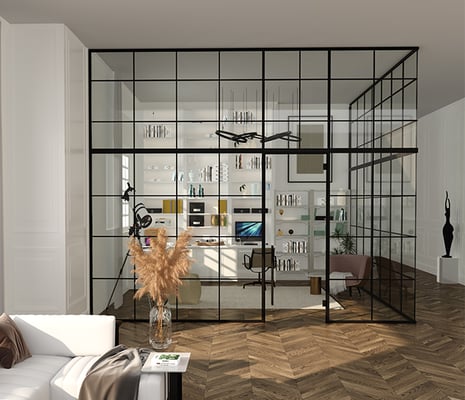

''Synergy 40''

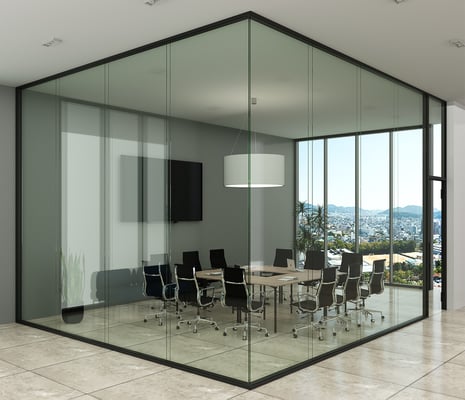

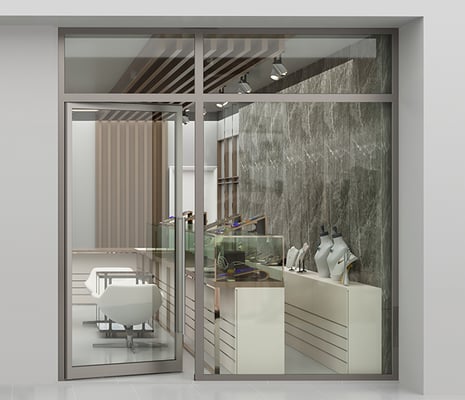

''Synergy 40'' - SINGLE-GLAZED INTERIOR PARTITION

Min. Visible width
Frame/35mm - Sash/20mm
Overall system depth
Frame/40mm - Sash/44mm
Glass thickness
5mm-12,76mm
Sash types
Wooden, Glazing, Sliding, Pivot, Synchronized
a74b83f5-cd49-4f81-40a4-3878c5bafd00

''Synergy 100''

''Synergy 100'' - DOUBLE-GLAZED INTERIOR PARTITION

Min. Visible width
Frame/35mm - Sash/20mm
Overall system depth
Frame/100mm - Sash/44mm
Glass thickness
5mm-12,76mm
Sash types
Wooden, Glazing, Sliding, Pivot, Synchronized
f906130a-9035-4a84-79b9-ca3f9d167200

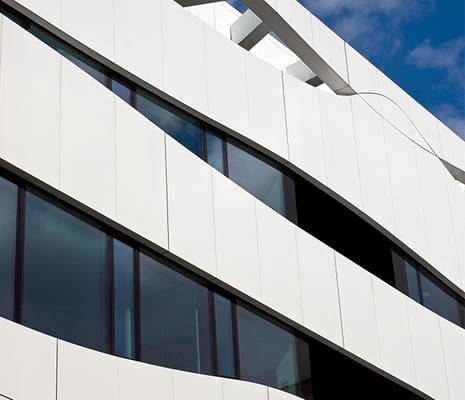

'' EFFECT 50S ''

'' EFFECT 50S '' – SILICON FACADE SYSTEM

Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 3000 Pa (EN 13116)
Water tightness
Up to 1500 Pa (EN 1027: CLASS E1500)
Thermal insulation
Uw value down to 0,6W/m²K
Min. Visible width
50mm
Overall system depth
50-220mm
Glass thickness
6-32mm
13b29a20-72e2-4849-0ccb-5ef2a2e27a00

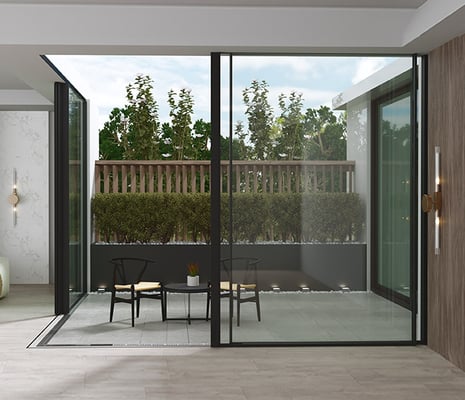

'' VISIONLINE S ''

'' VISIONLINE S '' - MINIMAL SLIDING

Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 1600 Pa (TS EN 12210: CLASS C4)
Water tightness
Up to 450 Pa (TS EN 12208: CLASS 8A)
Thermal insulation
Uf value down to 1W/m²K
Glass thickness
39 mm
Max. weight of manual sash
500 kg
Max. Total weight of motorized sash
1200 kg
Safety wind load resistance up to
1800 Pa (TS EN 12210: CLASS C4)
2fc0bd53-2bcf-4ac0-be9f-d437b6a46e00

'' VISIONLINE ''

'' VISIONLINE '' - MINIMAL SLIDING

Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 1200 Pa (TS EN 12210: CLASS C4)
Water tightness
Up to 450 Pa (TS EN 12208: CLASS 8A)
Thermal insulation
Uf value down to 1W/m²K
Glass thickness
39 mm
Max. weight of manual sash
350 kg
Max. Total weight of motorized sash
1200 kg
Safety wind load resistance up to
1800 Pa (TS EN 12210: CLASS C4)
68986c14-012a-43a2-25b0-1c88aee51a00

'' EFFECT 60S ''

'' EFFECT 60S '' – SILICON FACADE SYSTEM

Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 2000 Pa (EN 13116)
Water tightness
Up to 1500 Pa (EN 1027: CLASS E1500)
Thermal insulation
Uw value down to 0,6W/m²K
Overall system depth
50-220 mm
Glass thickness
6-55 mm
Visible width
60 mm
Safety wind load resistance up to
Up to 3000 Pa (EN 13116)
c6340779-669b-45e8-e9cf-9e82b23d4e00

'' SOFTLIGHT ''

'' SOFTLIGHT '' - SUN SHADER

14dc09f8-f6ab-4ac9-03fb-aff07e5f1f00

'' VISUALL''

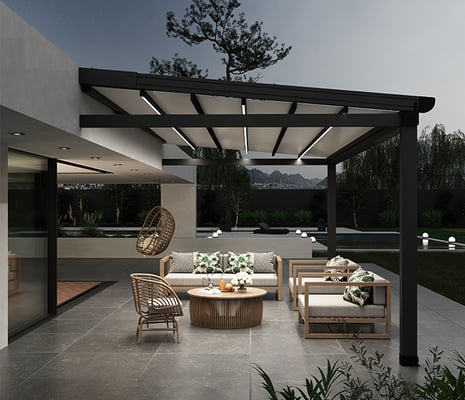

'' VISUALL'' - RETRACTABLE PERGOLA SYSTEM

95b5c1dc-e1ea-4568-deca-98efb4597d00

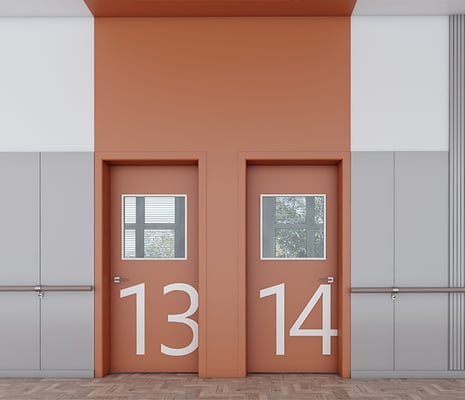

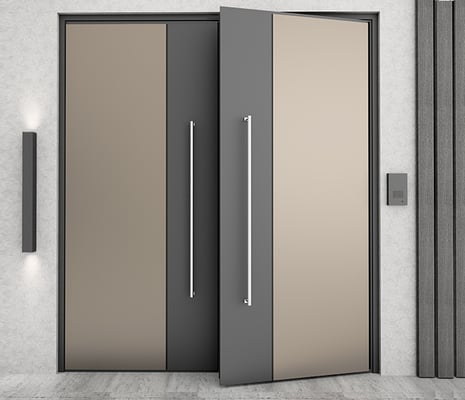

“ DD SERIES - PANEL DOOR ”

“ DD SERIES ” - PANEL DOOR

Acoustic performance
Rw= 40-50 dB
Air tightness
Up to 450 Pa (CLASS 3)
Wind load resistance
Up to 2000 Pa (EN 12210: C5)
Water tightness
Up to 450 Pa (EN 12208: CLASS 8A)
Thermal insulation
UW value down to 0,9W/m²K
Min. Visible width
35mm
Overall system depth
86mm
Glass thickness
30mm-63mm
Max. Weight
300 kg
f50e981d-38f2-4aff-aecc-373b63c1e900

'' LINEUP ''

'' LINEUP '' - MULTI-RAIL

Min. Visible width
Frame/34mm - Sash/25mm
Overall system depth
Frame/62-164mm - Sash/23,5mm
Glass thickness
6-20mm
Max. Sash weight
150kg
fe267b6e-60da-465b-9550-0dd57b7ed500

'' EFFECT 60C''

'' EFFECT 60C '' - COVERED FACADE SYSTEM

Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 2000 Pa (EN 13116)
Water tightness
Up to 1500 Pa (EN 1027: CLASS E1500)
Thermal insulation
Uw value down to 0,6W/m²K
Overall system depth
50 - 220mm
Glass thickness
6 - 55mm
Visible width
60mm
Safety wind load resistance up to
Up to 3000 Pa (EN 13116)
848d3a71-3d95-4313-4471-e5cd04037600

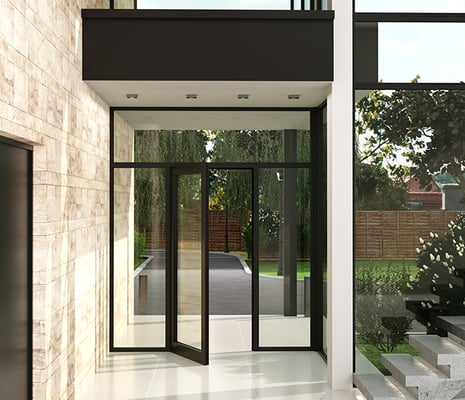

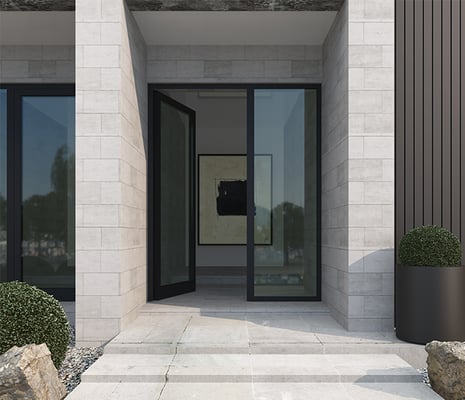

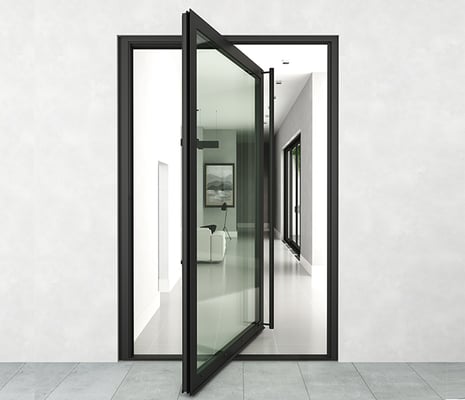

“ DD SERIES - PIVOT DOOR

“ DD SERIES - PIVOT DOOR

Acoustic performance
Rw= 40-50
Air tightness
Up to 450 Pa (CLASS 3)
Wind load resistance
Up to 2000 Pa (EN 12210: C5)
Water tightness
Up to 300 Pa (EN 12208: CLASS 7A)
Thermal insulation
Uf value down to 0,9 W/m²K
Min. Visible width
Frame/35mm - Sash/51mm
Overall system depth
Frame/86mm - Sash/83mm
Glass thickness
30mm-65mm
Max. Weight
500 kg
085aceb4-622d-4e04-3248-52643ce14e00

'' SEASON 55 ''

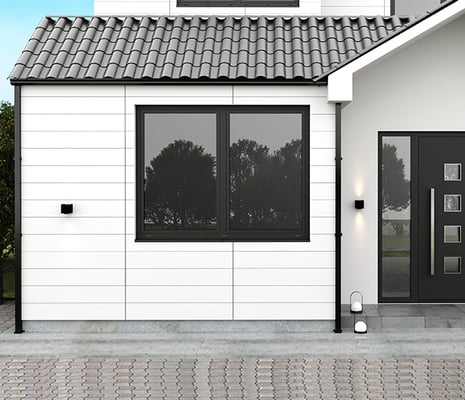

'' SEASON 55 '' - UNINSULATED WINDOW

Acoustic performance
Rw= 30-36 dB
Air tightness
Up to 450 Pa (CLASS 3)
Wind load resistance
Up to 1600 Pa (TS EN 12210: CLASS C4)
Water tightness
Up to 450 Pa (EN 12208: 8A)
Min. Visible width
Frame/48mm - Sash/36mm
Overall system depth
Frame/55mm - Sash/58mm
Glass thickness
4mm-40mm
5092acb0-6185-4c37-6f9f-98991abef600

'' GATIO 60 ''

'' GATIO 60 '' - INSULATED DOOR

Acoustic performance
Rw= 40-46 dB
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 2000 Pa (EN 12210:C5)
Water tightness
Up to 600 Pa (EN 12208: CLASS 9A)
Thermal insulation
UW value down to 1,4W/m²K
Min. Visible width
Frame/60mm - Sash/69mm
Overall system depth
Frame/60mm - Sash/69mm
Glass thickness
11mm-43mm
5aa6b36a-4998-4823-8ec6-bb8f9df20900

'' POWER- X ''

'' POWER- X '' - ECO SLIDE

Acoustic performance
Rw= 42-50 dB
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 2400 Pa (TS EN 12210 : C5)
Water tightness
Up to 1200 Pa (EN 12208:E1200)
Thermal insulation
Uf value down 1,8W/m²K
Min. Visible width
Frame/27mm - Sash/93mm
Overall system depth
Frame/140mm - Sash/75mm
Glass thickness
19-45 mm
Max. Sash weight
20 - 400 kg
e0f2d1ac-d436-43ba-c2b4-d34a4ef35e00

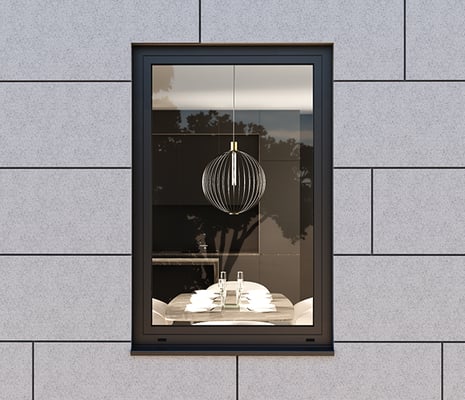

'' SEASON 60 ''

'' SEASON 60 '' - INSULATED WINDOW

Acoustic performance
EN ISO 717-1: Rw ( C;Ctr ) = 42 ( -1 ; -3 ) dB
Air tightness
Up to600 Pa (CLASS 4)
Wind load resistance
Up to 2400 Pa (TS EN 12210: CLASS C4)
Water tightness
Up to 1500 Pa (EN 12208:E1500)
Thermal insulation
UW value down to 1,4W/m²K
Min. Visible width
Frame/50mm - Sash/36mm
Overall system depth
Frame/60mm - Sash/69mm
Glass thickness
11mm-43mm
8186803e-4d46-40e3-9d6e-c9f6f6384a00

'' GATIO 70 ''

'' GATIO 70 '' - INSULATED DOOR

Acoustic performance
Rw= 40-46 dB
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 2000 Pa (TS EN 12210:C5)
Water tightness
Up to 600 Pa (EN 12208:CLASS 9A)
Thermal insulation
UW value down to 1 W/m²K
Min. Visible width
Frame/50mm - Sash/76mm
Overall system depth
Frame/70mm - Sash/79mm
Glass thickness
12mm-54mm
f1f202b1-8989-42bf-abe6-64e551c48000

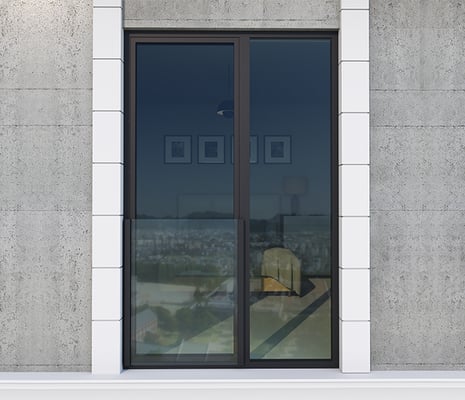

'' XRAIL 40 ''

'' XRAIL 40 '' - INTEGRATED RAILING

Overall system depth
40mm
Glass thickness
4mm-19mm
Visible width
40mm
Max. Glass Height
1500mm
Max. Glass Widtht
1500mm
4e86edc1-6e93-449f-ac52-048008efff00

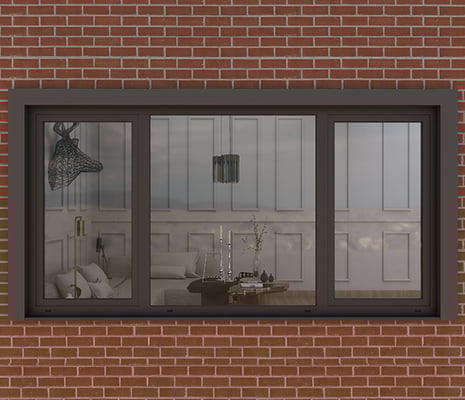

'' SEASON 70 ''

'' SEASON 70 '' - INSULATED WINDOW

Acoustic performance
EN ISO 717-1: Rw ( C;Ctr ) = 42 ( -1 ; -4 ) dB
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 2400 Pa (TS EN 12210: C5)
Water tightness
Up to 1200 Pa (EN 12208:CLASS E1200)
Thermal insulation
UW value down to 1 W/m²K
Min. Visible width
Frame/50mm - Sash/36mm
Overall system depth
Frame/70mm - Sash/79mm
Glass thickness
12mm-54mm
93f47121-064a-473c-4c9f-c5de0dc39a00

'' FLEXAL ''

'' FLEXAL '' - ADJUSTABLE DOOR

Min. Visible width
Frame/75mm - Sash/78mm
Overall system depth
Frame/110mm-255mm
Glass thickness
4-40mm
Wall thickness
90mm-400mm
Vent thickness
40-42mm
57777def-b598-4886-9c84-93b1a5ffab00

“PANORAMA”

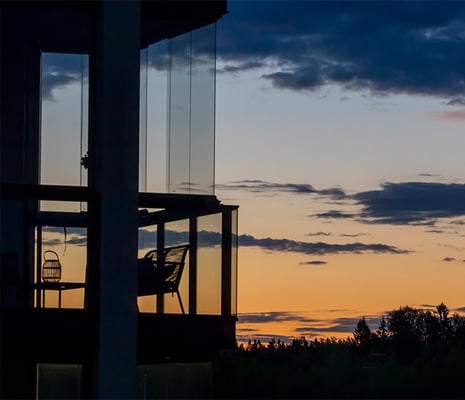

“PANORAMA” - GLASS BALCONY SYSTEM

Min. Visible width
Frame/29mm - Sash/15mm
Overall system depth
Frame/39mm - Sash/39mm
Glass thickness
8-28 mm
Max. Sash weight
70 kg
Max. Height
2500 mm
Max. Sash
8 Sash (7+1)
Max. Width
800 mm
e4fed075-a405-488c-04a6-40703b58ff00

'' GATIO 55 ''

'' GATIO 55 '' - UNINSULATED DOOR

Acoustic performance
Rw= 30-34 dB
Air tightness
Up to 300 Pa (CLASS 2)
Wind load resistance
Up to 1600 Pa (EN 12210: CLASS C4)
Water tightness
Up to 300 Pa (EN 12208: CLASS 7A
Min. Visible width
Frame/48mm - Sash/66mm
Overall system depth
Frame/55mm - Sash/58mm
Glass thickness
4mm-40mm
b97d4077-76cd-4b69-a590-807ba7d31700

'' ORIGAMI ''

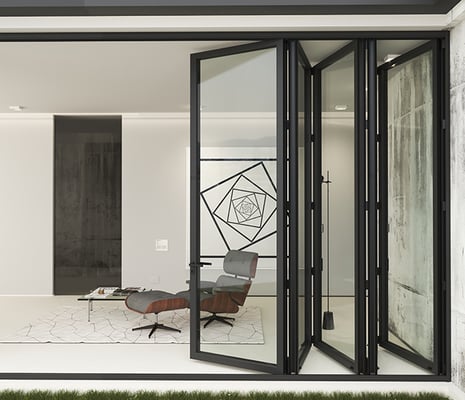

'' ORIGAMI '' - FOLDING DOOR

Acoustic performance
Rw= 36-42 dB
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 600 Pa (EN 12210: C2)
Water tightness
Up to 250 Pa (EN 12208: 6A)
Thermal insulation
UW value down to 1.2 W/m²K
Min. Visible width
Frame/28mm - Sash/42mm
Overall system depth
Frame/77mm - Sash/77mm
Glass thickness
16mm-49mm
Alufour Vision of Excellence
Home
Groups
Main Products
About Us
Copyright Alufour.com.tr © 2022 All rights reserverd.
Cevizli Mah. Zuhal Cad. No:46/1 Ritim
+90 216 504 0830
info@alufour.com.tr
