Specifications
Thermal insulation
Uf value down to 1W/m²K
Water tightness
Up to 450 Pa (TS EN 12208: CLASS 8A)
Air tightness
Up to 600 Pa (CLASS 4)
Wind load resistance
Up to 1200 Pa (TS EN 12210: CLASS C4)
Glass thickness
39 mm
Max. weight of manual sash
350 kg
Max. Total weight of motorized sash
1200 kg
Safety wind load resistance up to
1800 Pa (TS EN 12210: CLASS C4)
Note: Performances may be different depending on the profile combinations.
DESIGN
"Minimalistic frames optimal vistas!..."
'' VISIONLINE ''
Available in multiple opening types and configurations.
DOWNLOAD
You can download brochures and documents related to the specific system you need in your projects from here.
To download and discover all Alufour Systems products you can look our download page.

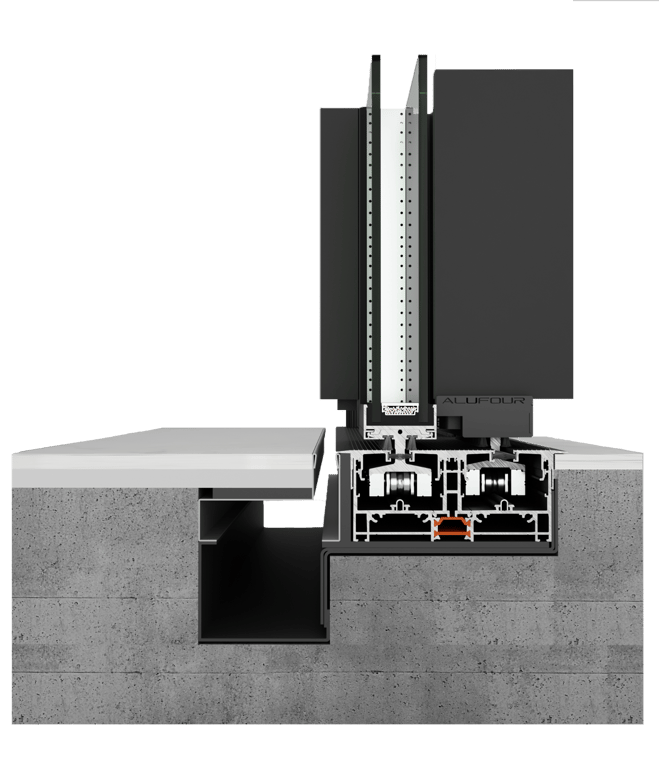

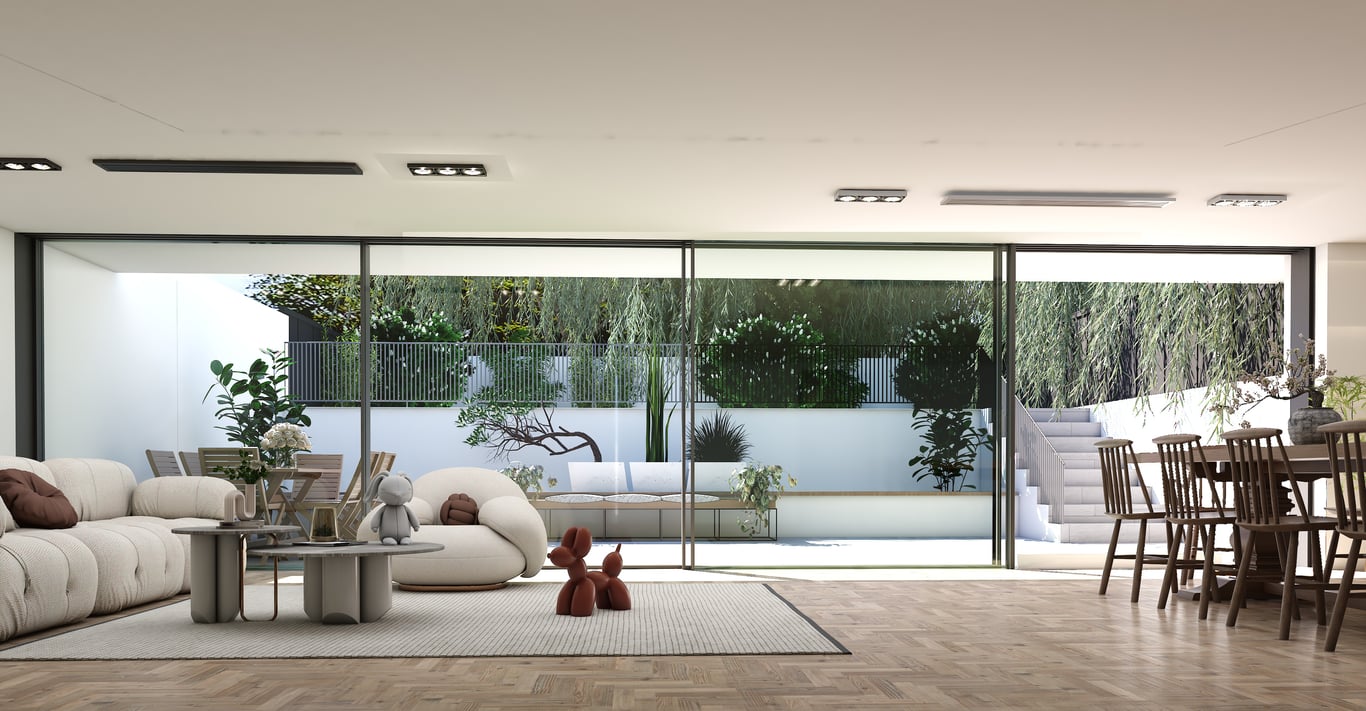

To obtain an unobstructed view, the "VISIONLINE" minimal sliding system has been designed with several threshold types and different rail options.

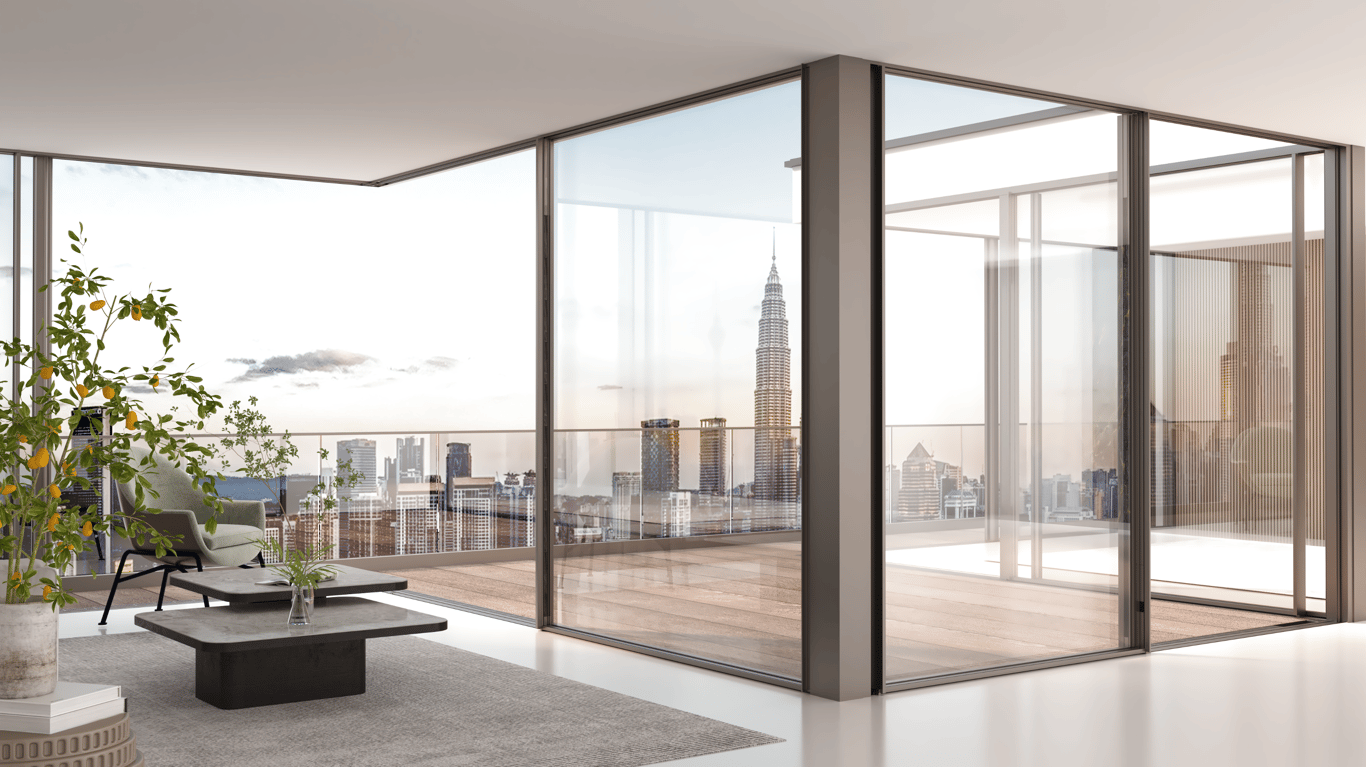

"VISIONLINE" minimal system threshold variants are divided into closed frame, wall pocket detail and corner detail. In this system, our rail options are divided into two rails,three rails, four rails and five rails.
Our various frames can be used in different rail options.

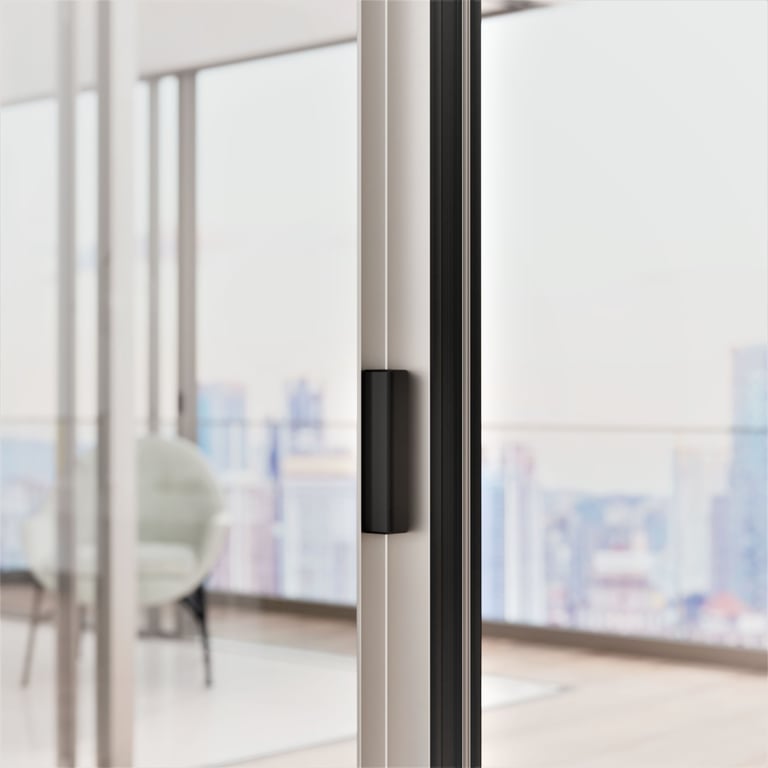

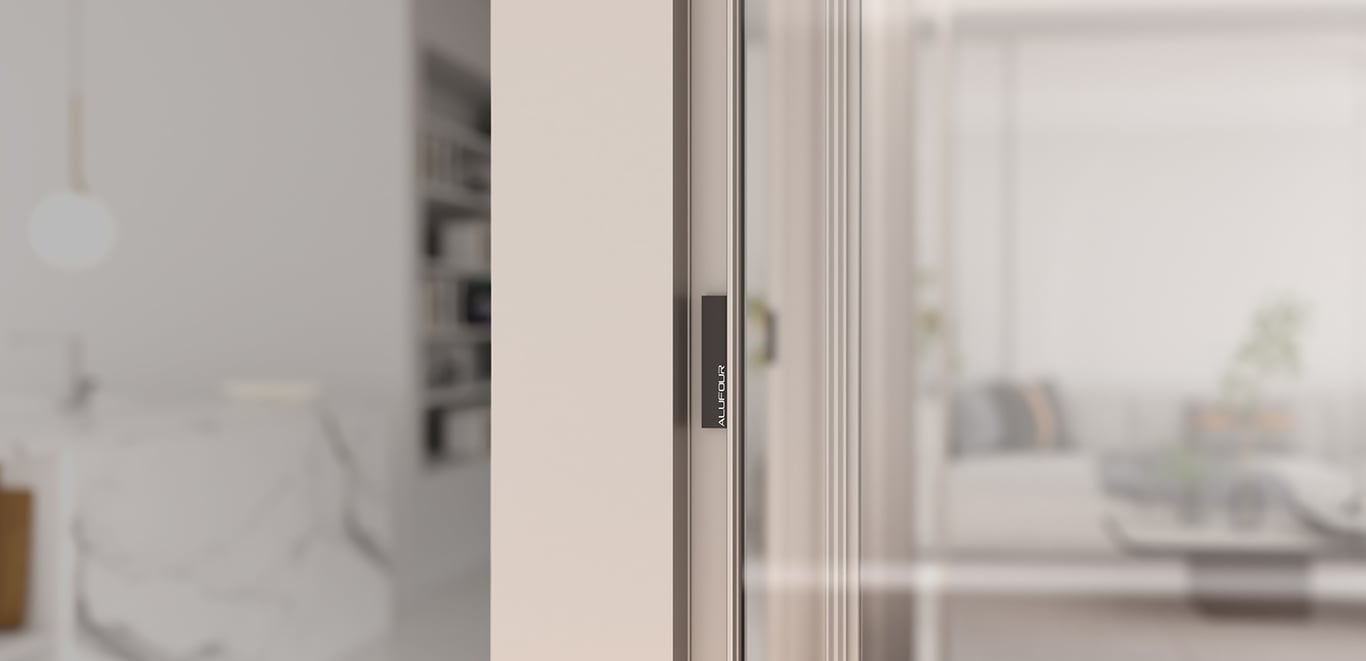

SOLUTION IN HANDLES
Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.
Find the best solution by comparing
