Movable Systems > '' MOVE ART '' ('' MOVE ART ''- MOVE ART SERIES)
'' MOVE ART ''
'' SOFTLIGHT ''
'' VISUALL''
'' MOVE ART ''
Specifications
Min. Visible width
Frame/81mm - Sash/40mm - Top Box 157mm
Max. Sash weight
60kg
Mechanism
08B1 1/2 single row sprocket chain
Engine
220-240V 50Hz 140 Nm economical and high quality tubular motor
Glass thickness
8-24mm
Overall system depth
Frame/138mm - Sash/31mm
Max. Height
4000 mm
Max. Width
4000 mm
Note: Performances may be different depending on the profile combinations.
DESIGN
‘’No view blockage’’
'' MOVE ART ''

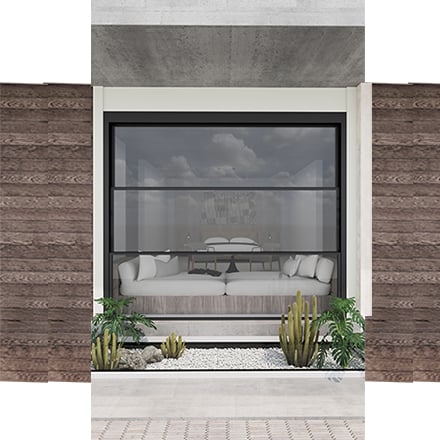

Motorized vertical sliding system from Alufour AS.VS.138 series; It is a sliding system that works with a control on the vertical axis. By creating wide usage areas due to its vertical operation, it also creates the desired effect in the field of natural ventilation and vision. This system, can be manufactured with single glass or heat double glass and it offers optimum performance in thermal insulation, solar gain and transparency.Motorized vertical system can be designed according to the project and configuration of your building and makes a great addition to any contemporary architectural design.
OPENING TYPES
Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.
Available in multiple opening types and configurations.
DOWNLOAD
You can download brochures and documents related to the specific system you need in your projects from here.
To download and discover all Alufour Systems products you can look our download page.
VARIANTS
Move-Art Motorized system moving in the vertical direction, can be designed with two sash or three sash according to the customer's projects and needs.
Loading..
Find the best solution by comparing
Search and compare.
Loading..
You can find the product you need in our comparison section to find high performance and minimum thin profile systems suitable for your projects.
