Facade & Skylight > '' SKYLINE '' ('' SKYLINE '' - SKYLIGHT SYSTEM )
'' SKYLINE ''
'' EFFECT 50C''
'' EFFECT 74 ''
'' EFFECT 50S ''
'' SKYLINE ''
Specifications
Thermal insulation
Uw value / to 0,6W/m²K
Water tightness
Up to 600 Pa (EN 1027: CLASS 9A)
Acoustic performance
Rw= 30-60 dB
Air tightness
Up to 600 Pa A4
Wind load resistance
Up to 2000 Pa (EN 13116)
Visible width
80 mm
Glass thickness
8-40mm
Overall system depth
Custome design
Note: Performances may be different depending on the profile combinations.
DESIGN
‘’Correct application provides comfort and good view’’
'' SKYLINE ''

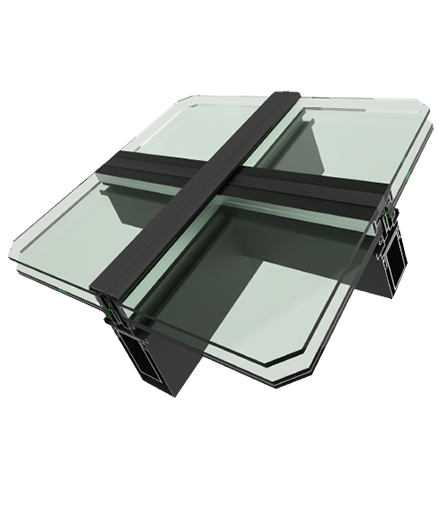

AS.SKY.800 skylight system, one of the Alufour system series, is designed to be resistant to summer and winter weather conditions in modern architectural structures. Skylight roof systems consist of vertical and horizontal aluminum skylight profiles suitable for the architectural project, insulating glass is mounted on the profiles in accordance with the heat insulation value, color and thickness. It provides elegance and comfort with its applicability on different angled surfaces.
Maximum illumination ...
It makes it possible to make natural lighting, maximum use of daylight and to save energy in buildings.
Available in multiple opening types and configurations.
DOWNLOAD
You can download brochures and documents related to the specific system you need in your projects from here.
To download and discover all Alufour Systems products you can look our download page.
Find the best solution by comparing
Search and compare.
Loading..
You can find the product you need in our comparison section to find high performance and minimum thin profile systems suitable for your projects.
