Specifications
Min. Visible width
Frame/Custome Design
Thermal insulation
Uw value down to 0,6W/m²K
Water tightness
Up to 900 Pa (EN 1027: CLASS E900)
Acoustic performance
Rw= 30-60 dB
Air tightness
Up to AE 750 Pa
Wind load resistance
Up to 3000 Pa (EN 13116)
Glass thickness
Custome Design
Overall system depth
Frame/Custome Design
Note: Performances may be different depending on the profile combinations.
DESIGN
‘’High performance facade system’’
'' EFFECT 74 ''

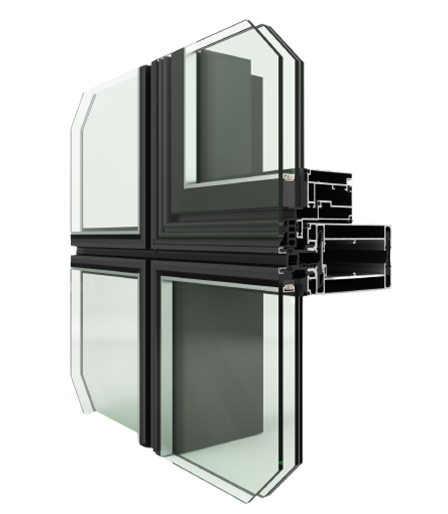

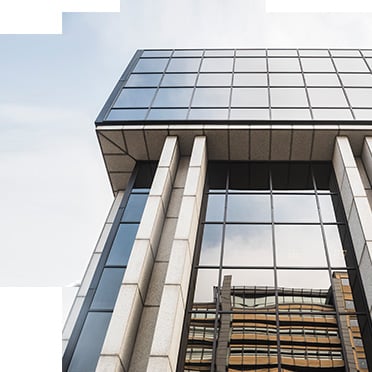

AS.USG.740 panel facade system is a modular facade system that provides the highest level of structural performance as well as the advantage of easy and fast assembly. It provides safe natural ventilation, aesthetics and comfort on high floors with its reverse transom and parallel opening facade wing according to demand.

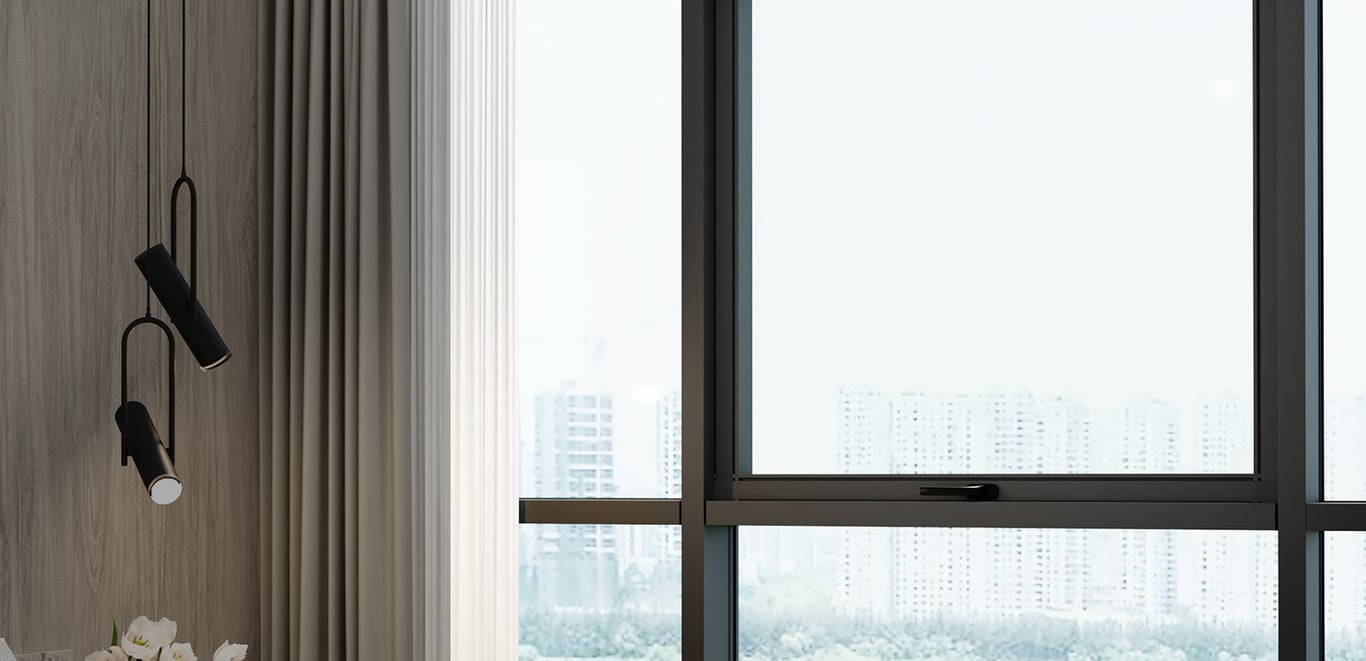

OPENING TYPES
Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.
Available in multiple opening types and configurations.
DOWNLOAD

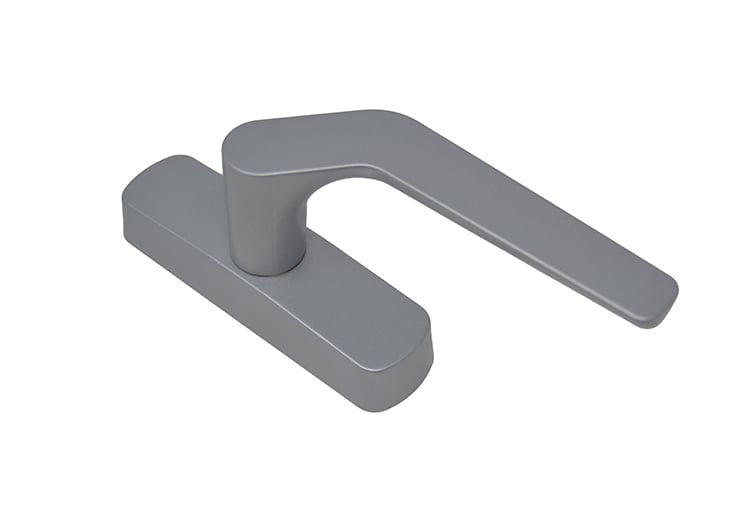

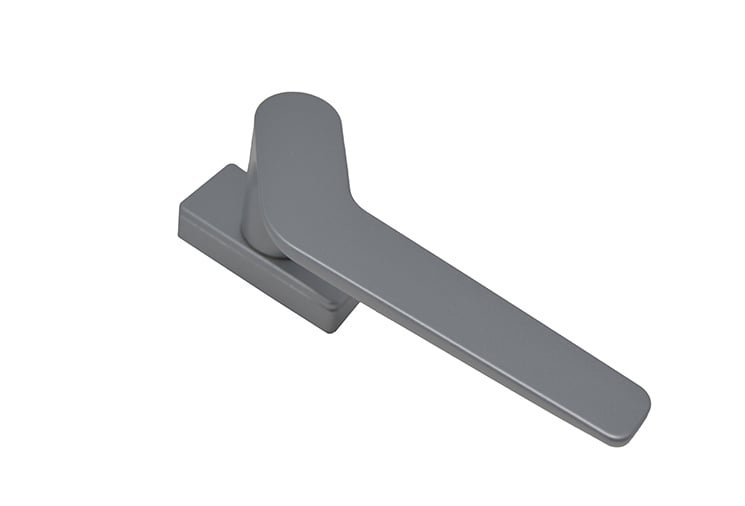

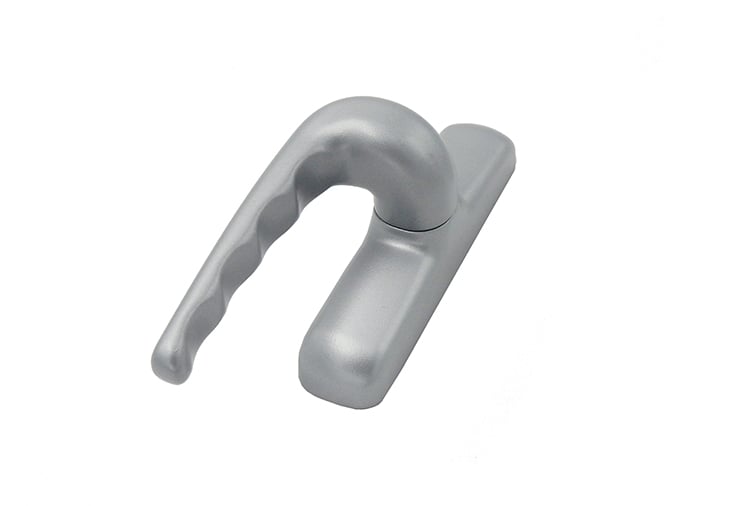

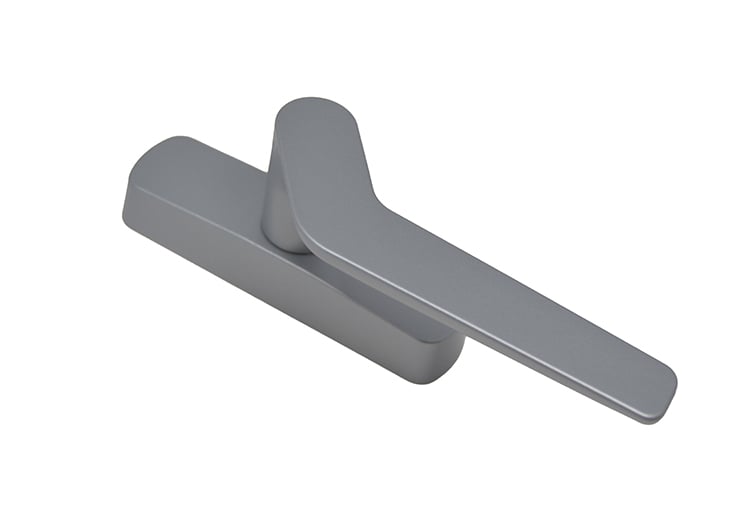

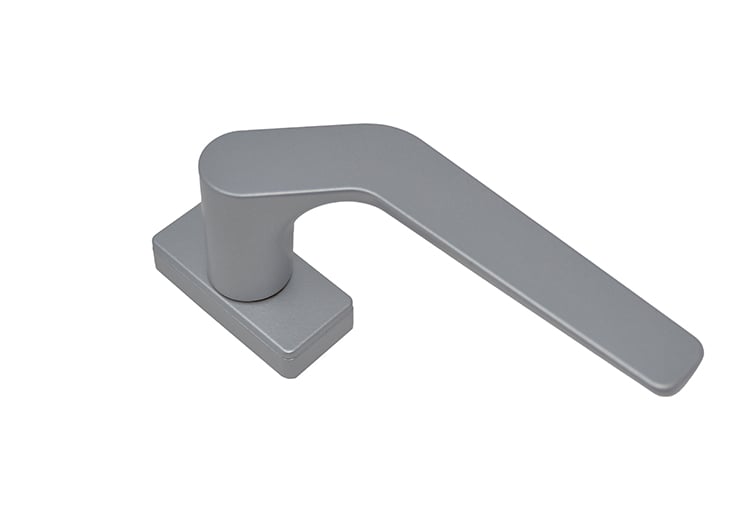

HANDLES
SOLUTION IN HANDLES
Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.
HANDLES
Loading..
satisfactory options
All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
Find the best solution by comparing
Search and compare.
Loading..
You can find the product you need in our comparison section to find high performance and minimum thin profile systems suitable for your projects.
