Facade & Skylight > '' EFFECT 50C'' ('' EFFECT 50C '' - COVERED FACADE SYSTEM )

'' SKYLINE ''

'' EFFECT 50C''

'' EFFECT 74 ''

'' EFFECT 50S ''

'' EFFECT 50C''

Specifications

Thermal insulation

Uw value down to 0,6W/m²K

Water tightness

Up to 1500 Pa (EN 1027: CLASS E1500)

Acoustic performance

Rw= 30-60 dB

Air tightness

Up to AE 750 Pa

Wind load resistance

Up to 3000 Pa (EN 13116)

Visible width

50 mm

Glass thickness

6 - 50 mm

Overall system depth

50 - 220 mm

Note: Performances may be different depending on the profile combinations.

DESIGN

‘’...reliable, durable, high quality, high performance,’’

'' EFFECT 50C''

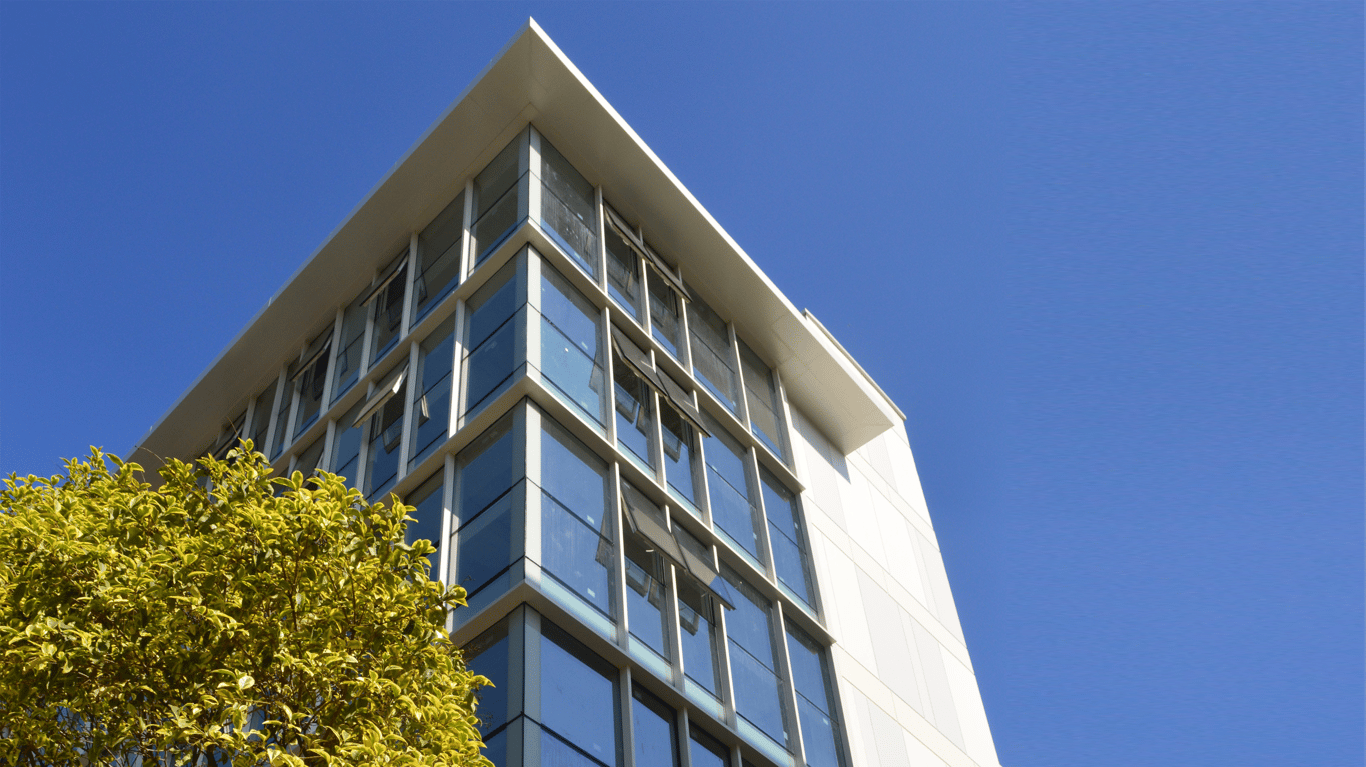

AS.CF.500 covered facade system, one of the Alufour system series,is a system that can be used with cover or half cover by fulfilling project requirements. Covered facade systems are a reliable, durable, pleasant-looking system with horizontal and vertical lines, formed by the combination of aluminum and glass. This system works in harmony with other systems and offers optimum detail options.

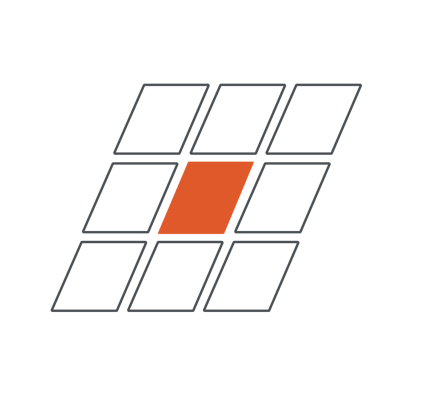

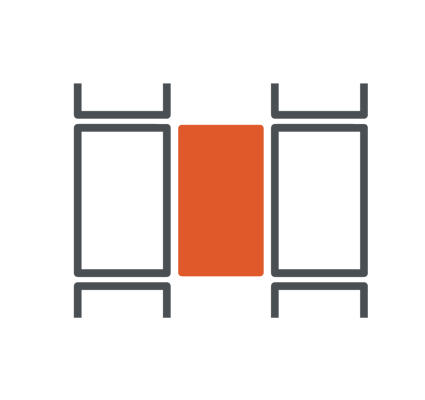

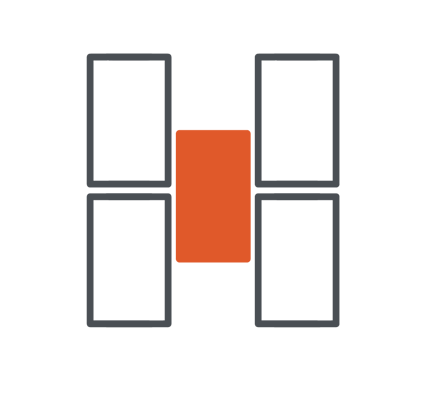

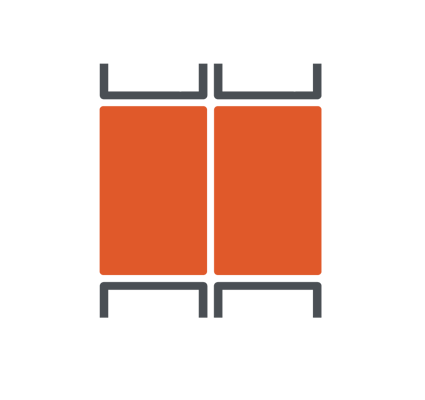

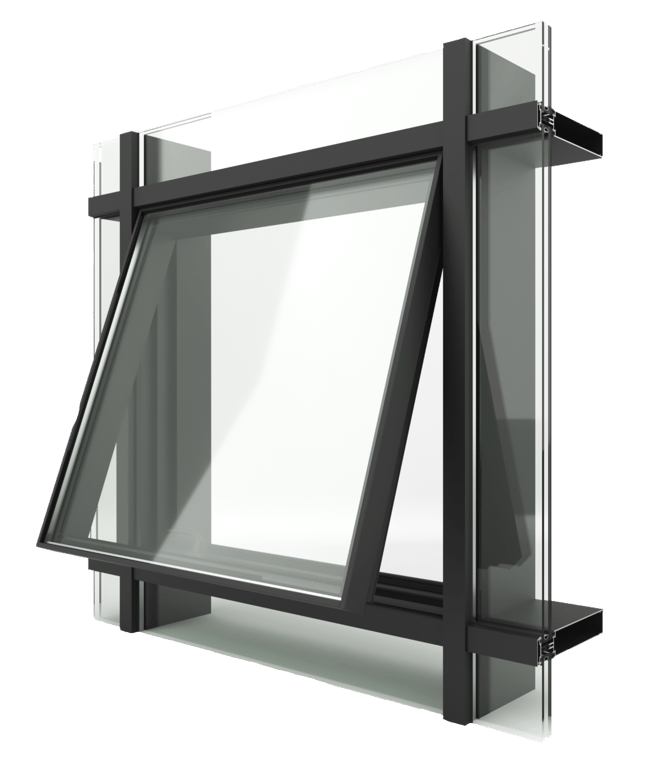

OPENING TYPES

Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.

Available in multiple opening types and configurations.

SLIKON-PANEL-KAPAKLI CEPHE SİSTEMİ/1.jpg

SLIKON-PANEL-KAPAKLI CEPHE SİSTEMİ/2.jpg

DOWNLOAD

You can download brochures and documents related to the specific system you need in your projects from here.

To download and discover all Alufour Systems products you can look our download page.

INSPIRE

VARIANTS

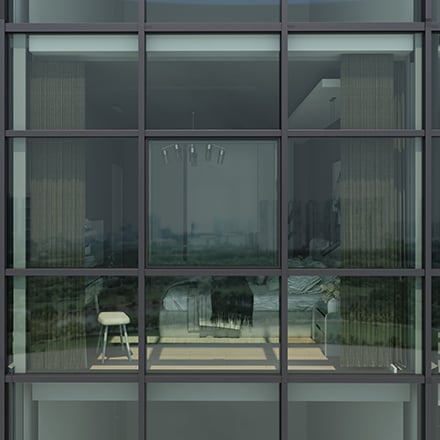

The system offers the opportunity to easily provide the desired visuality by using various cover forms.

The Covered Facade System can be designed as a covered and half-covered.

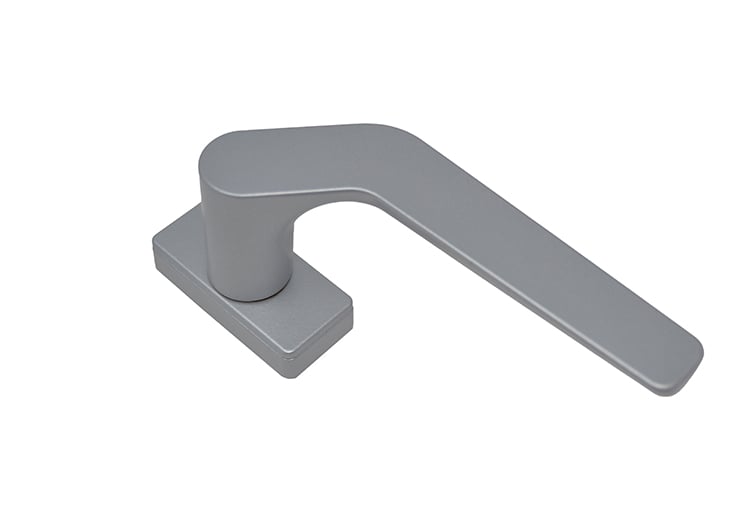

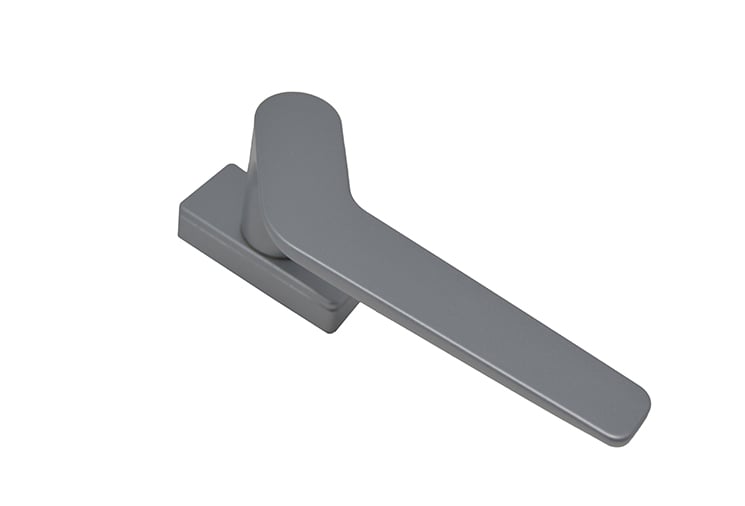

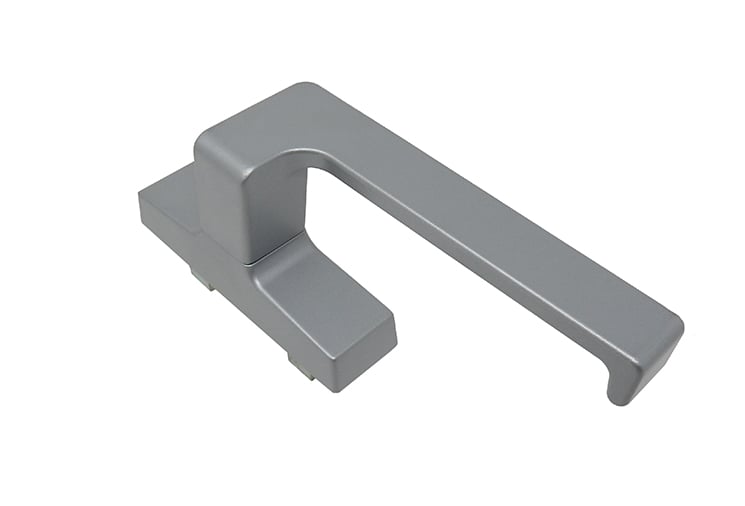

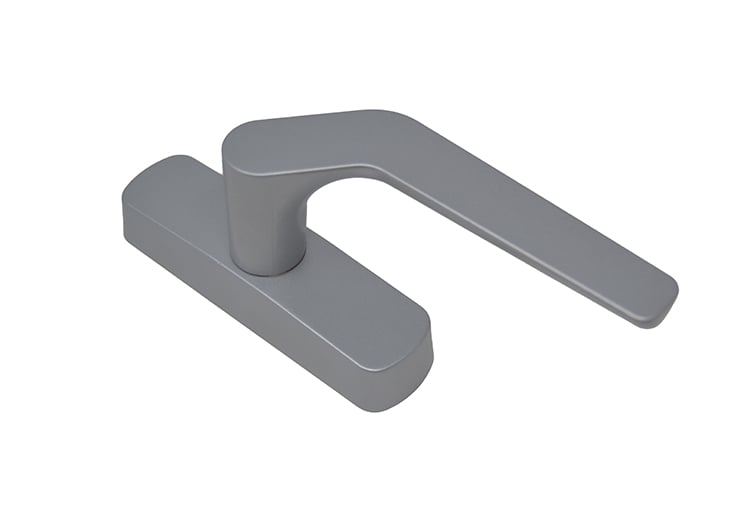

HANDLES

SOLUTION IN HANDLES

Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.

Compare Products

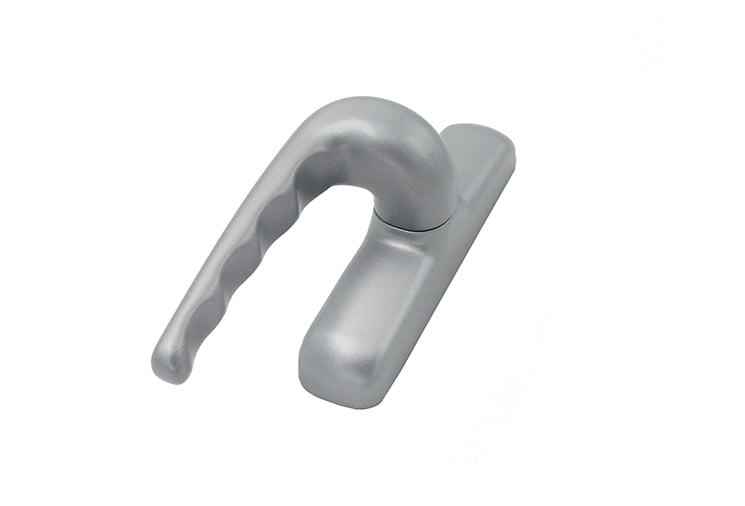

HANDLES

satisfactory options6

All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
