Specifications

Min. Visible width

Frame/44mm - Sash/85mm

Thermal insulation

Uf value down to 2,1 W/m²K

Water tightness

Up to 600 Pa (EN 12208:CLASS 9A)

Max. Sash weight

200 kg

Acoustic performance

EN ISO 717-1: Rw ( C;Ctr ) = 35 ( -1 ; -3 ) dB

Air tightness

Up to 600 Pa (CLASS 4)

Wind load resistance

Up to 1600 Pa (EN 12210: B4)

Glass thickness

4-25 mm

Overall system depth

Frame/60mm - Sash/39mm

Note: Performances may be different depending on the profile combinations.

DESIGN

‘’The elegant connection between inside and outside’’

'' PRACTIC-AL ''

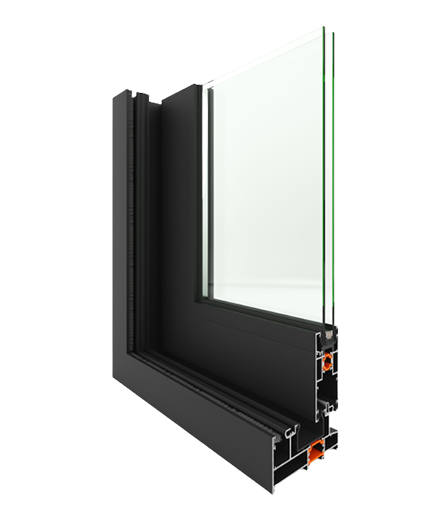

AS.LS.600 is a sliding series that provides the desired expansions in projects with its normal sliding and Lift&Slide mechanism options. It is a system designed for standard sized panels and solved more economically without sacrificing performance. With its minimal profile sections and different rail options, it meets the requirements demanded in the projects at the optimum level.

OPENING TYPES

Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.

Available in multiple opening types and configurations.

DOWNLOAD

You can download brochures and documents related to the specific system you need in your projects from here.

To download and discover all Alufour Systems products you can look our download page.

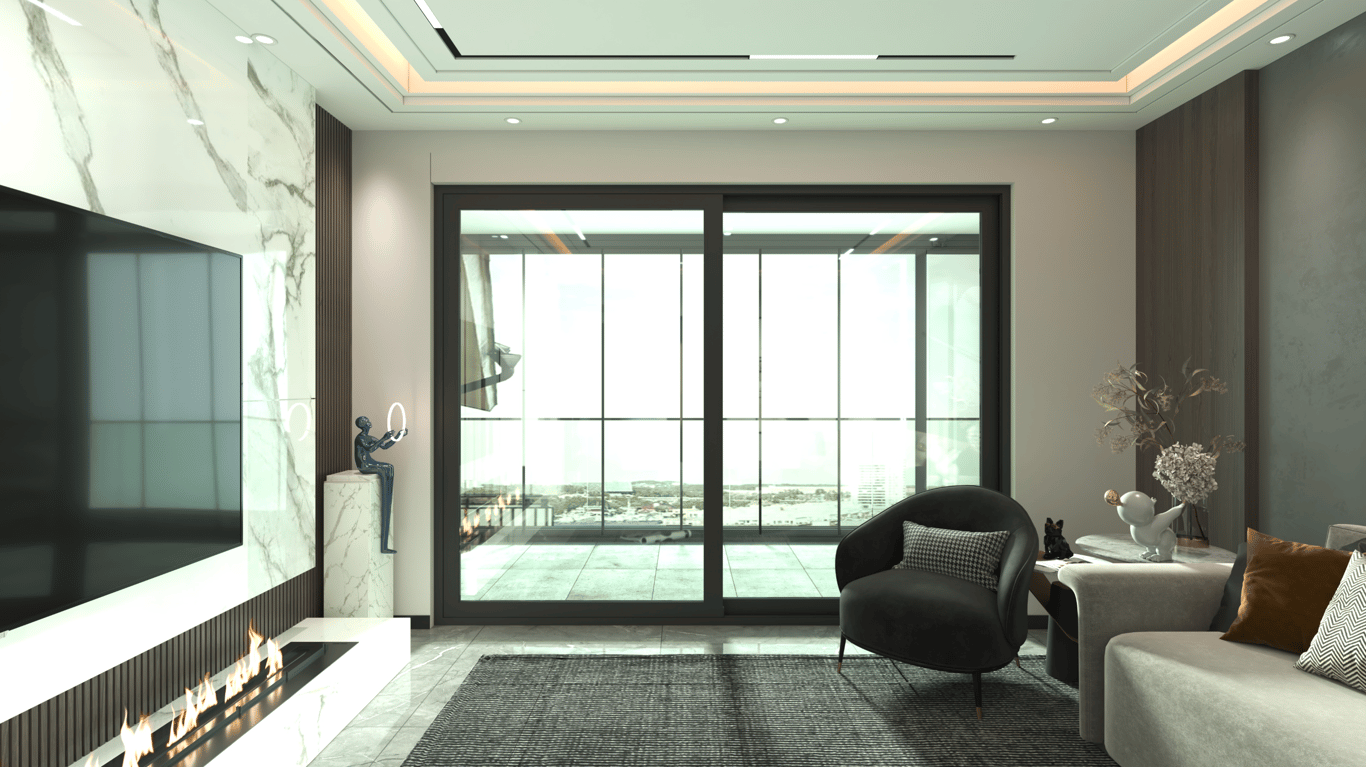

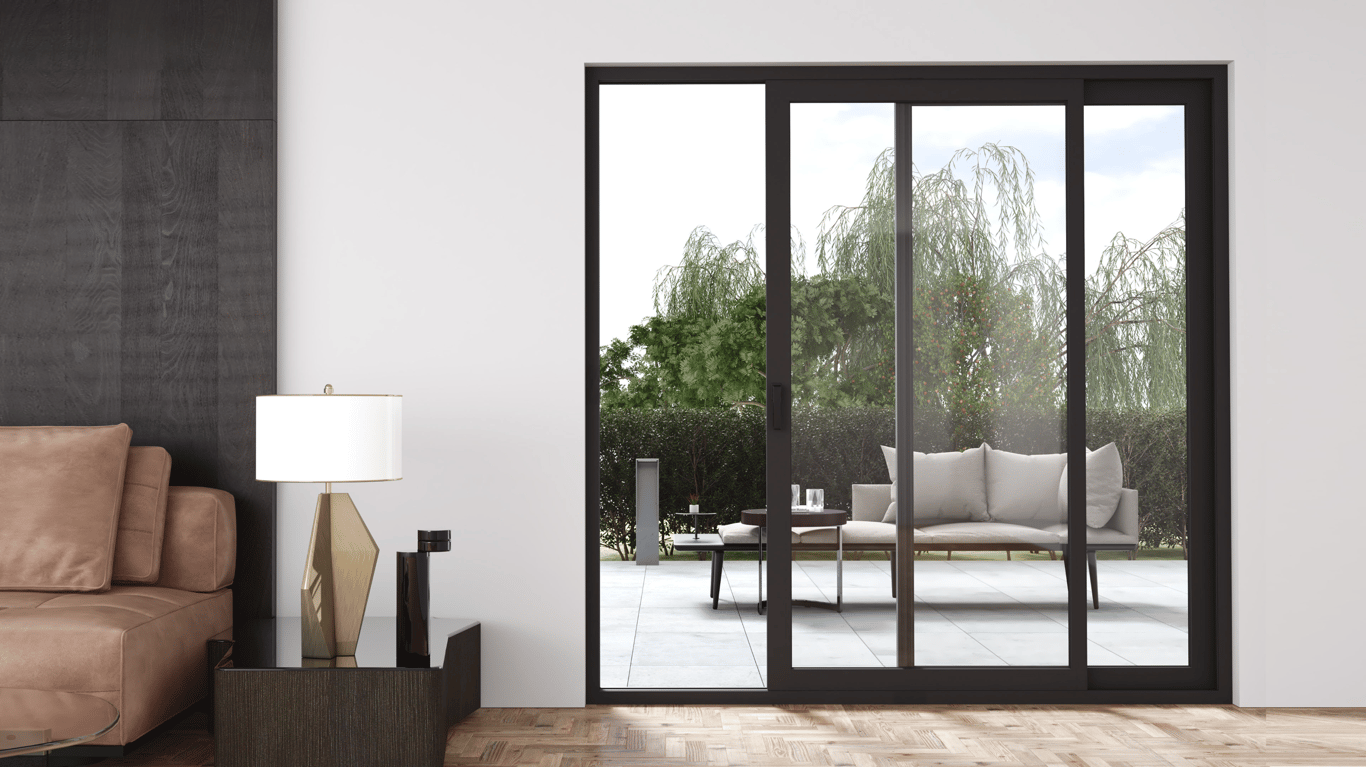

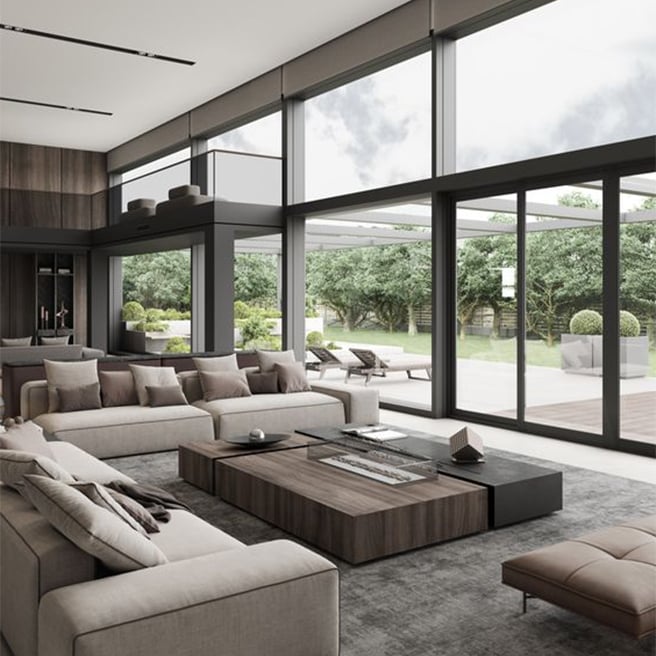

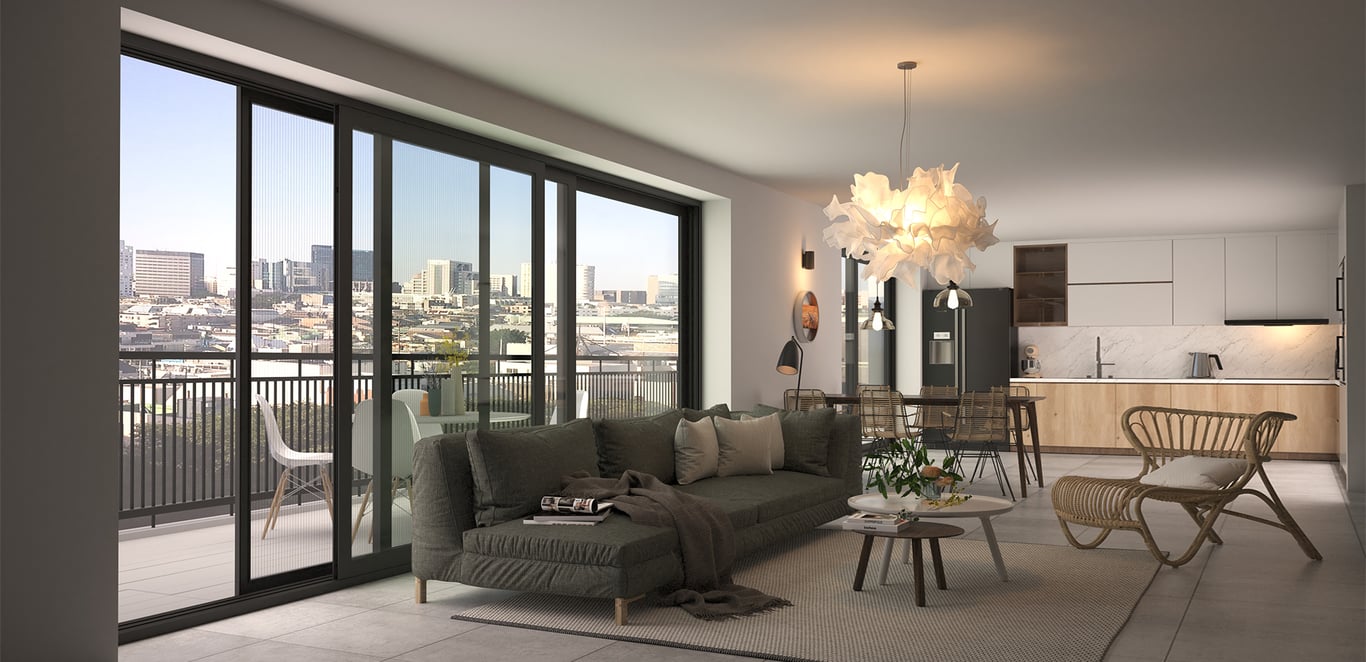

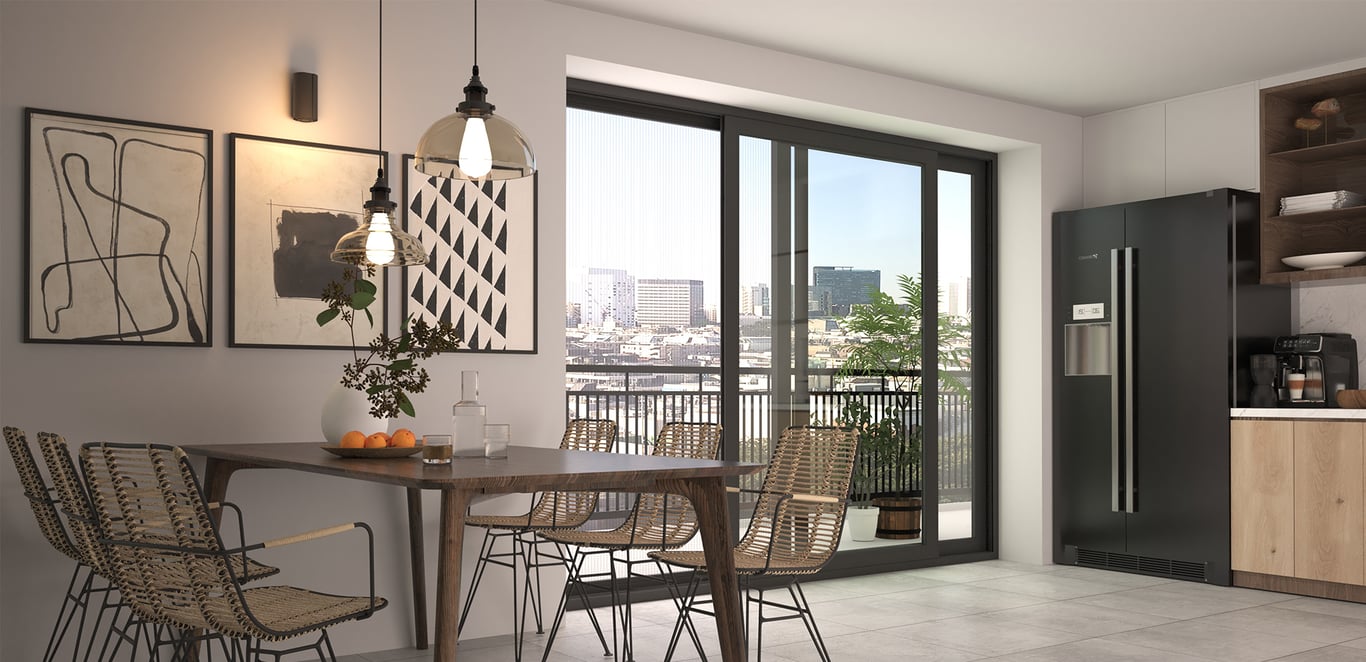

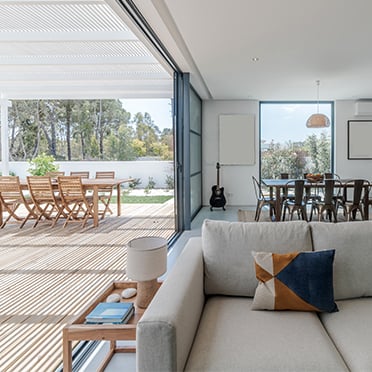

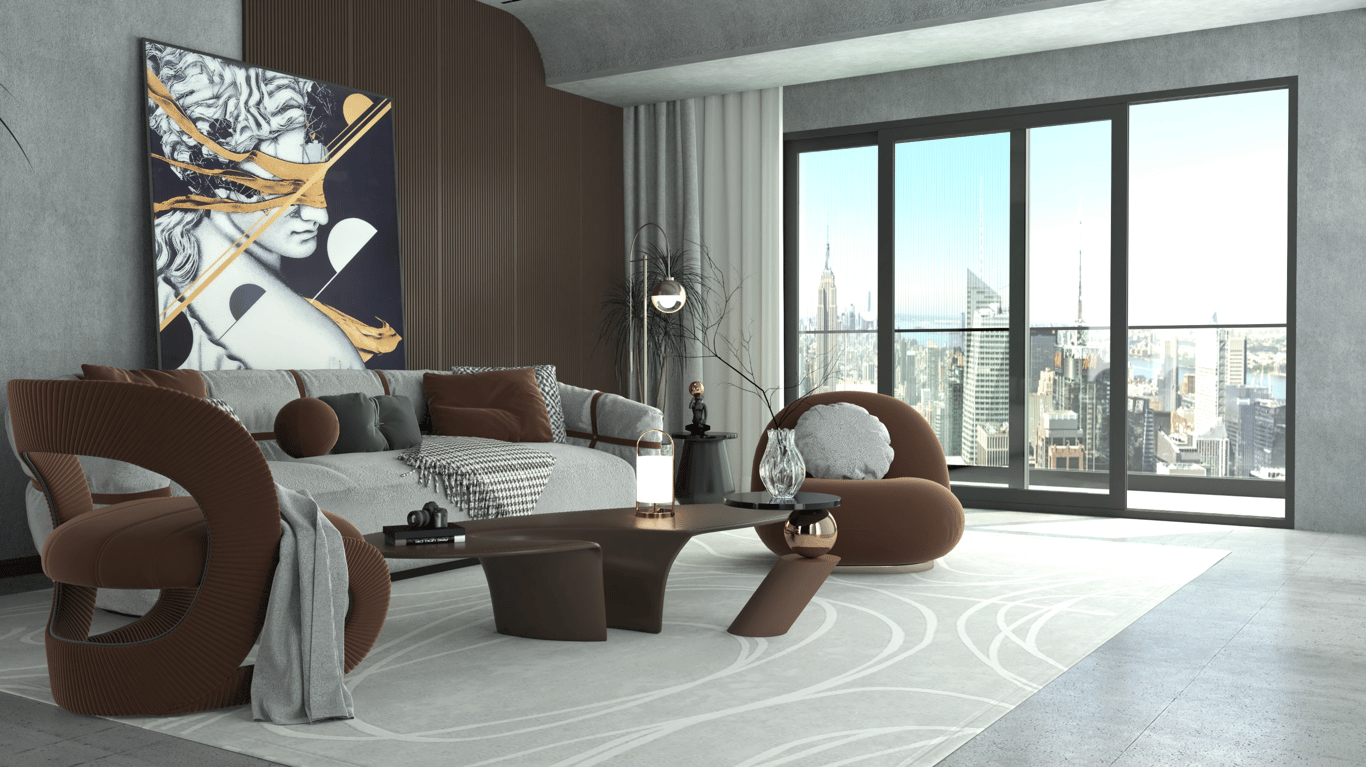

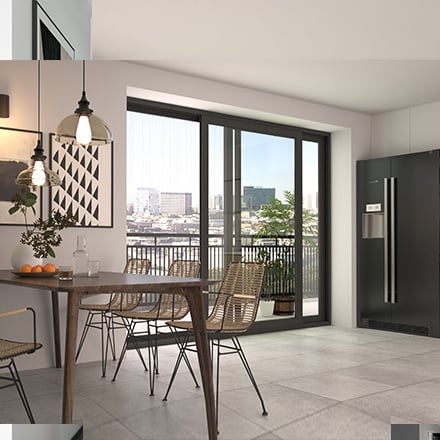

INSPIRE

VARIANTS

AS.LS.600 Lift & Slide system, one of the Alufour high performance sliding systems, can be offered in different variants.

To see the variants in more detail, you can find them with pictures and explanations on the side.

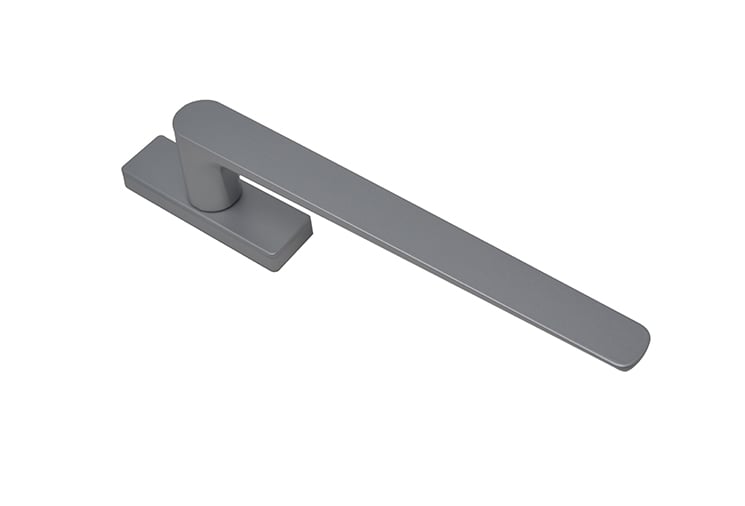

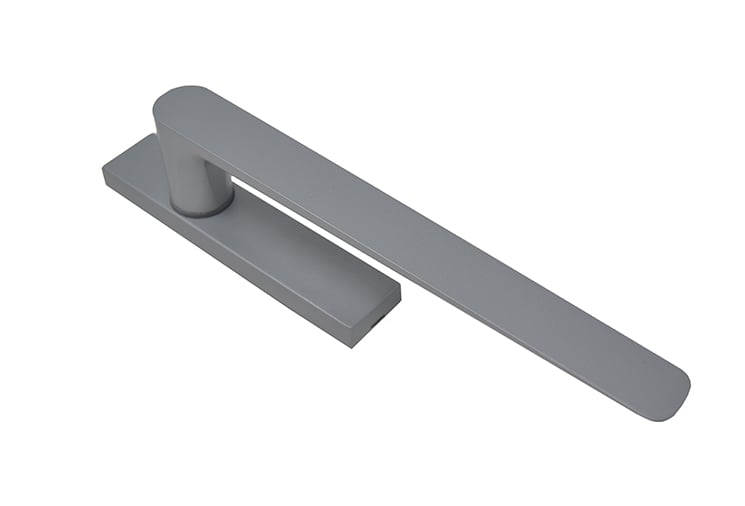

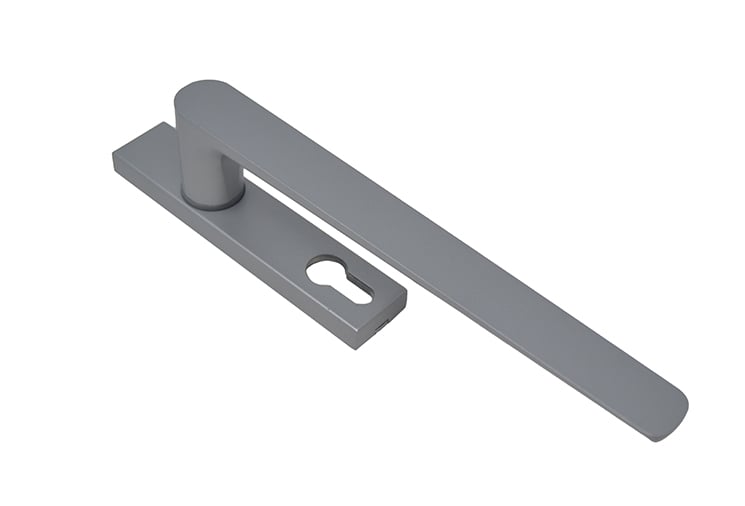

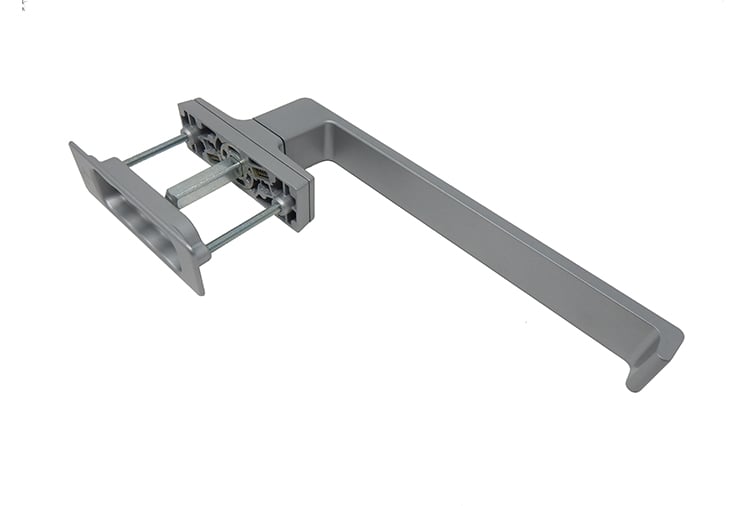

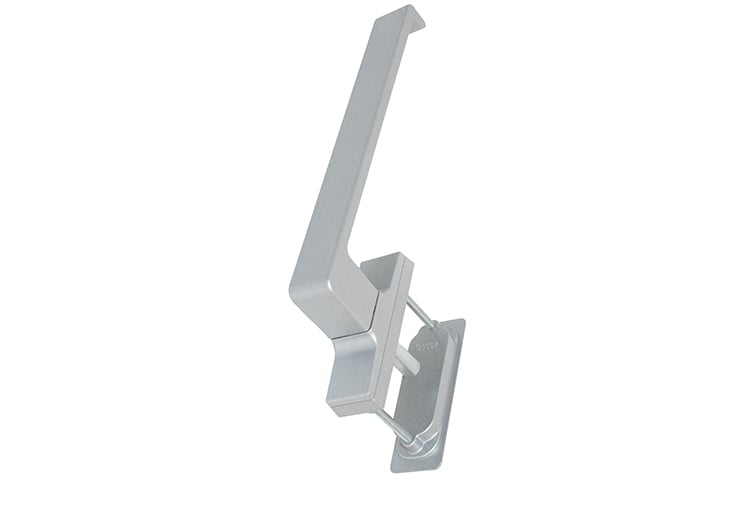

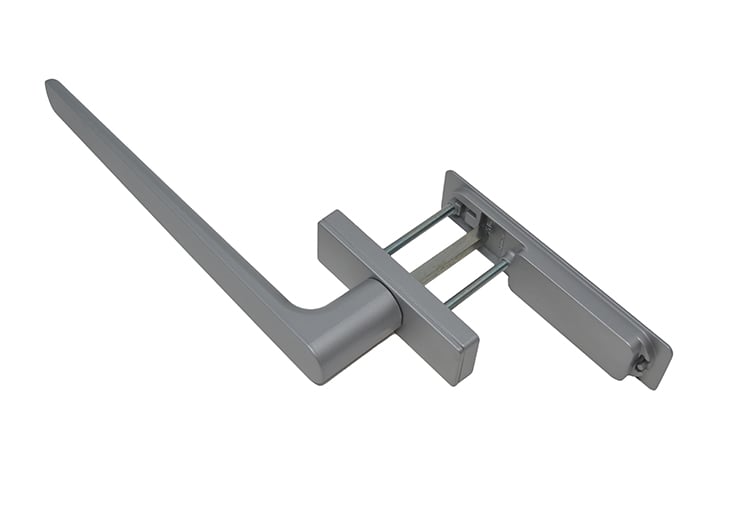

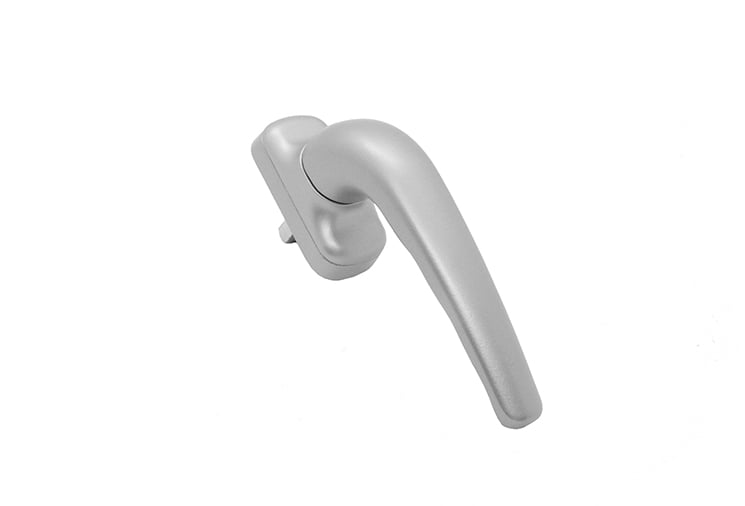

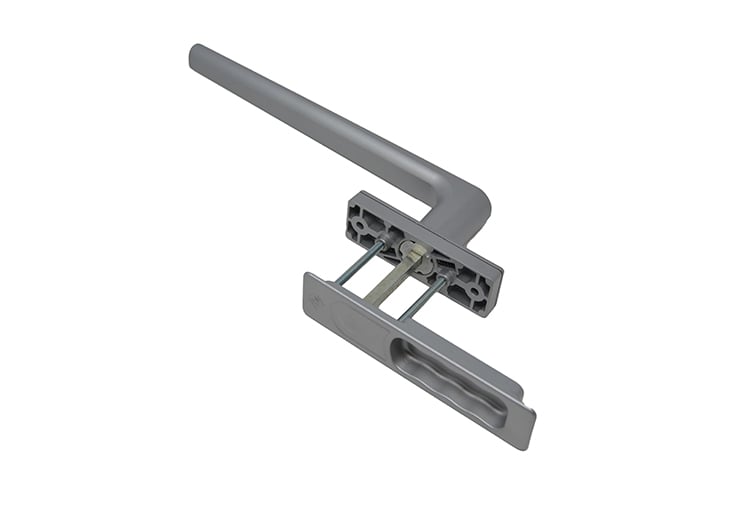

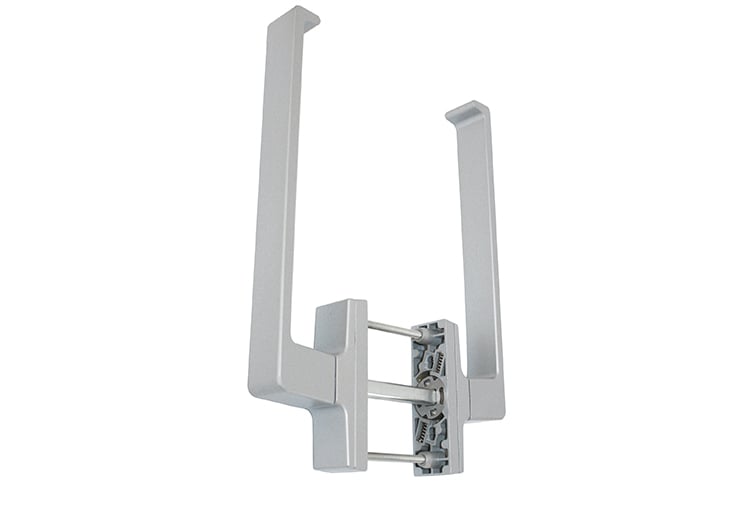

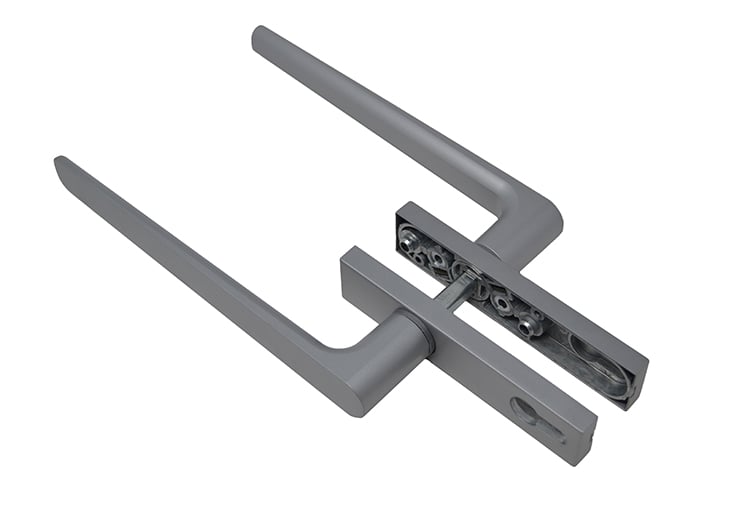

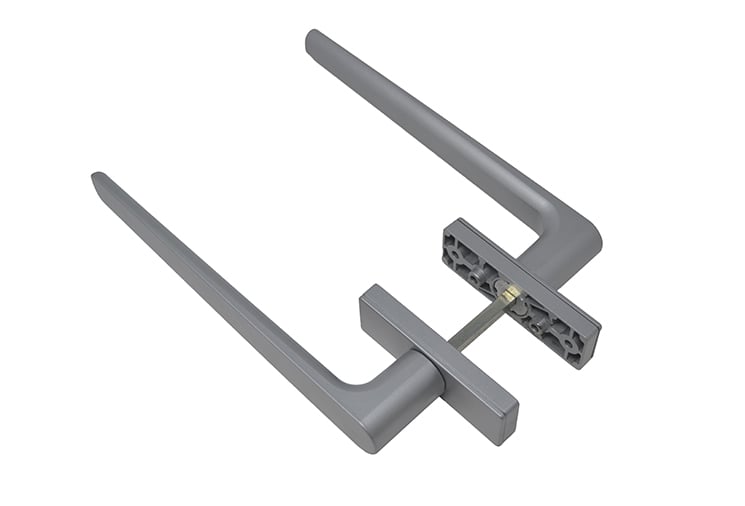

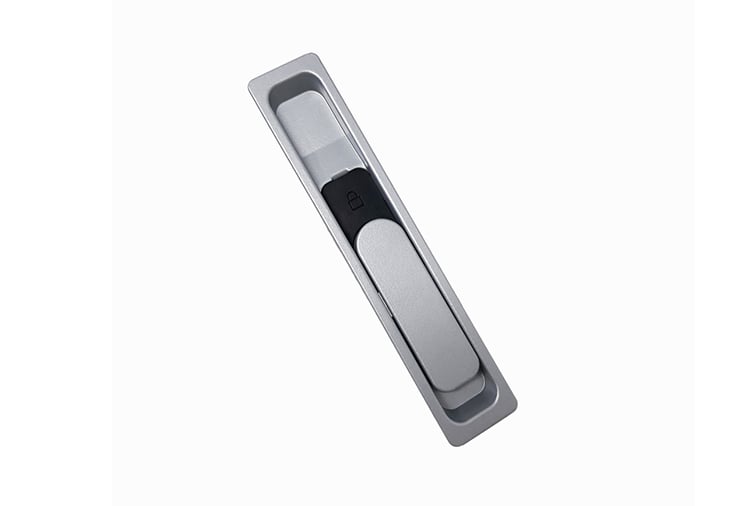

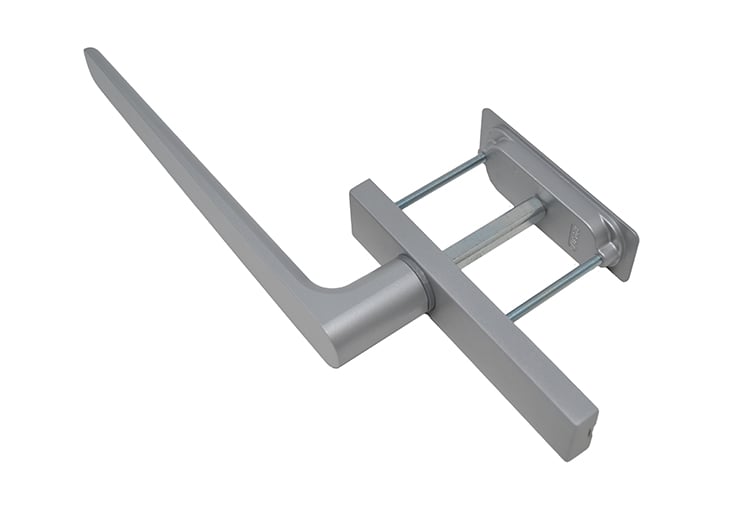

HANDLES

SOLUTION IN HANDLES

Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.

Compare Products

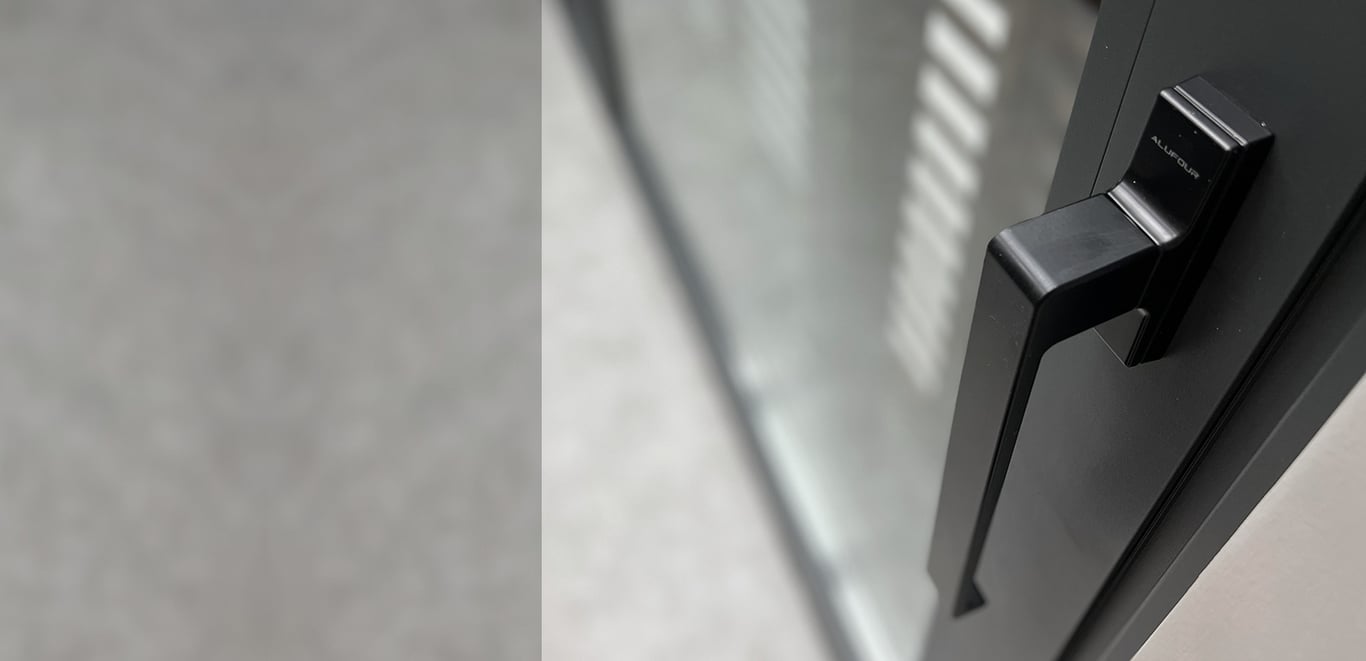

HANDLES

satisfactory options

All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
