Doors > '' GATIO 70 '' ('' GATIO 70 '' - INSULATED DOOR)

“ DD SERIES - PANEL DOOR ”

“ DD SERIES - PIVOT DOOR

'' GATIO 60 ''

'' GATIO 70 ''

Specifications

Min. Visible width

Frame/50mm - Sash/76mm

Thermal insulation

UW value down to 1 W/m²K

Water tightness

Up to 600 Pa (EN 12208:CLASS 9A)

Acoustic performance

Rw= 40-46 dB

Air tightness

Up to 600 Pa (CLASS 4)

Wind load resistance

Up to 2000 Pa (TS EN 12210:C5)

Glass thickness

12mm-54mm

Overall system depth

Frame/70mm - Sash/79mm

Note: Performances may be different depending on the profile combinations.

DESIGN

High performance, high quality…

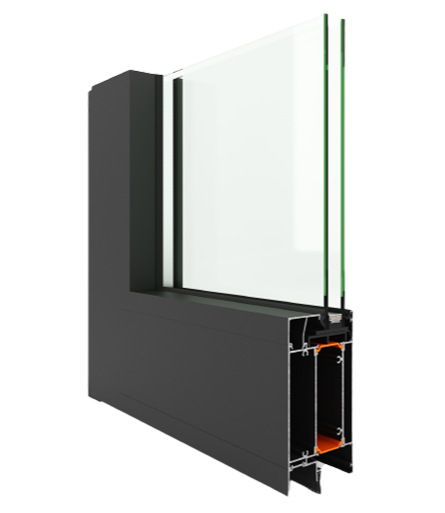

'' GATIO 70 ''

The AS.ID.700 system with a depth of 70mm has superior performance standards. With its different usage options (internal-external opening, hidden sash) it meets all architectural requirements.

OPENING TYPES

Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.

Available in multiple opening types and configurations.

DOWNLOAD

You can download brochures and documents related to the specific system you need in your projects from here.

To download and discover all Alufour Systems products you can look our download page.

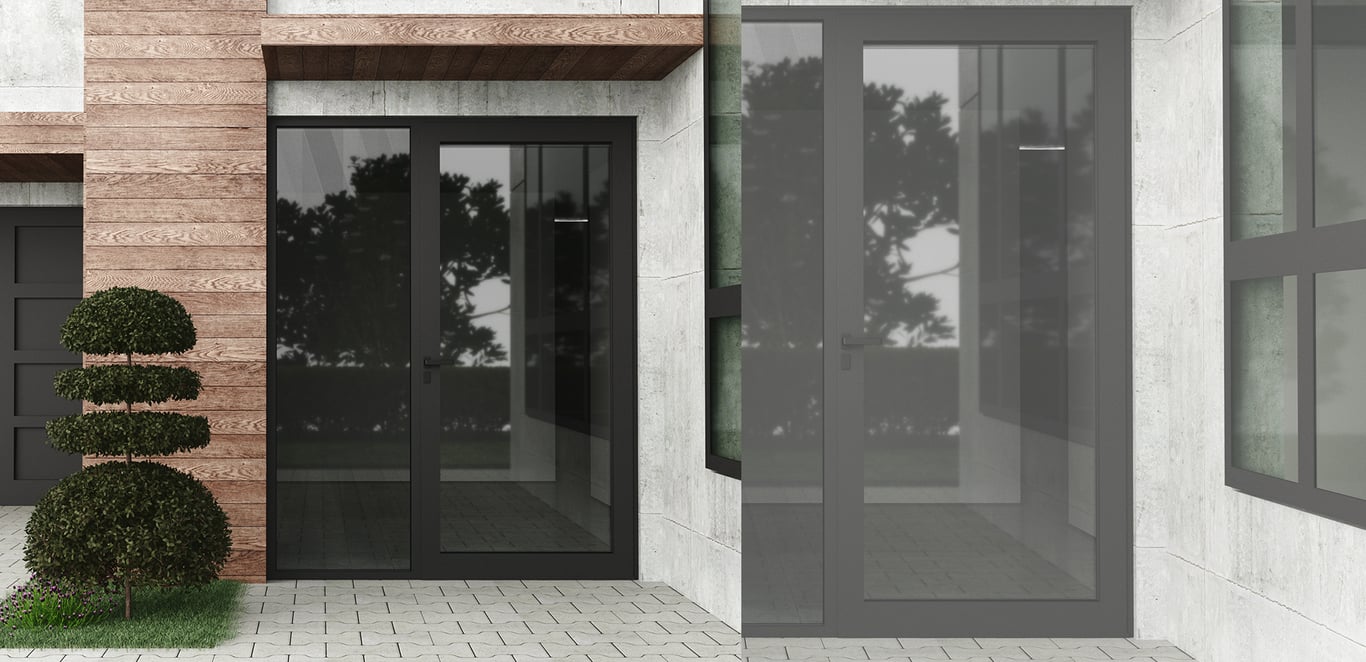

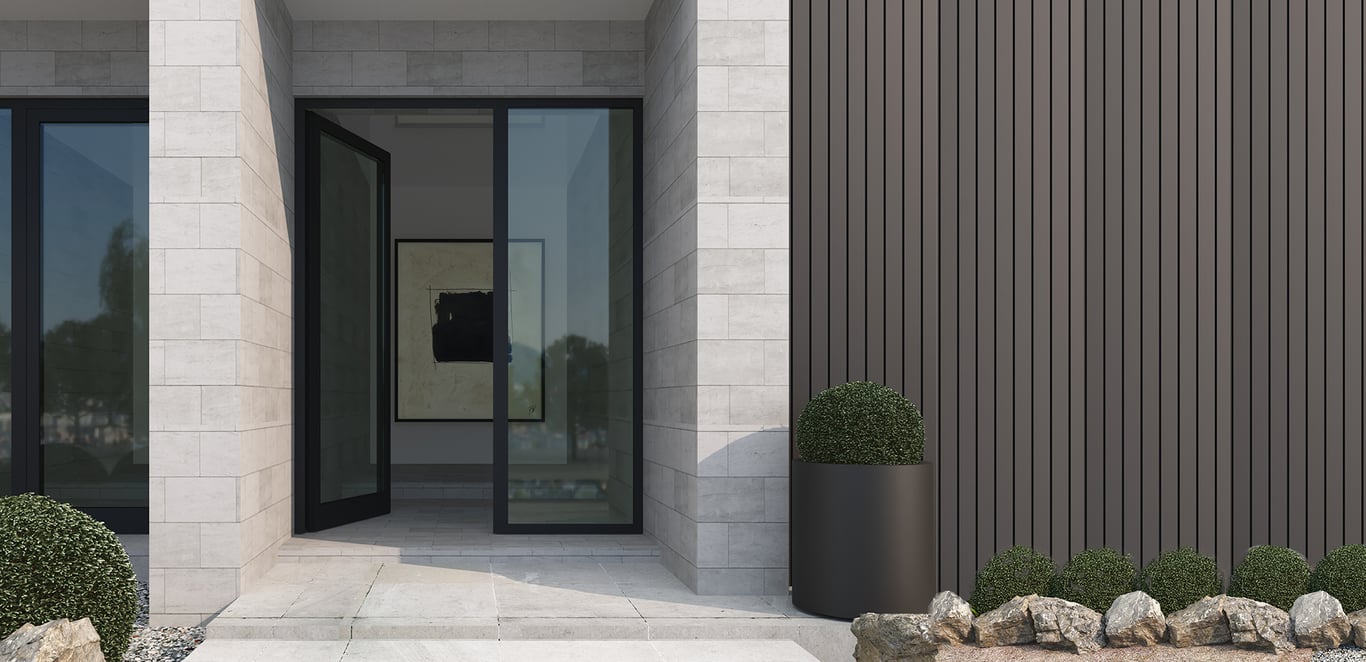

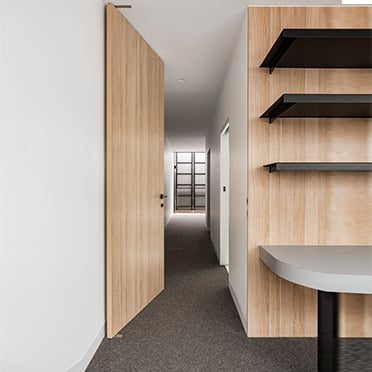

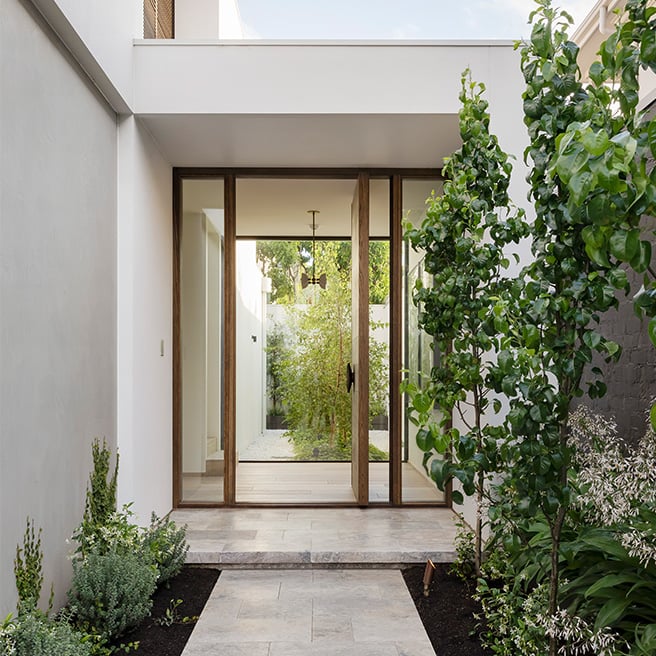

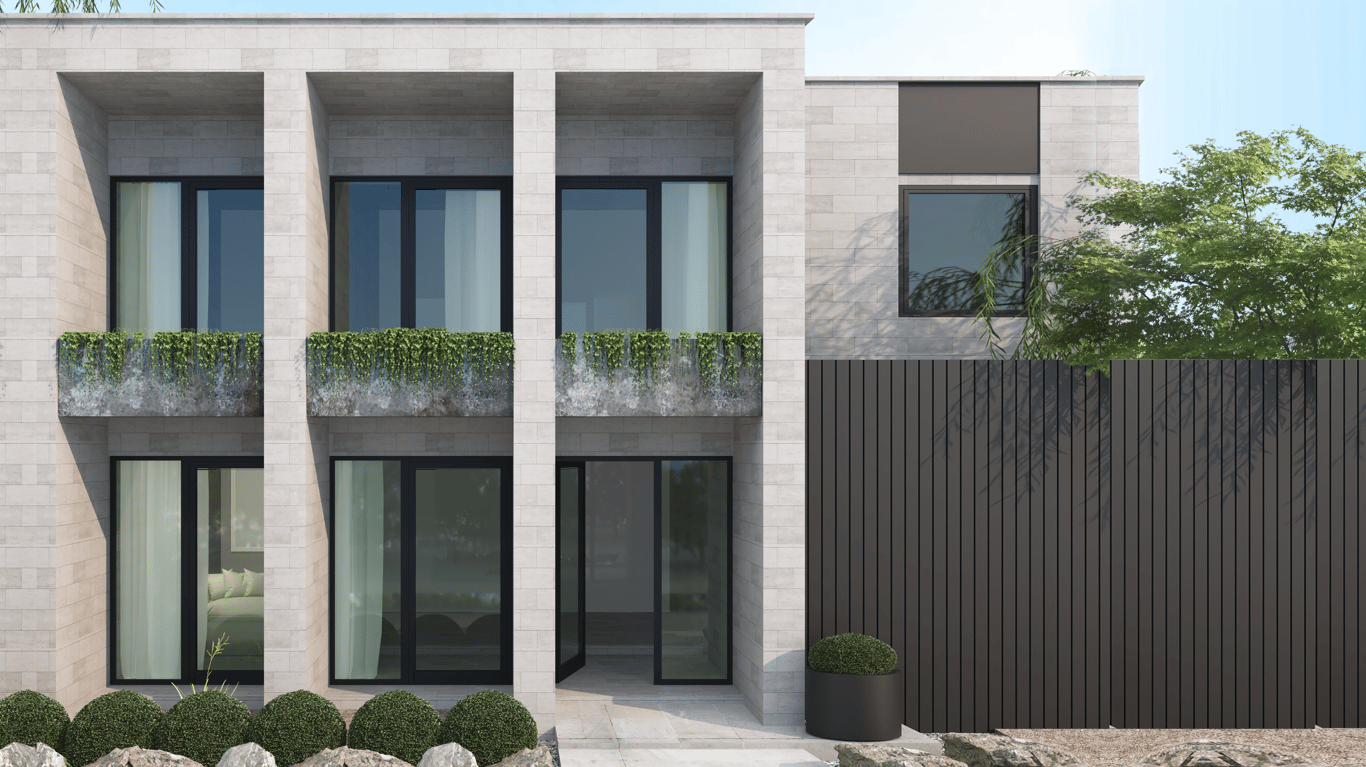

INSPIRE

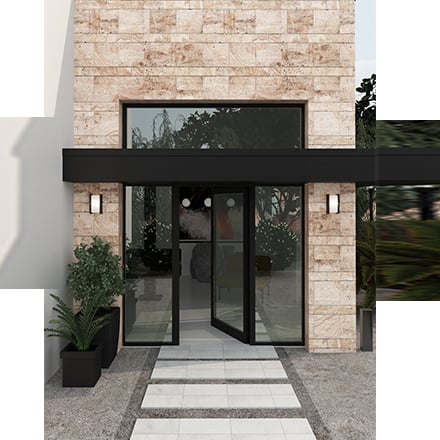

VARIANTS

We offer the best solution suitable for your projects by using the different opening variants specific to AS.ID.700 DOOR system.

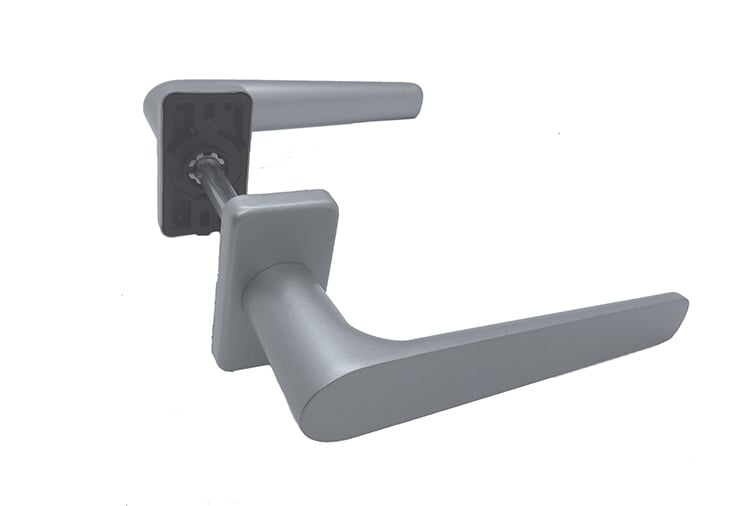

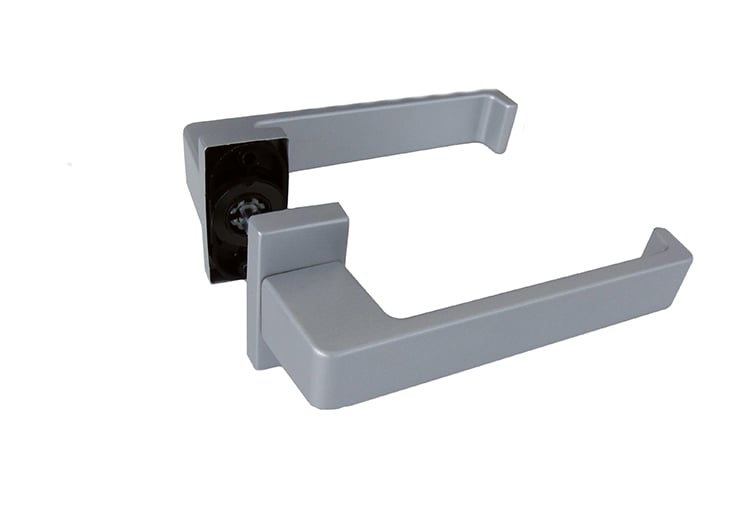

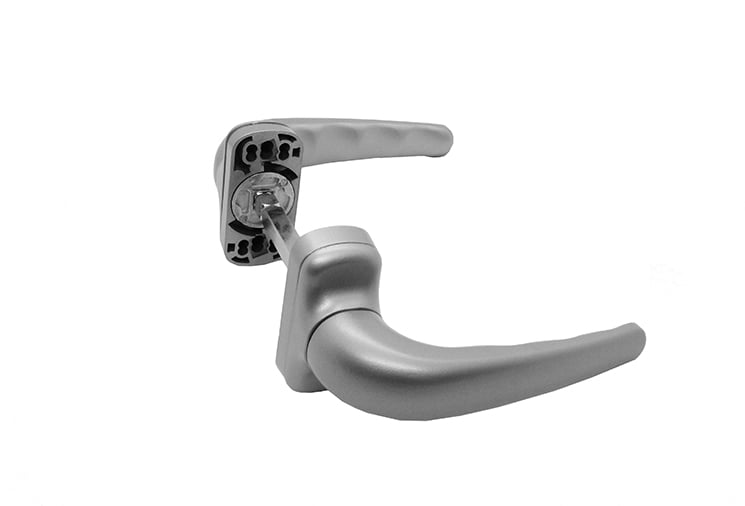

HANDLES

SOLUTION IN HANDLES

Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.

Compare Products

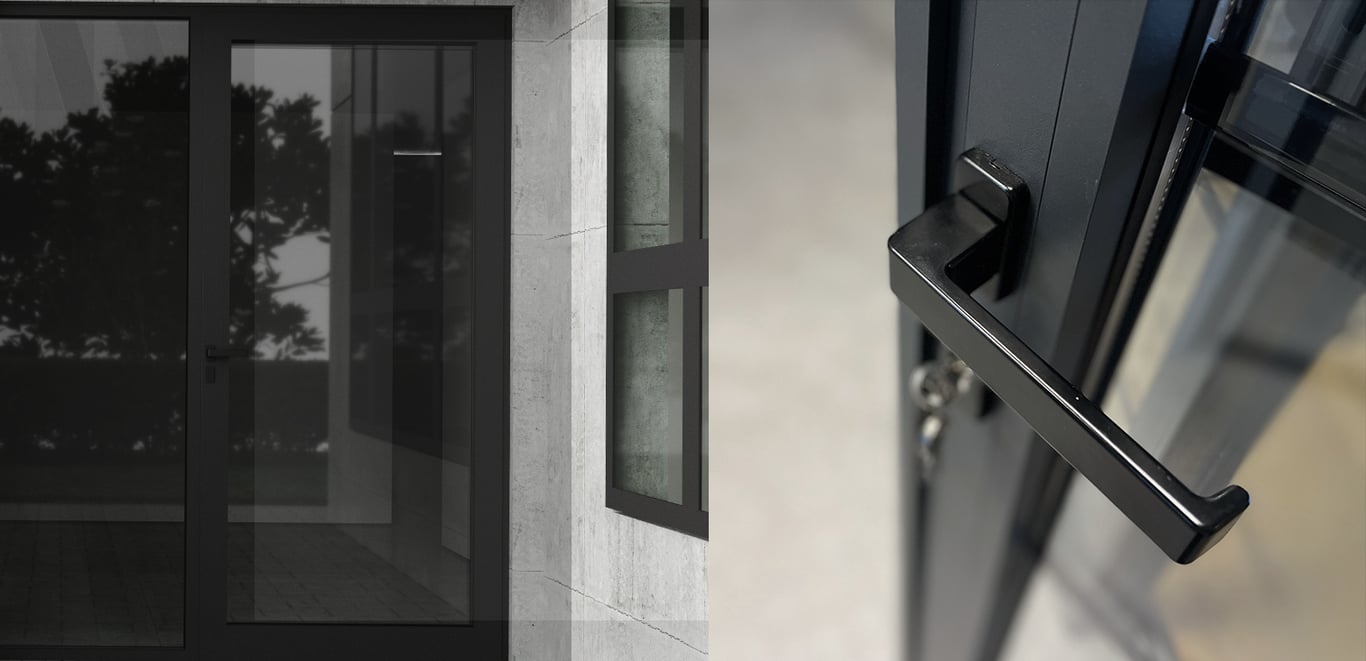

HANDLES

satisfactory options

All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
