“ DD SERIES - PIVOT DOOR

Specifications

Min. Visible width

Frame/35mm - Sash/51mm

Thermal insulation

Uf value down to 0,9 W/m²K

Water tightness

Up to 300 Pa (EN 12208: CLASS 7A)

Acoustic performance

Rw= 40-50

Air tightness

Up to 450 Pa (CLASS 3)

Wind load resistance

Up to 2000 Pa (EN 12210: C5)

Glass thickness

30mm-65mm

Overall system depth

Frame/86mm - Sash/83mm

Max. Weight

500 kg

Note: Performances may be different depending on the profile combinations.

DESIGN

“different from regular door, often large, heavy, beautiful and safety”

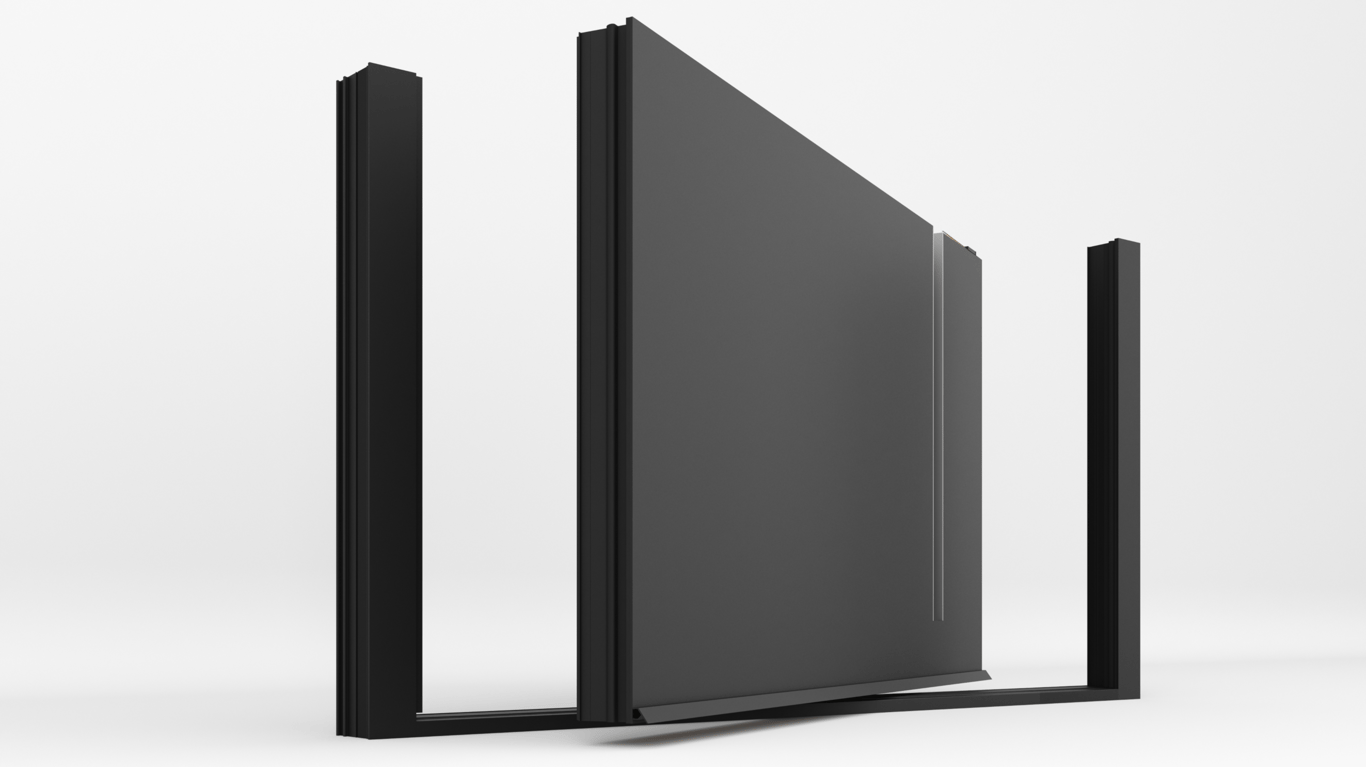

“ DD SERIES ” - PIVOT DOOR

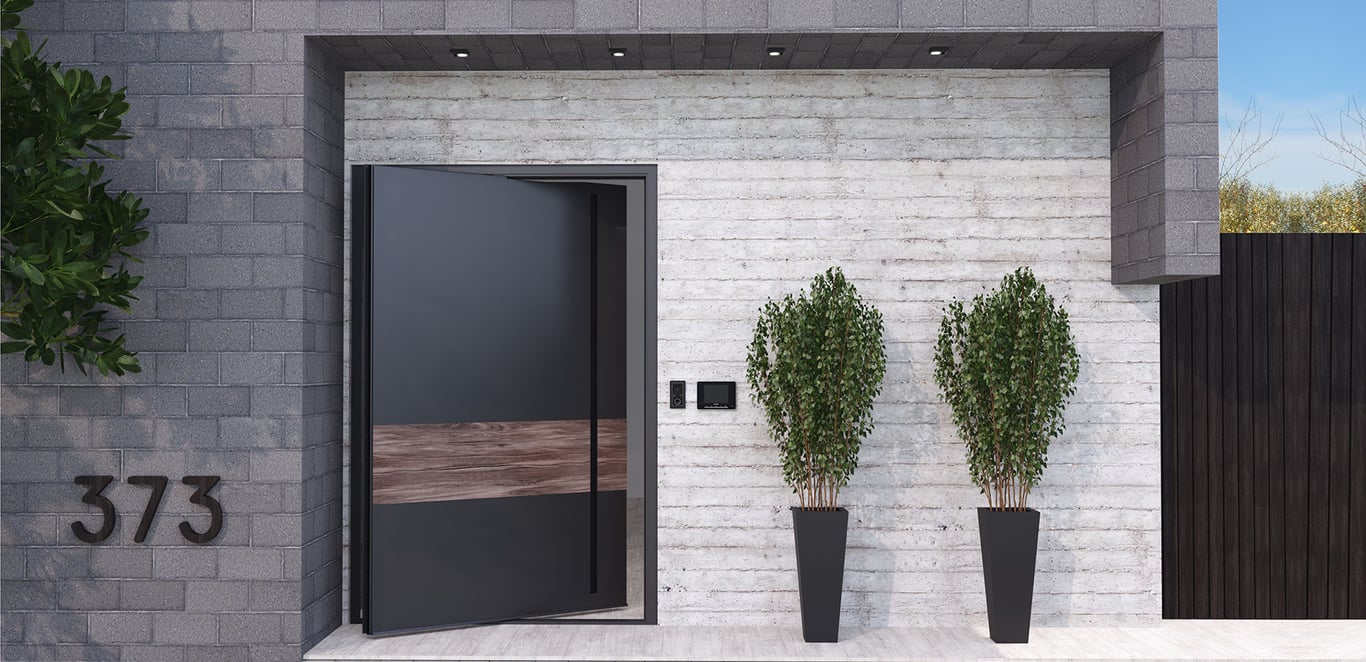

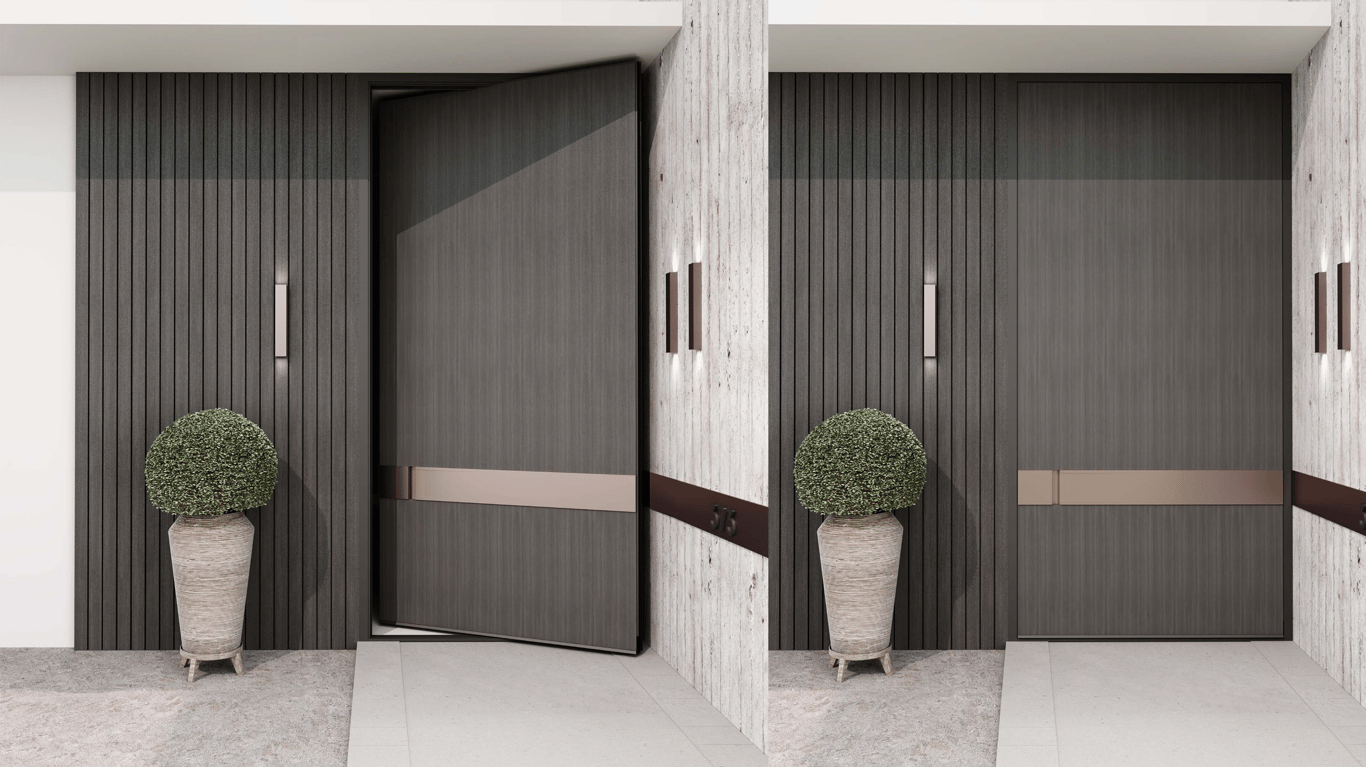

AS.IPVD.860 system is a door system that opens on the vertical axis. The pivot door rotates on a pivot hinge in the floor and top jamb instead of the traditional side hinges. Depending on the placement of the door, the functions it should have and whether the door frames are applied or not, pivot doors can rotate in one direction, two directions and even 360°. The pivot door, which can be opened and closed with the touch of a finger with the pivot hinge, is very hygienic as it can be operated without touching. A pivot door with the appropriate hinges is very easy to install. When the hinges are integrated into the door, there is almost no work to be done in the field. Despite its large dimensions, it is also a very safe door system.

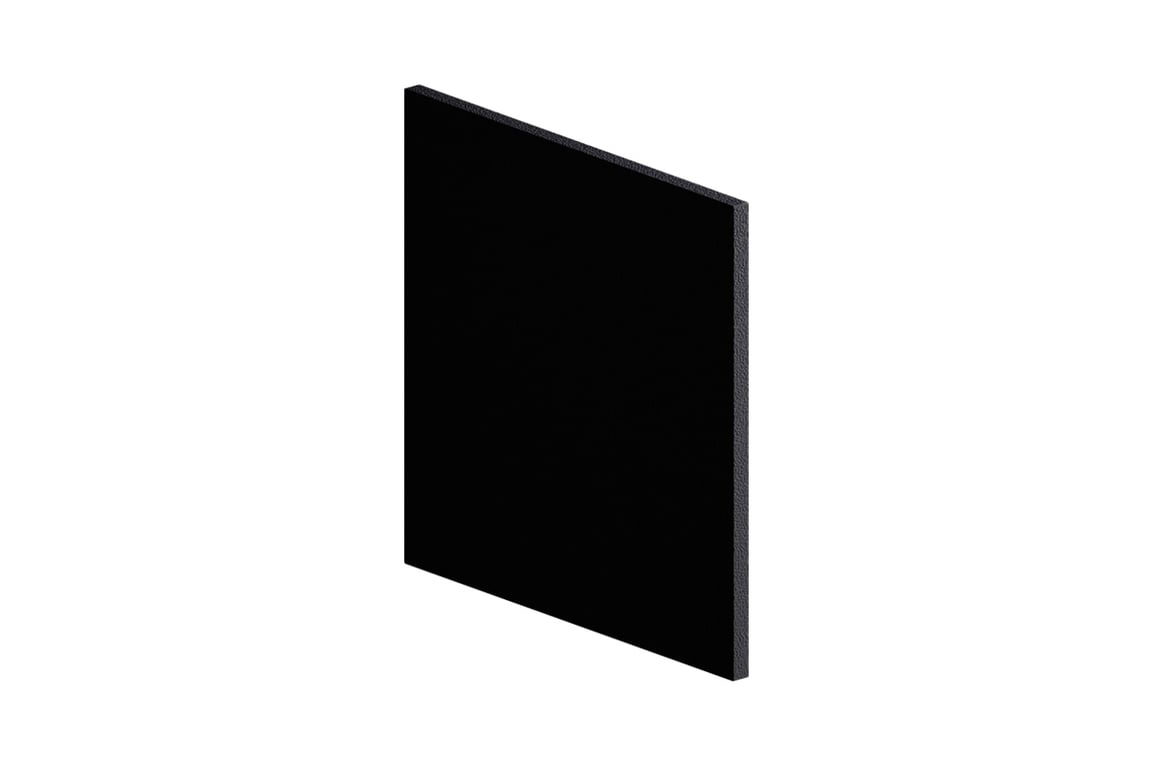

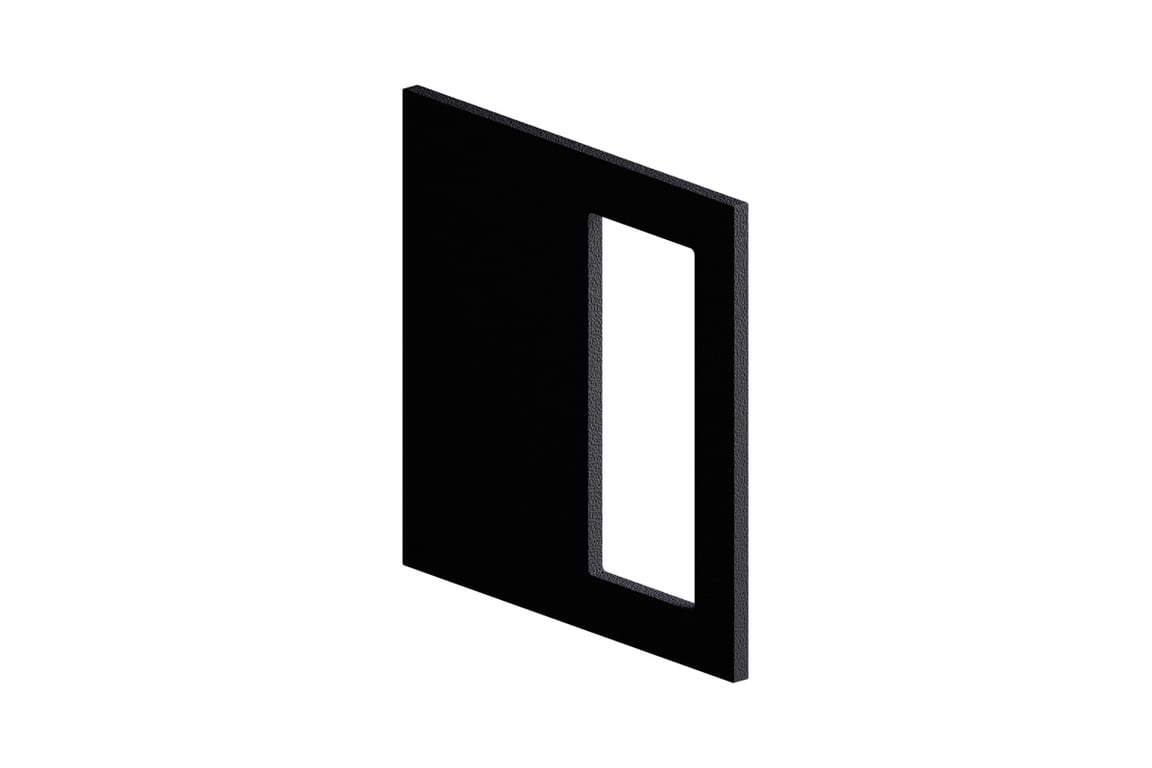

OPENING TYPES

Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.

Available in multiple opening types and configurations.

DOWNLOAD

You can download brochures and documents related to the specific system you need in your projects from here.

To download and discover all Alufour Systems products you can look our download page.

INSPIRE

VARIANTS

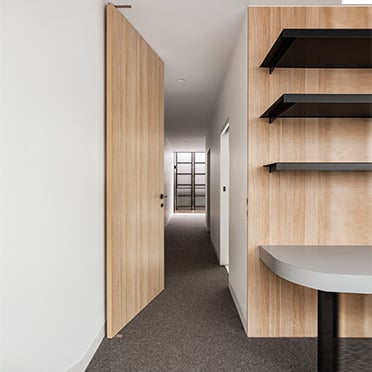

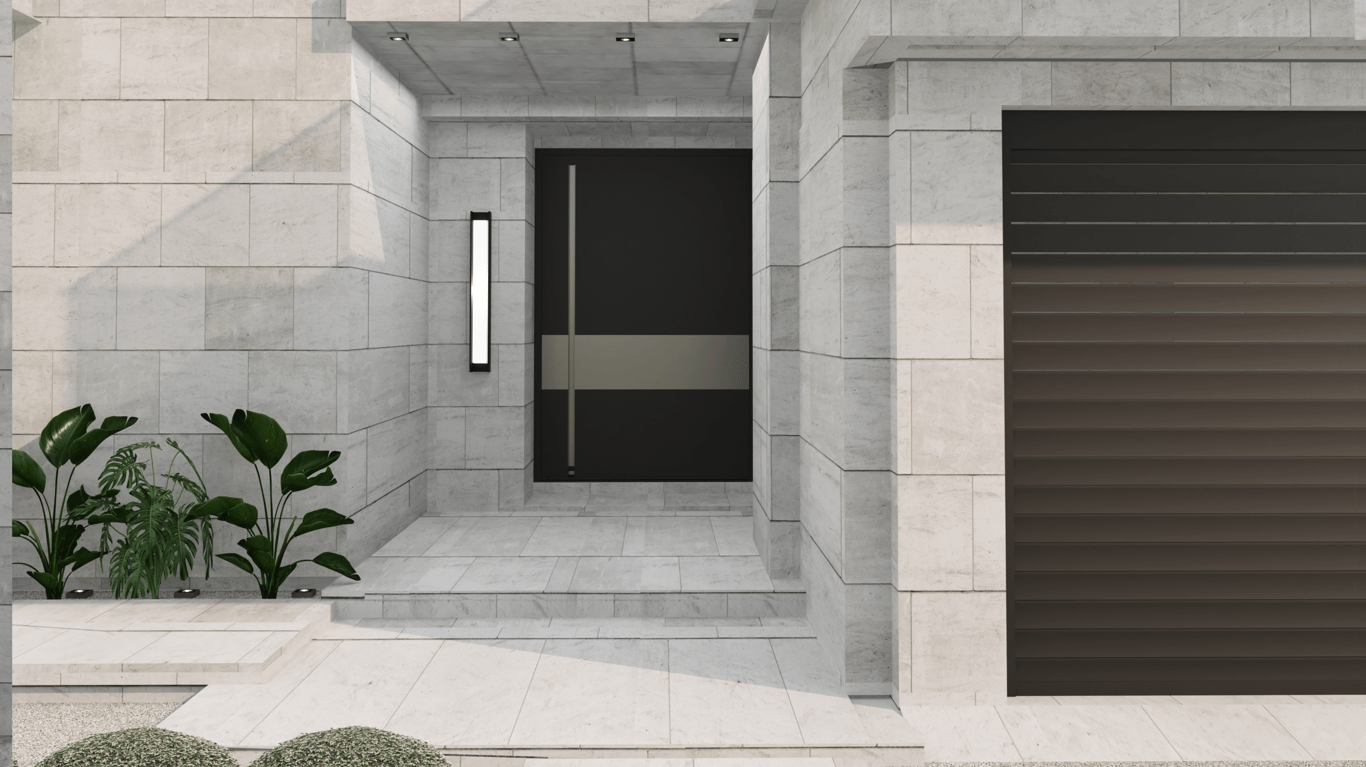

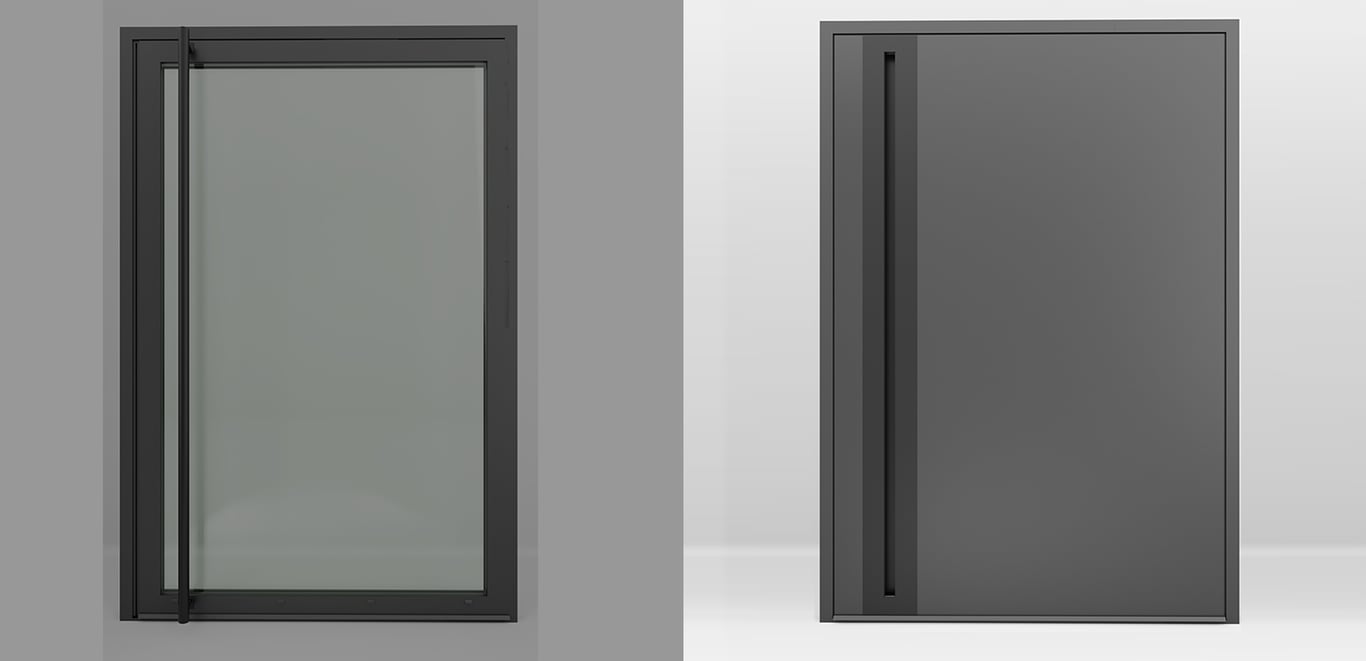

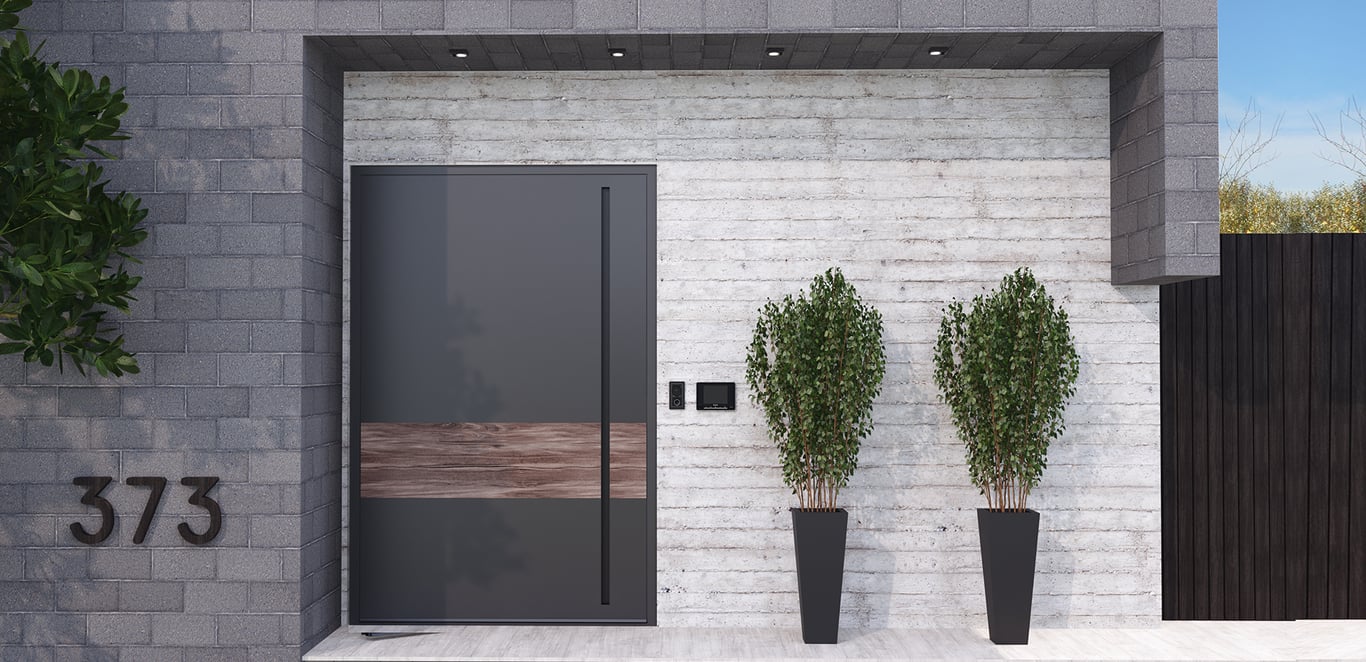

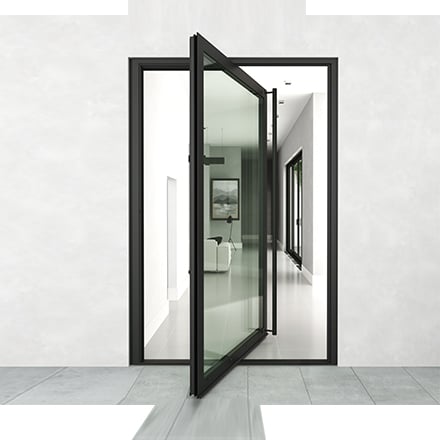

With glass or aluminum panel door options, our Pivot Door System is the most preferred door system by designers.

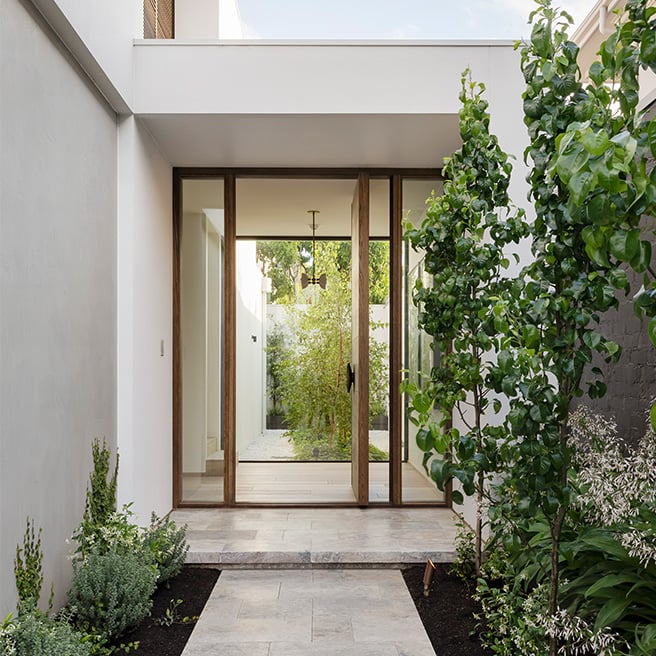

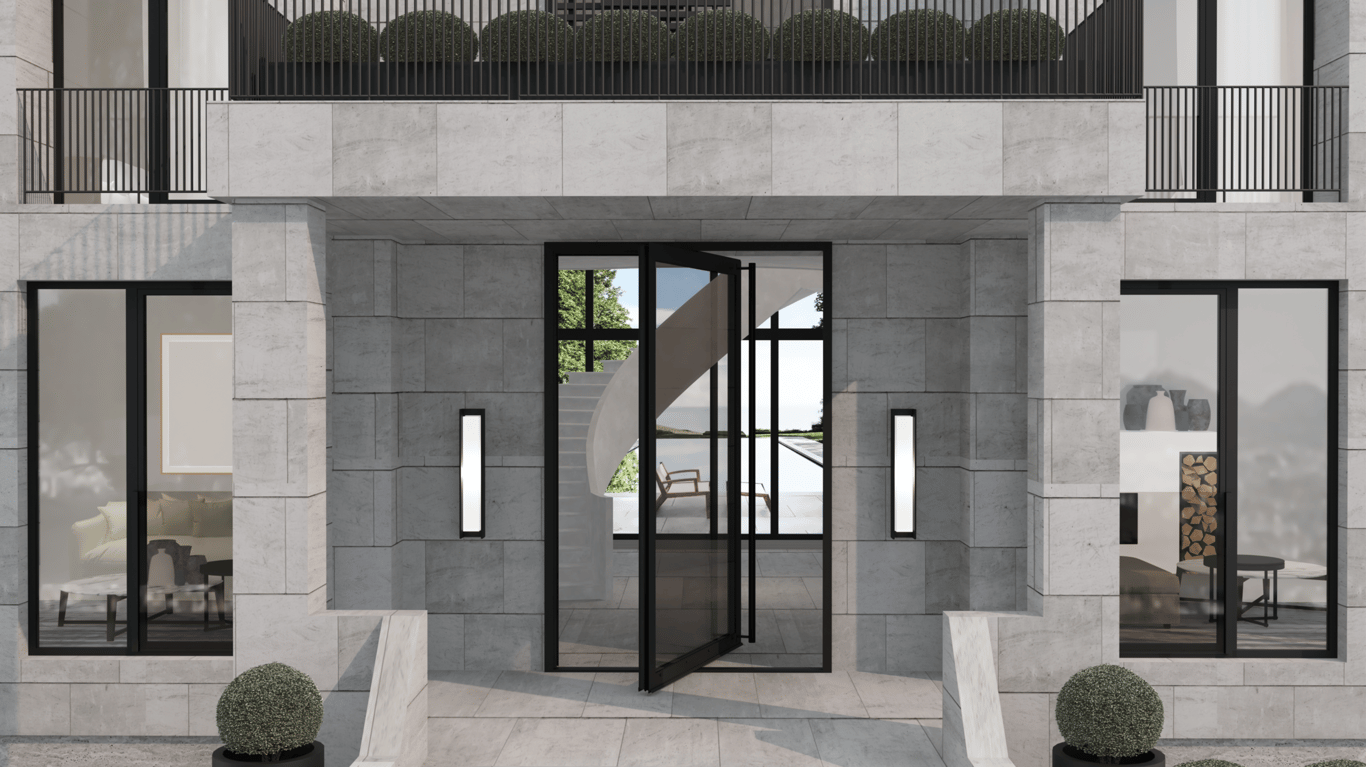

Infinite patterns can be designed on the aluminum panel door according to your projects and tastes. The glass door is not only used as an entrance door, it is also used a lot in different interior architectural projects.

Both glass and Aluminum panels can be used in the pivot door design.

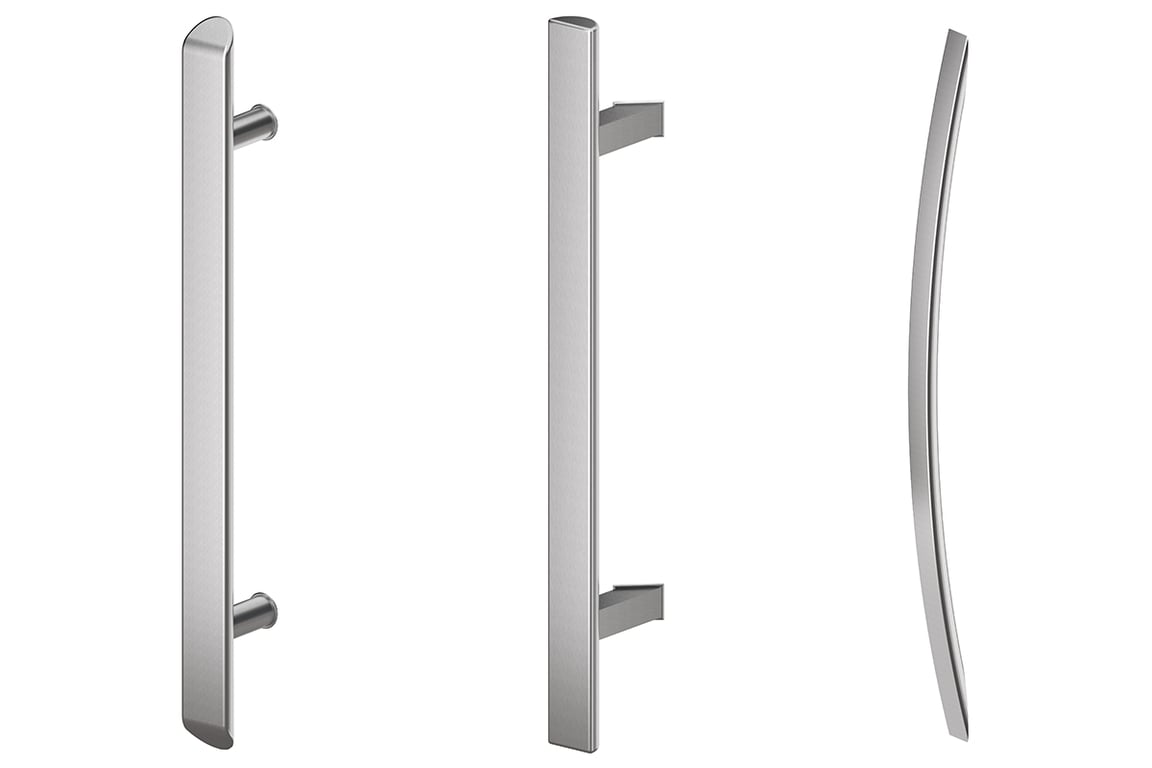

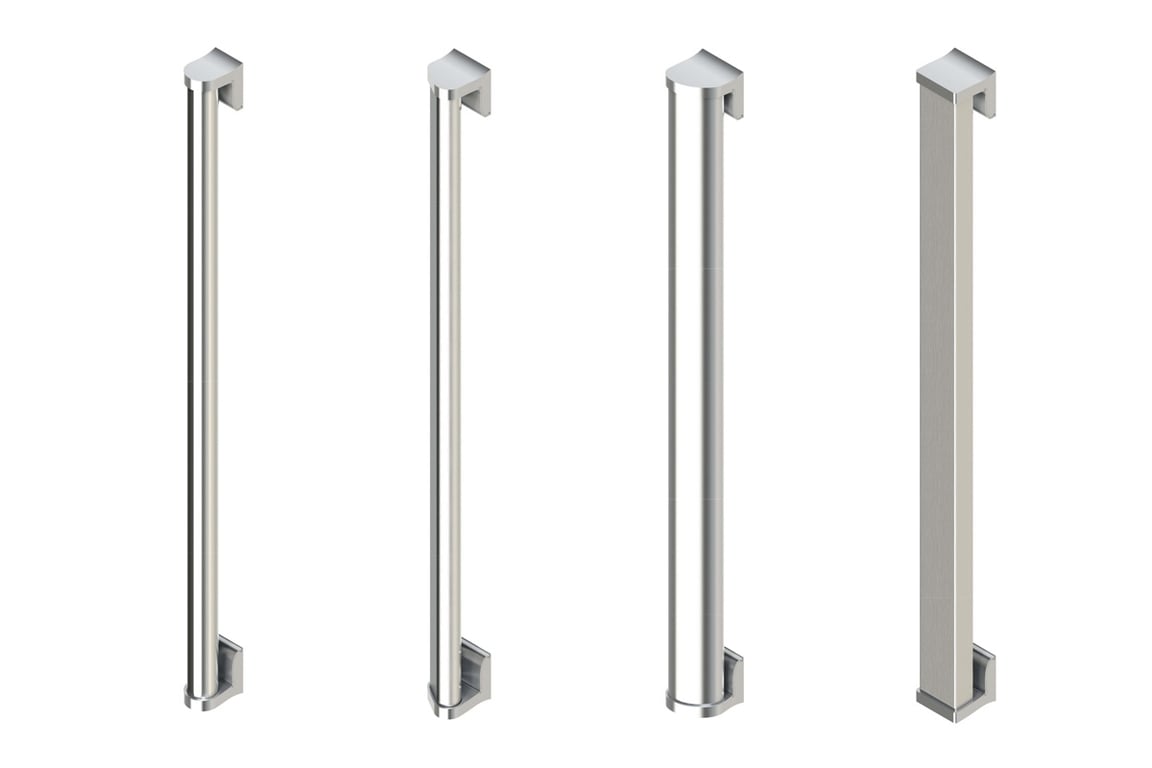

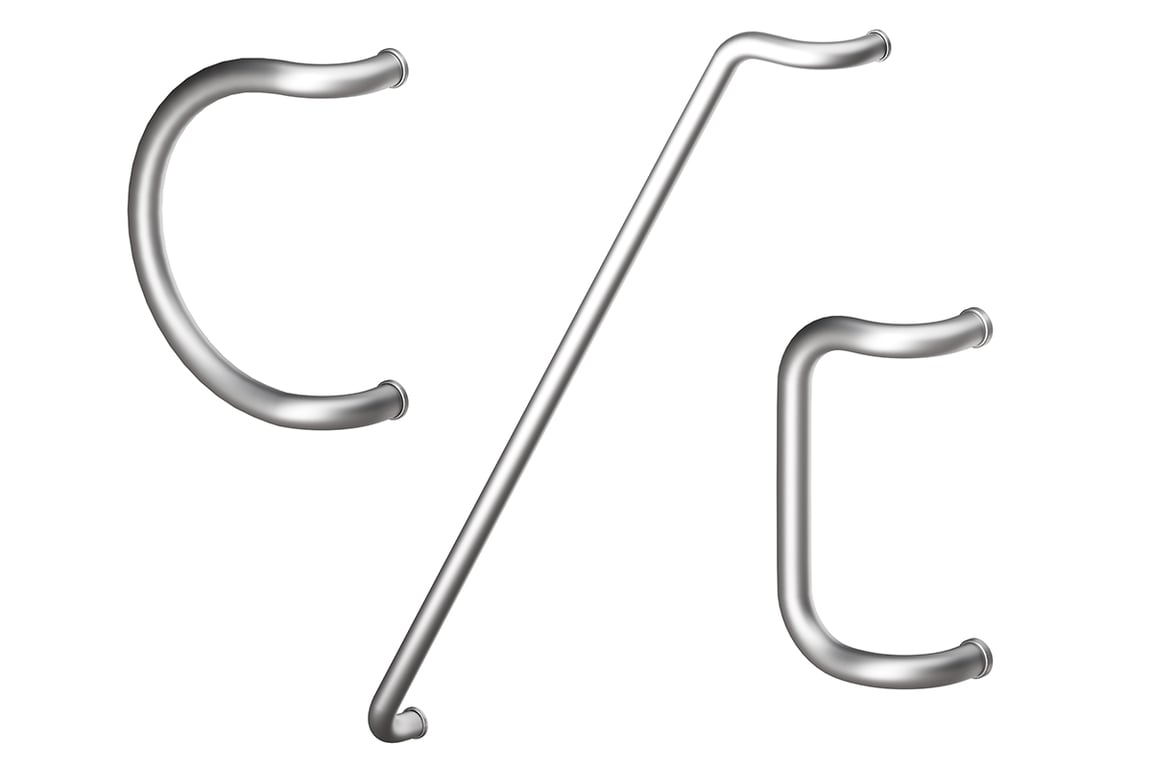

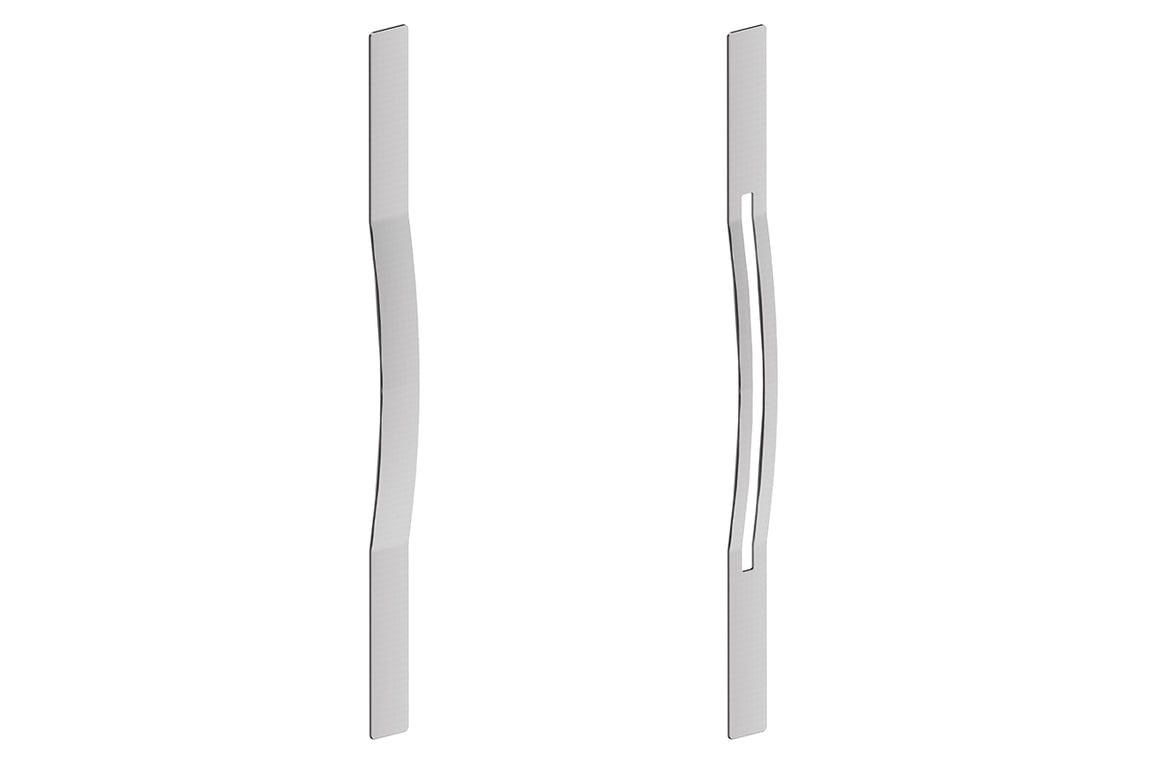

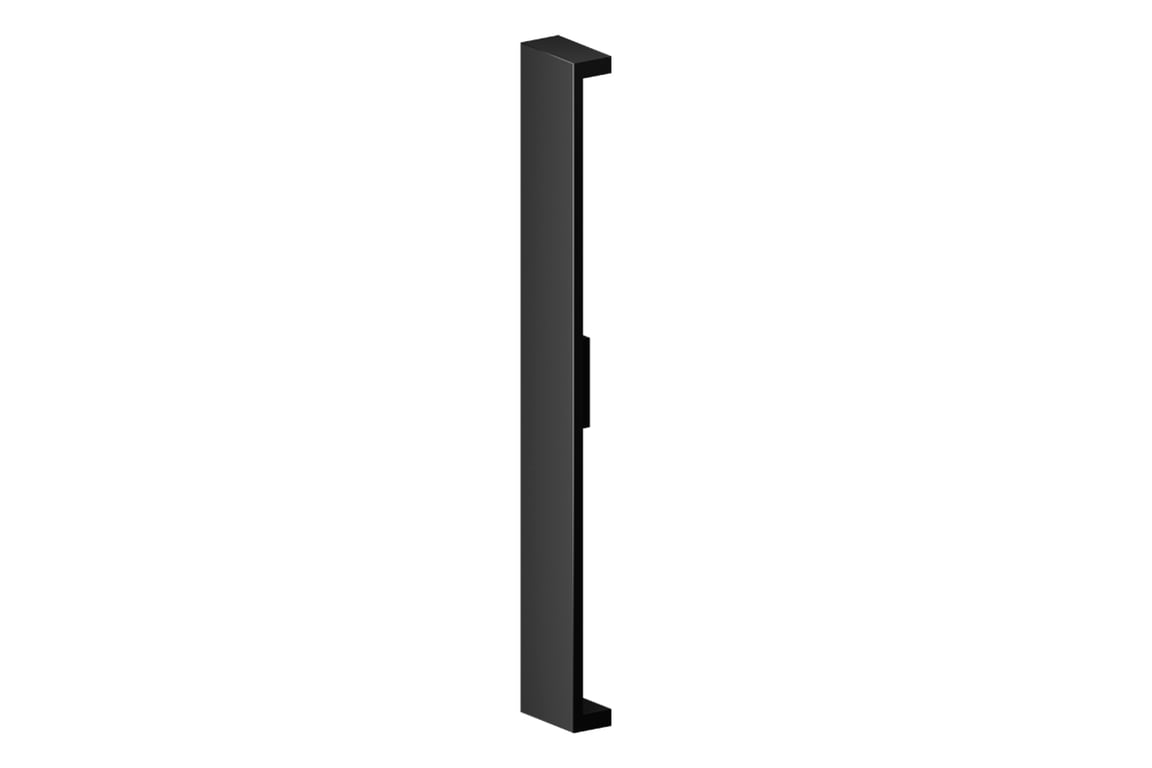

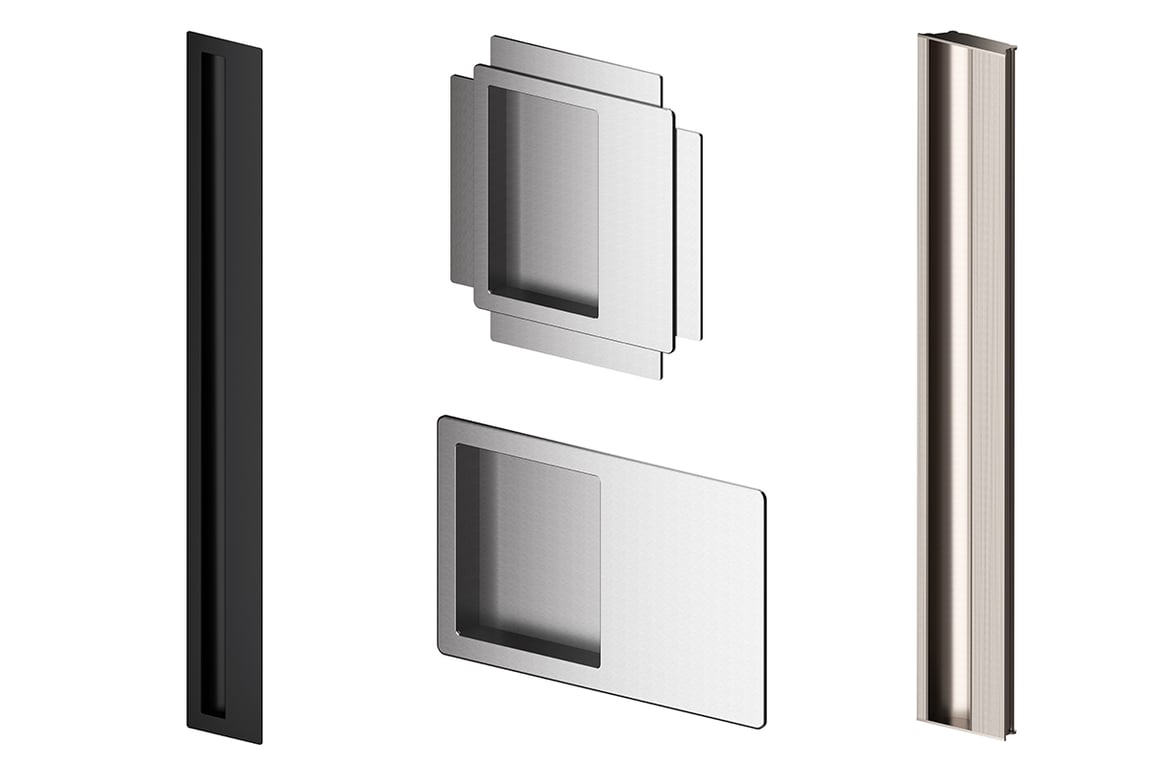

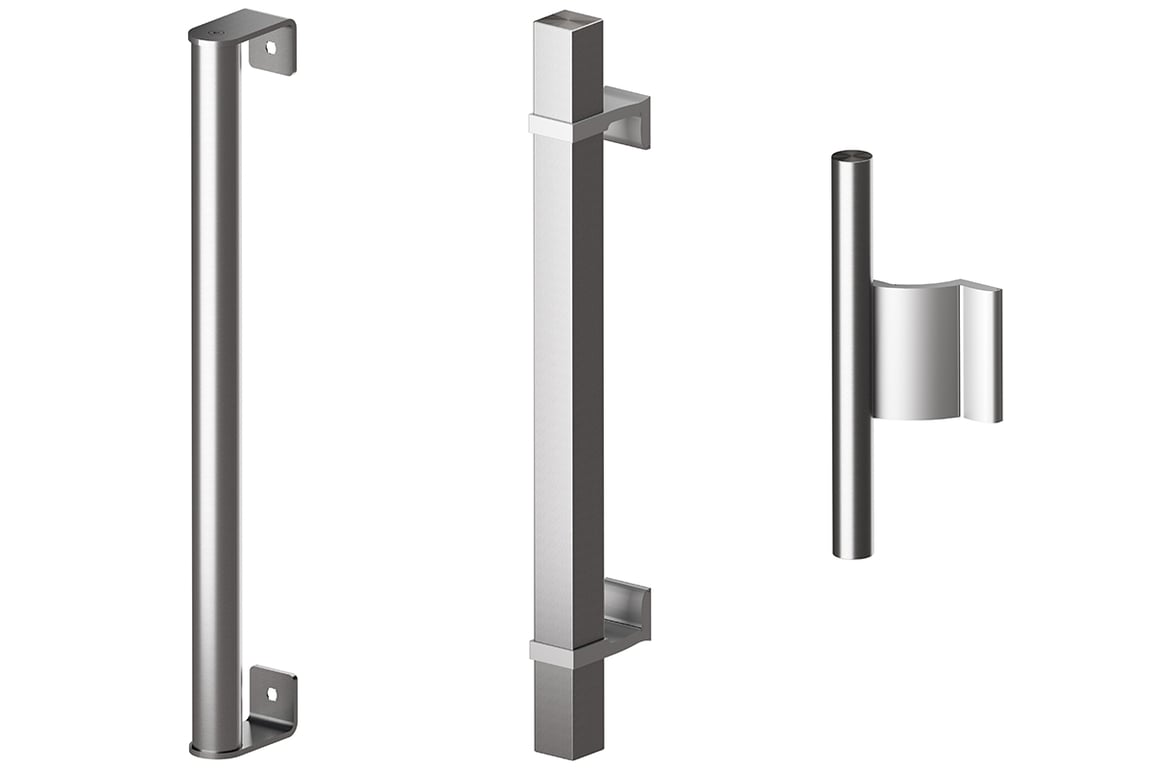

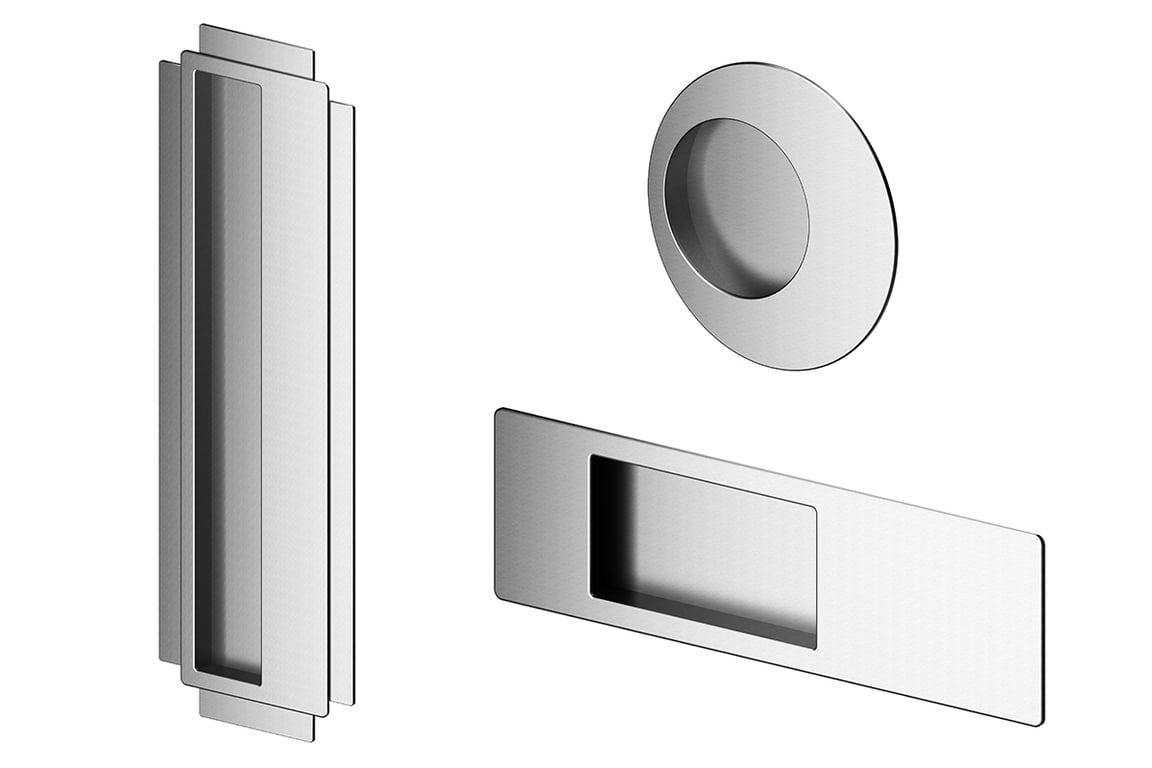

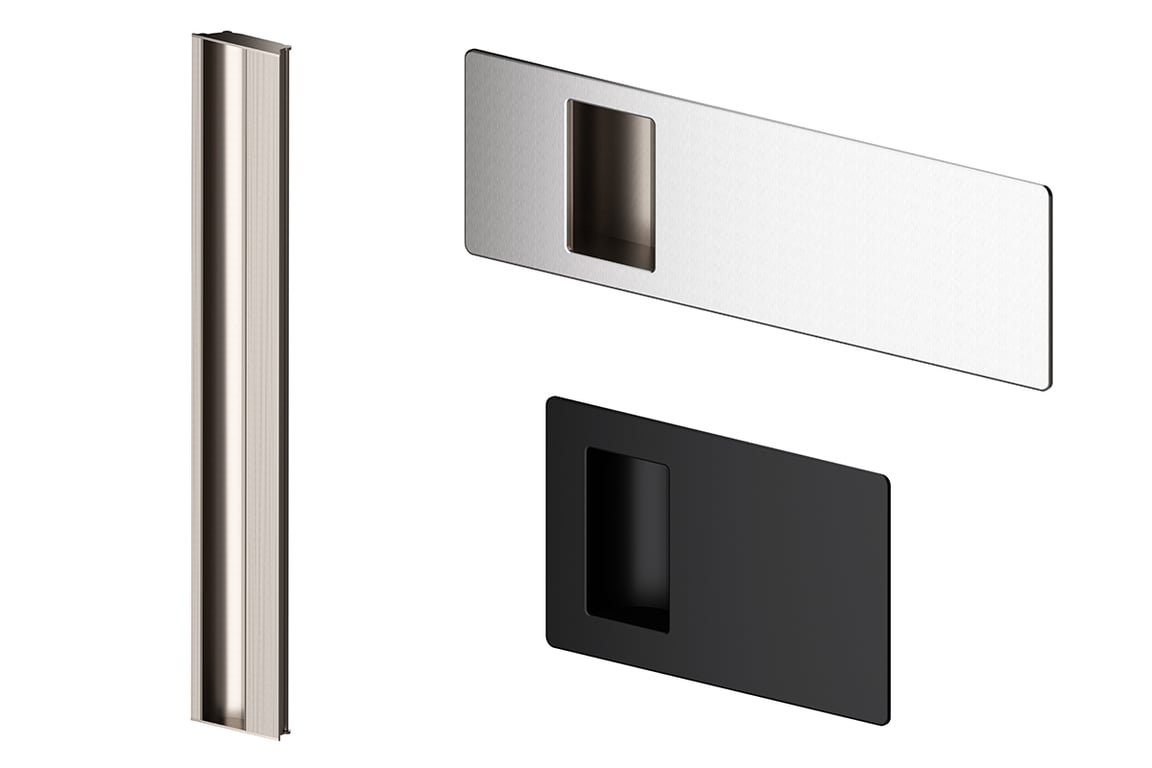

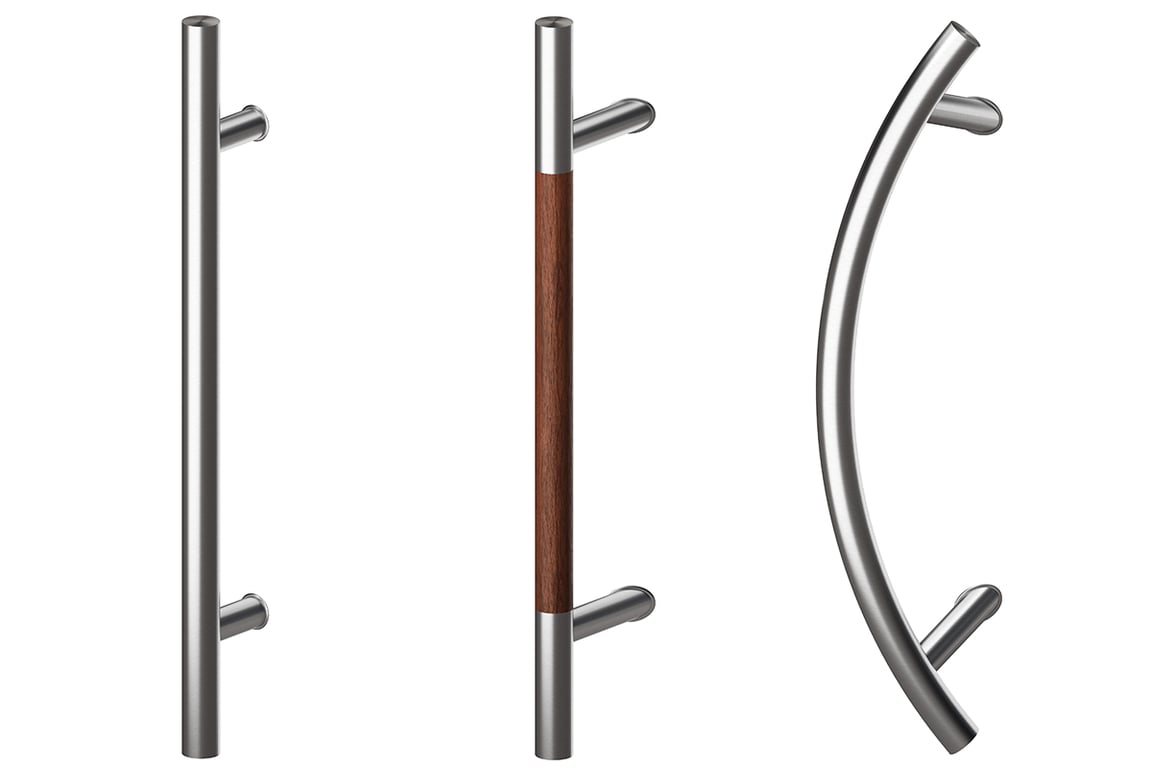

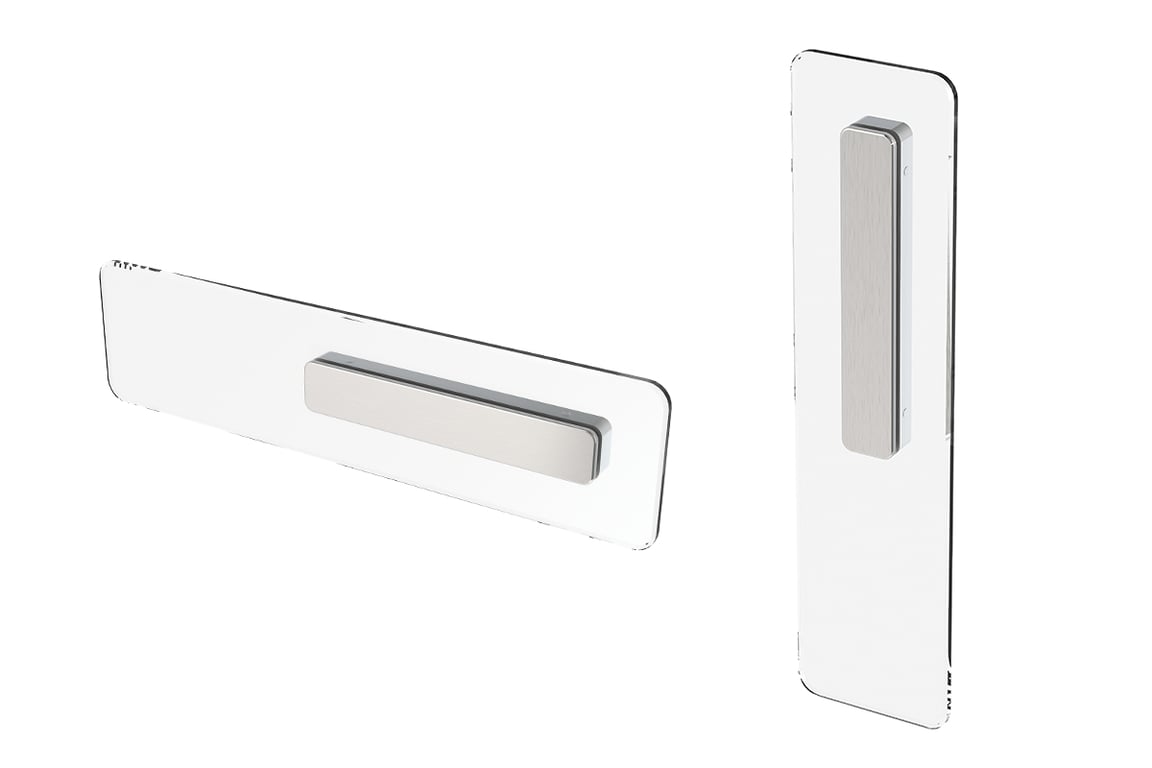

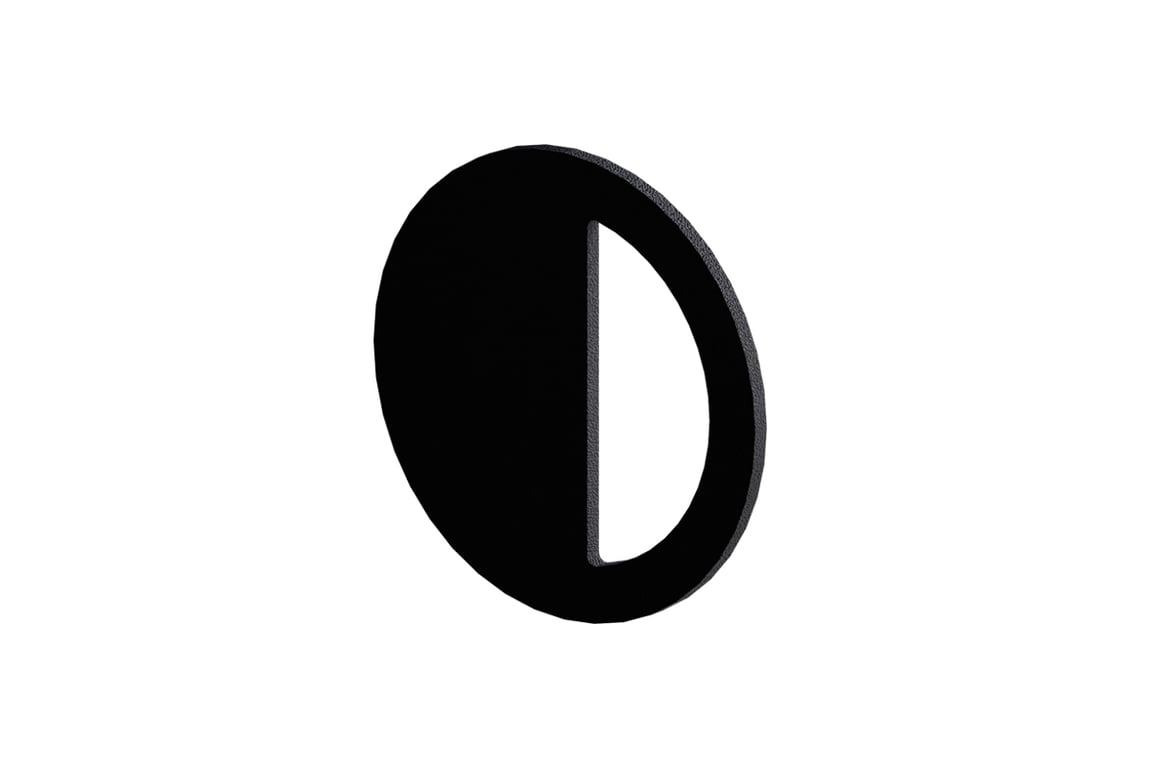

HANDLES

SOLUTION IN HANDLES

Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.

Compare Products

HANDLES

satisfactory options

All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
