“ DD SERIES - PANEL DOOR ”

Specifications

Min. Visible width

35mm

Thermal insulation

UW value down to 0,9W/m²K

Water tightness

Up to 450 Pa (EN 12208: CLASS 8A)

Acoustic performance

Rw= 40-50 dB

Air tightness

Up to 450 Pa (CLASS 3)

Wind load resistance

Up to 2000 Pa (EN 12210: C5)

Glass thickness

30mm-63mm

Overall system depth

86mm

Max. Weight

300 kg

Note: Performances may be different depending on the profile combinations.

DESIGN

“…Harmony of quality and sense of safety.”

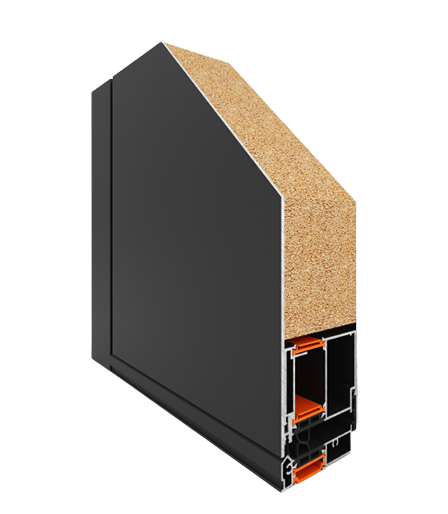

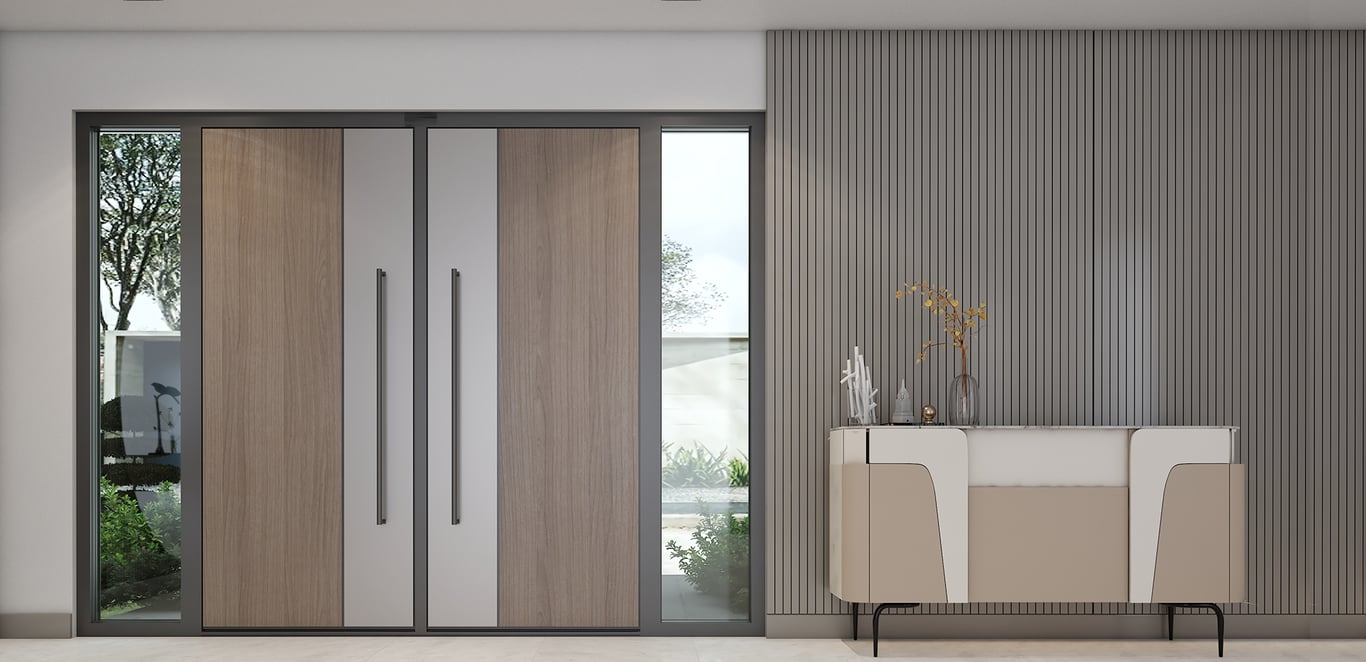

“ DD SERIES ” - PANEL DOOR

AS.IPD.860 system is a performance and insulated door system. The glazed variations and the variety in panel design make the aluminum panel door a popular choice for entry doors. It offers a smart living standard as it works in harmony with electronic lock systems. Thanks to its flexible designs, visual richness and maximum security advantage, it offers suitable alternatives for every user.

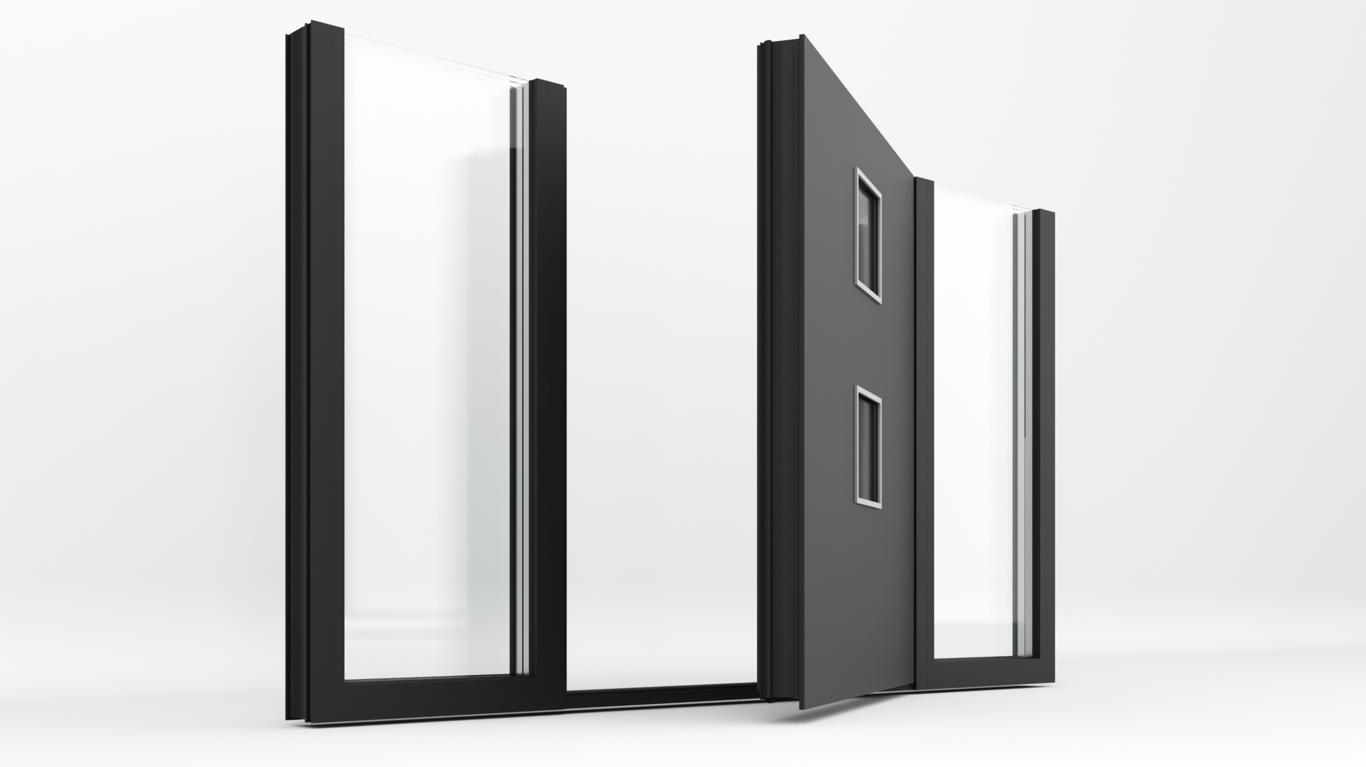

OPENING TYPES

Alufour offers a choice of solutions to offer variants that fit your needs and projects. There are opening variants specific to all systems and suitable for the system.

Available in multiple opening types and configurations.

DOWNLOAD

You can download brochures and documents related to the specific system you need in your projects from here.

To download and discover all Alufour Systems products you can look our download page.

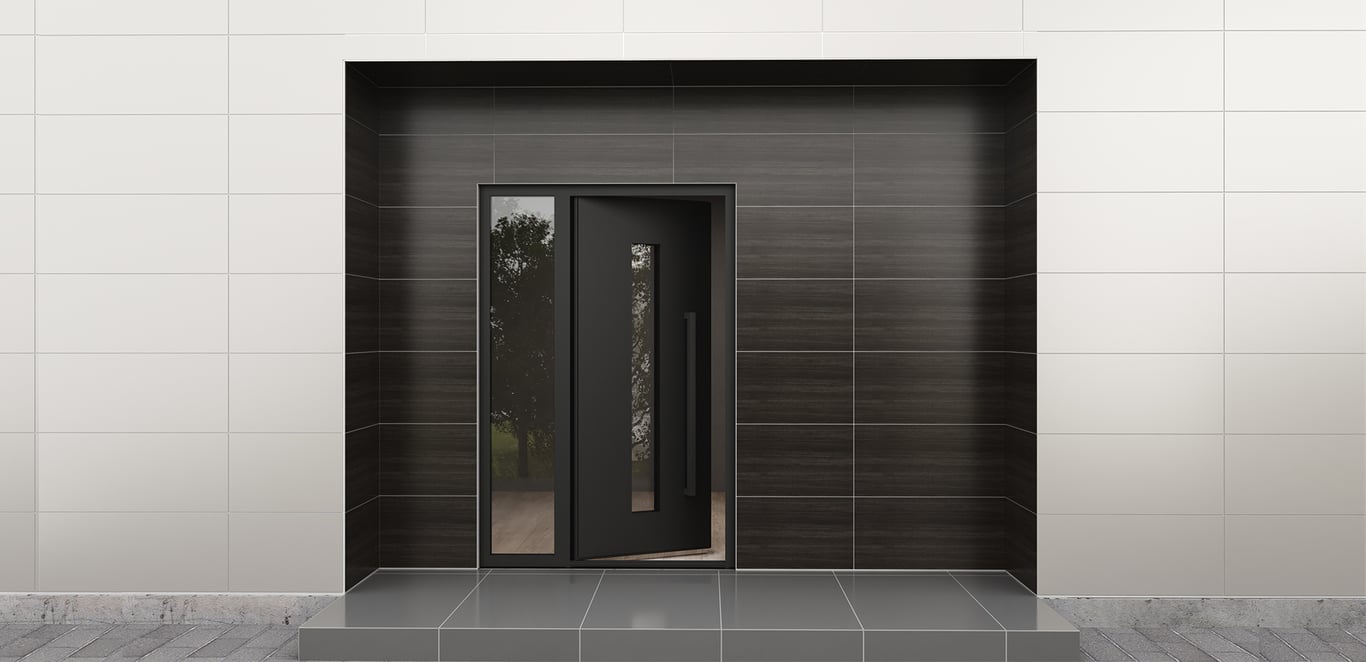

INSPIRE

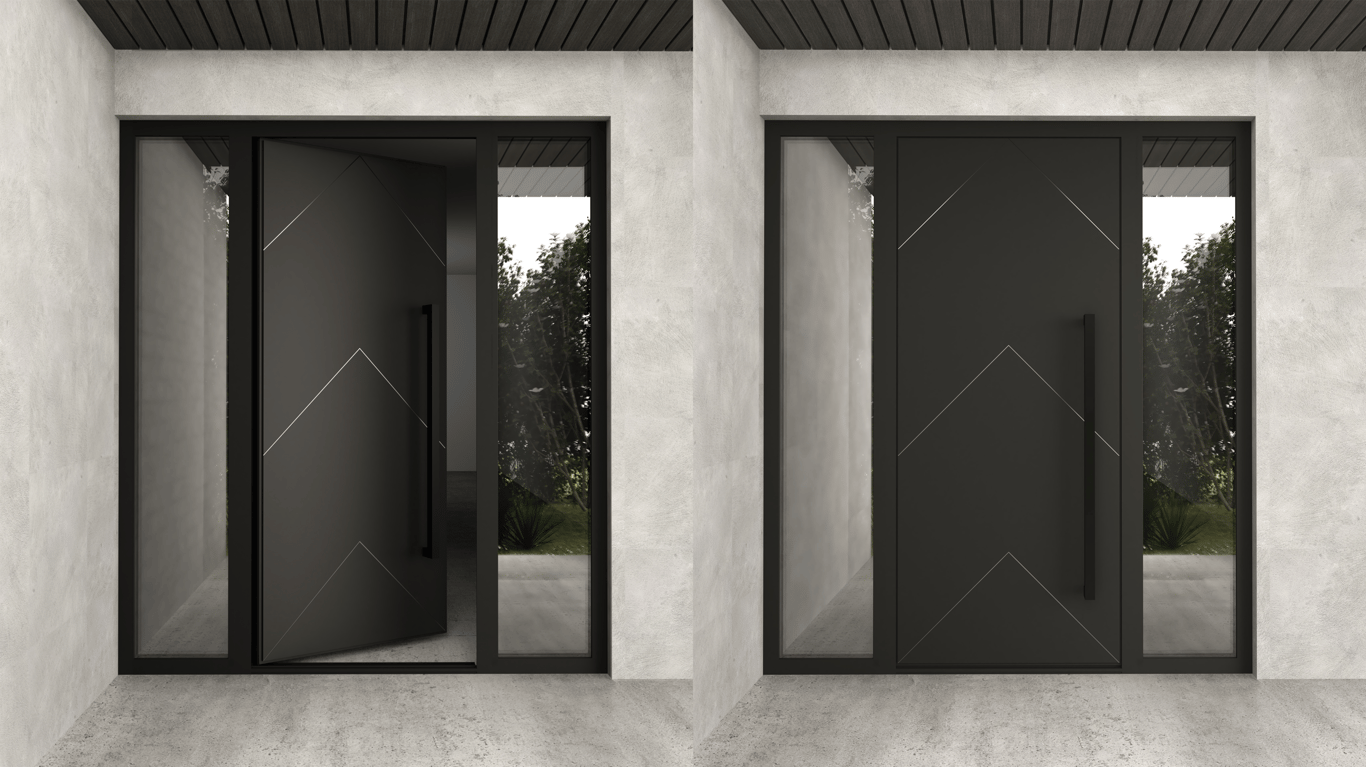

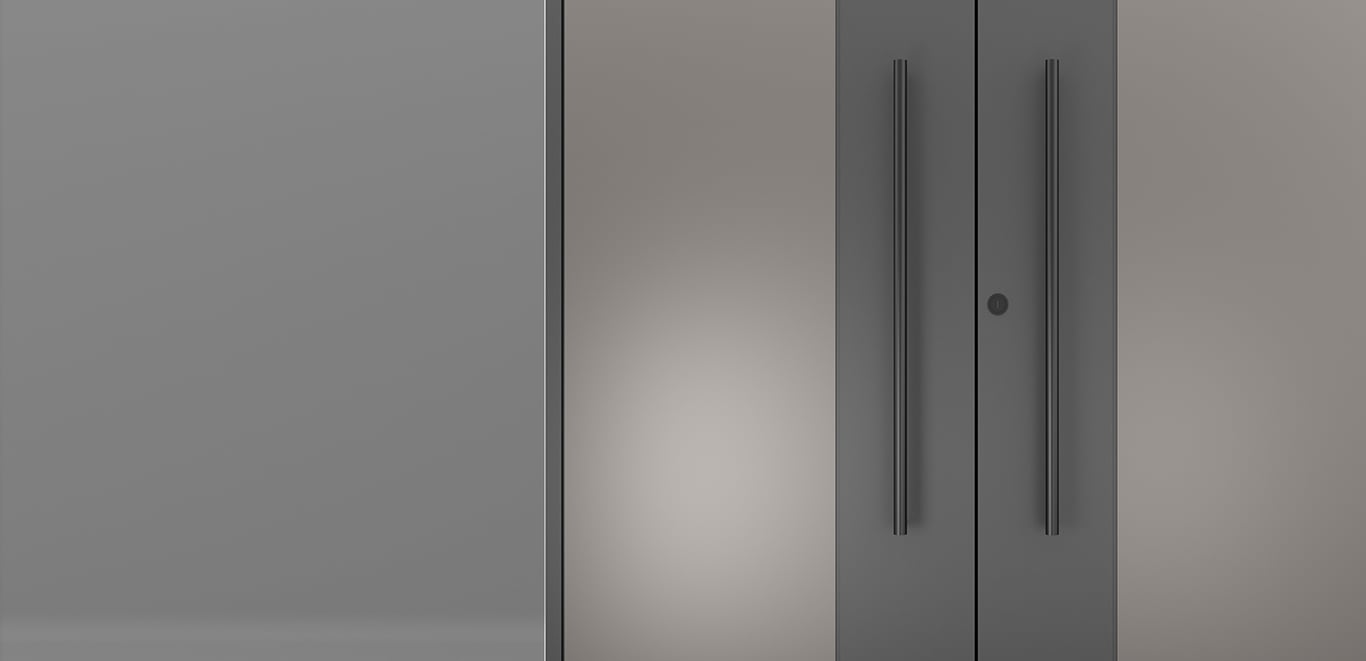

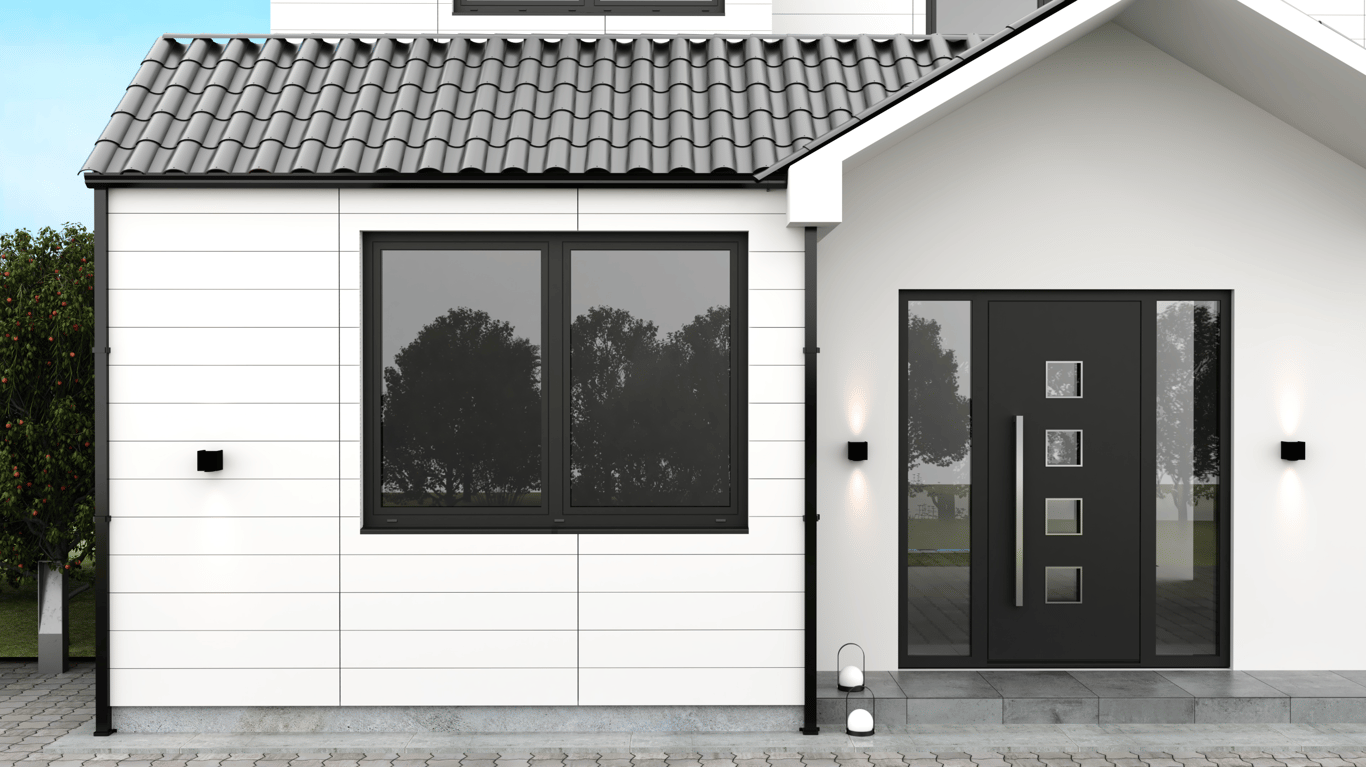

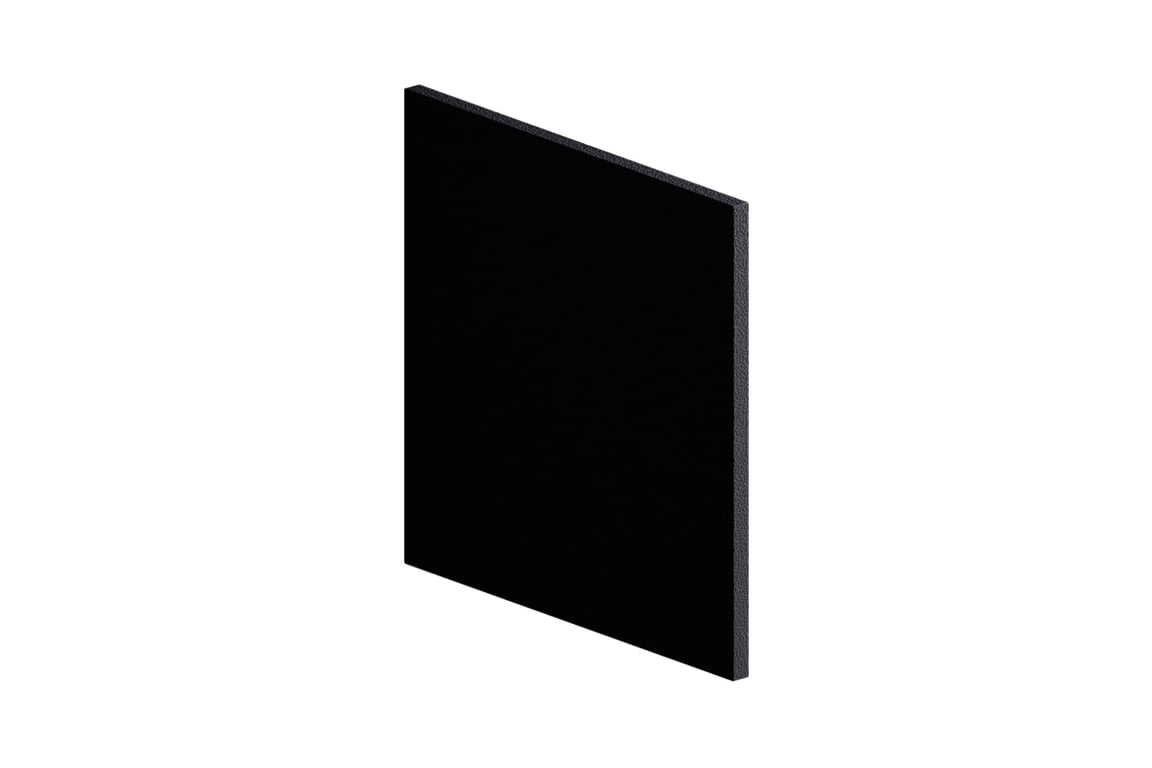

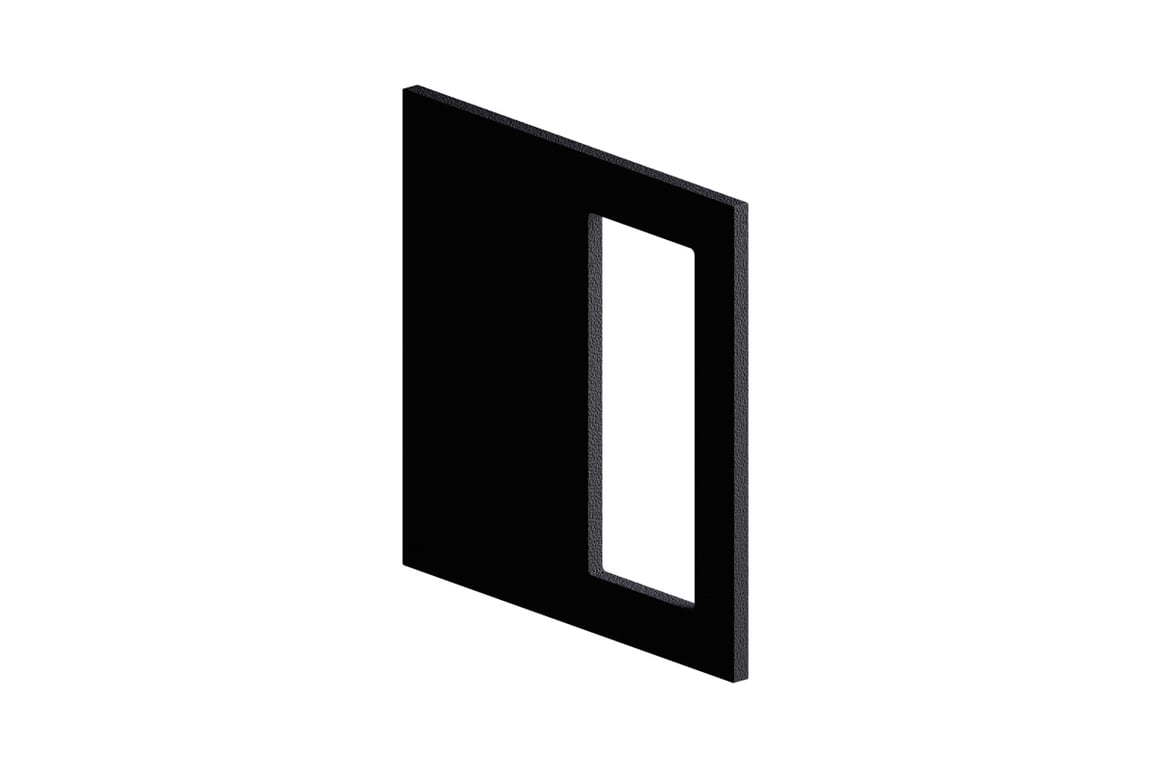

VARIANTS

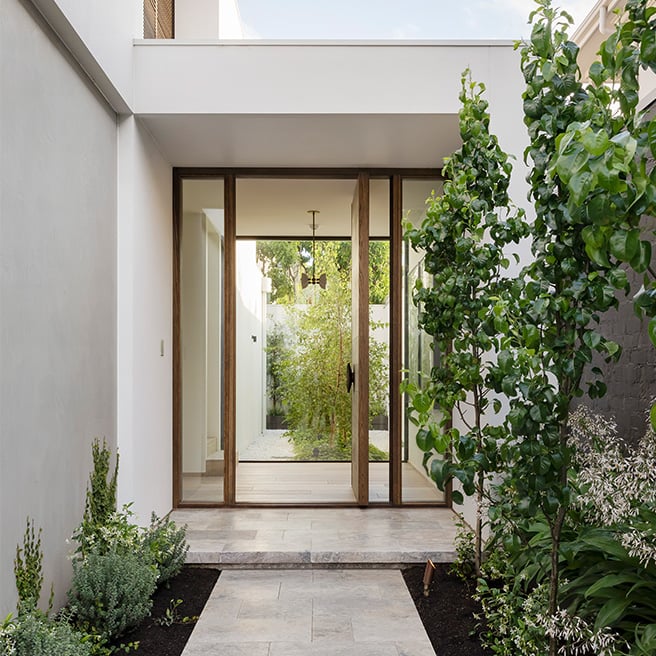

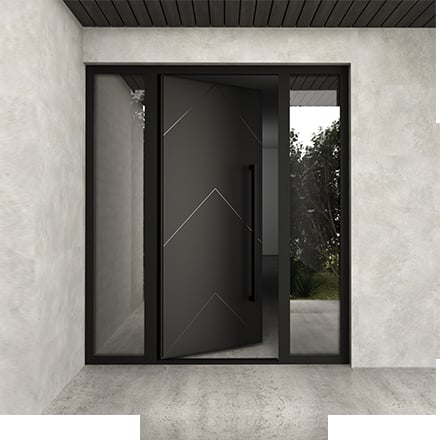

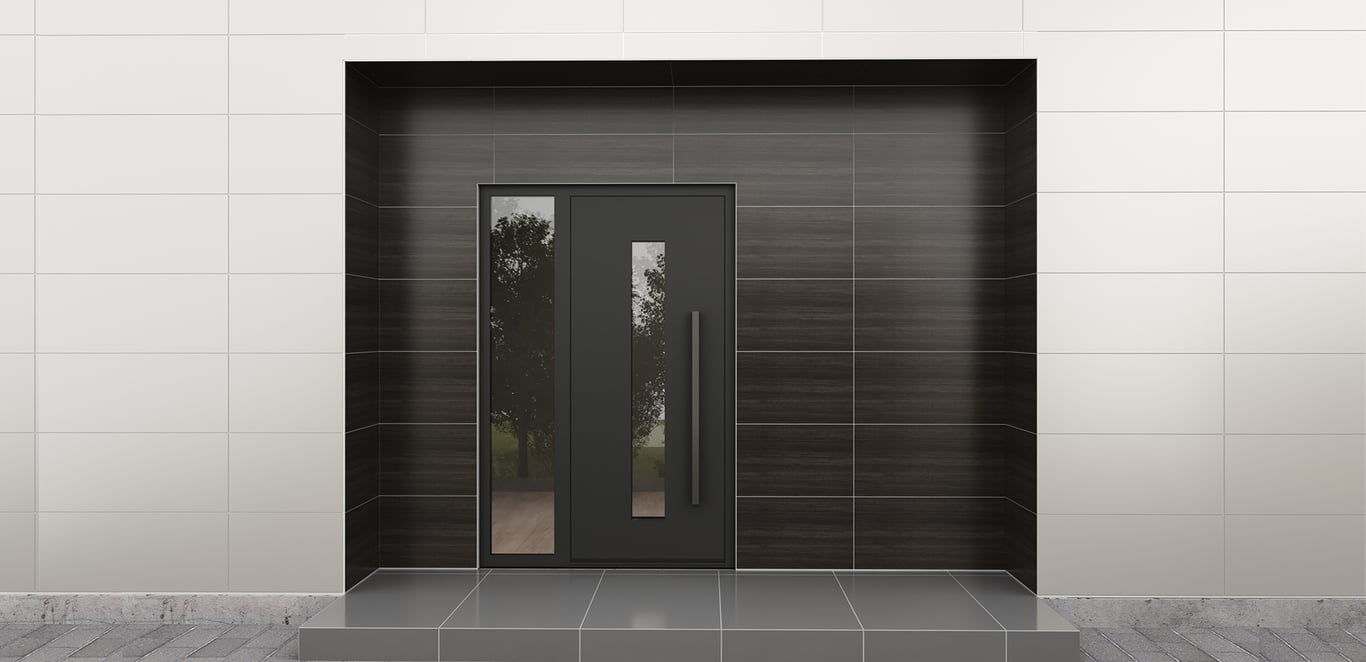

The variety in panel design make the aluminum panel door a popular choice for entry doors.

Thanks to its flexible designs, visual richness and maximum security advantage is a system that is widely used by designers.

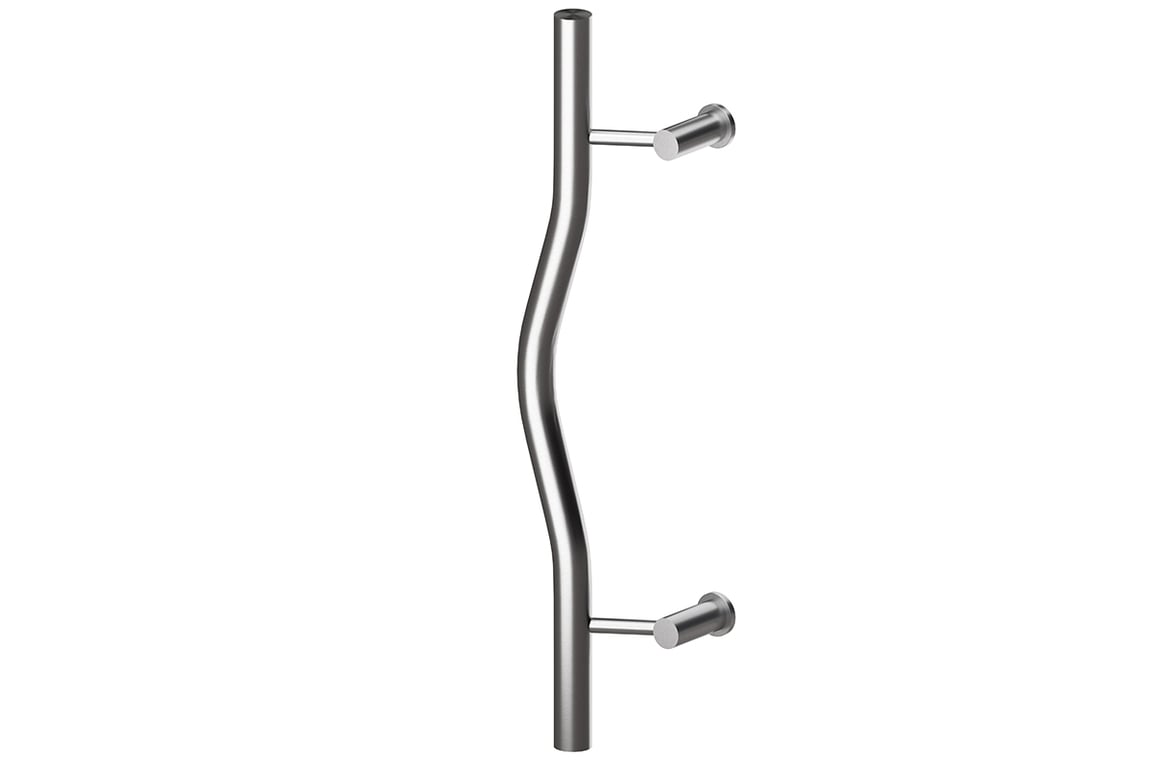

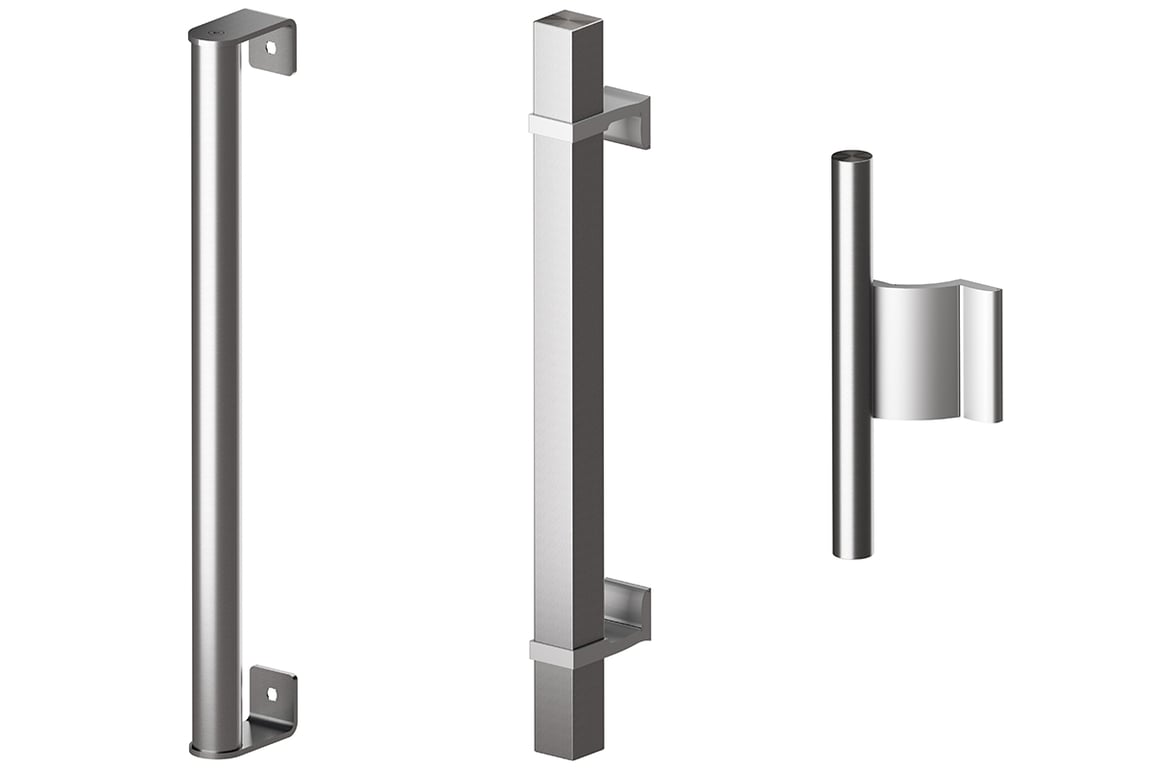

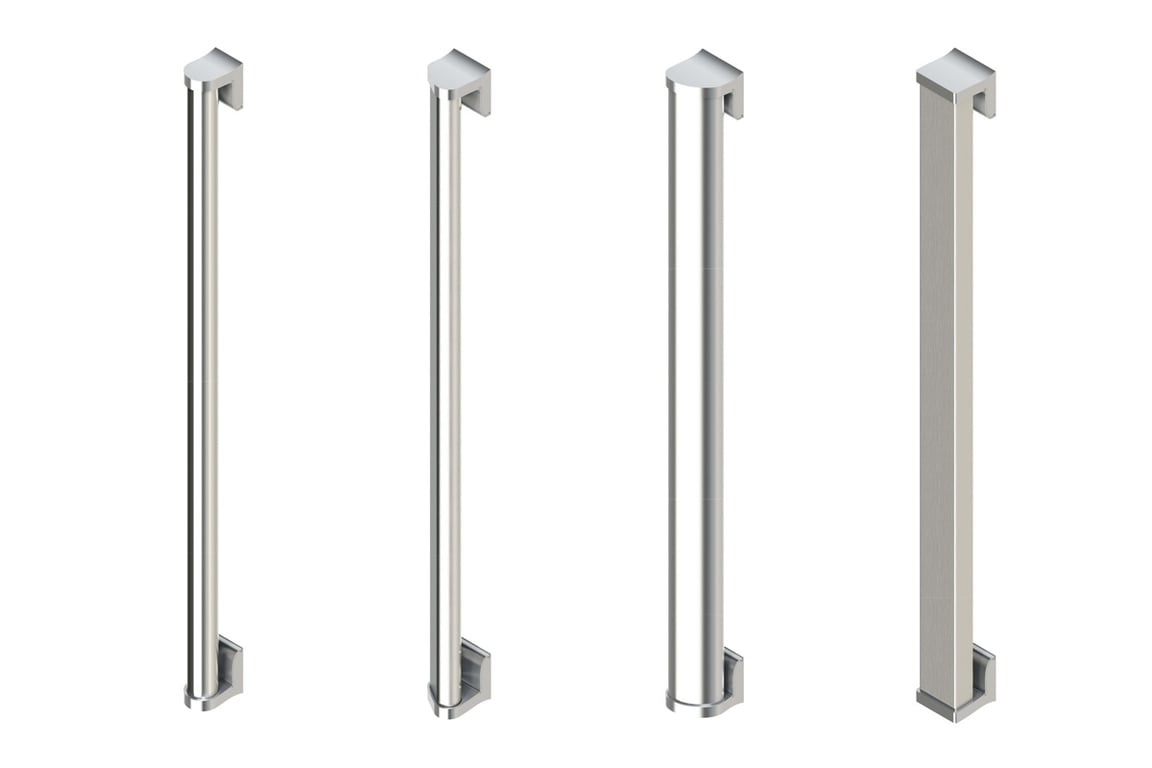

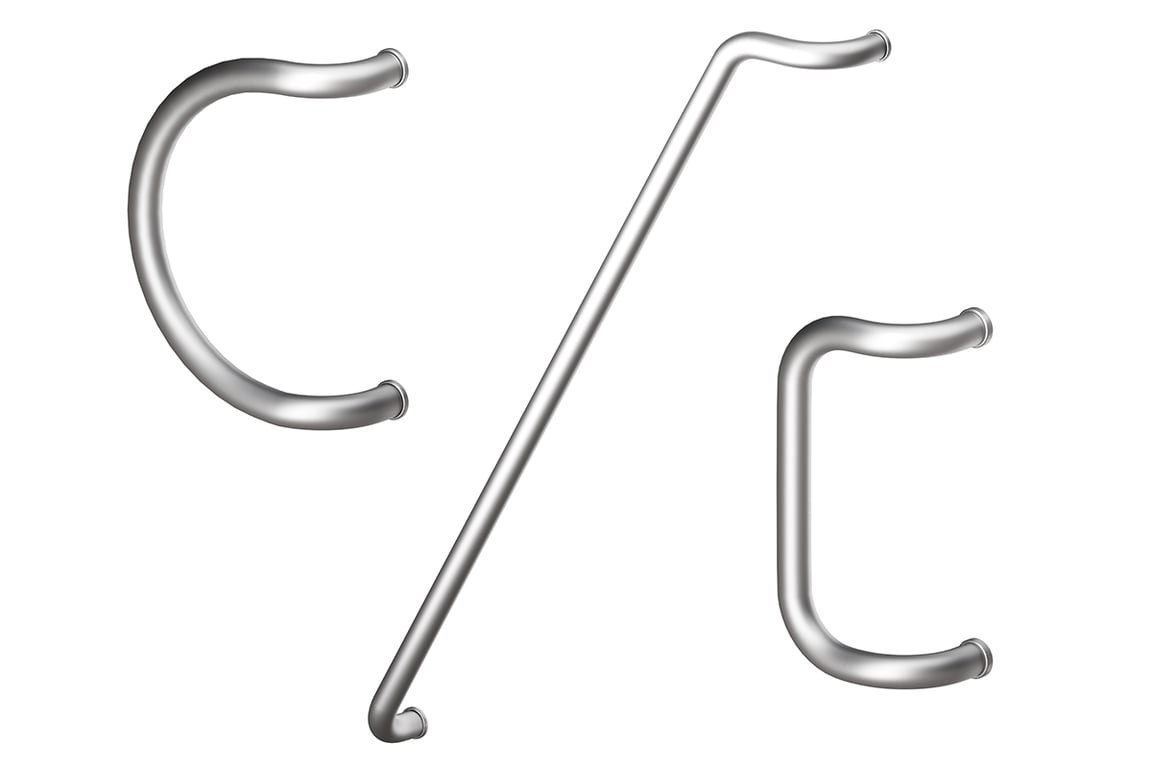

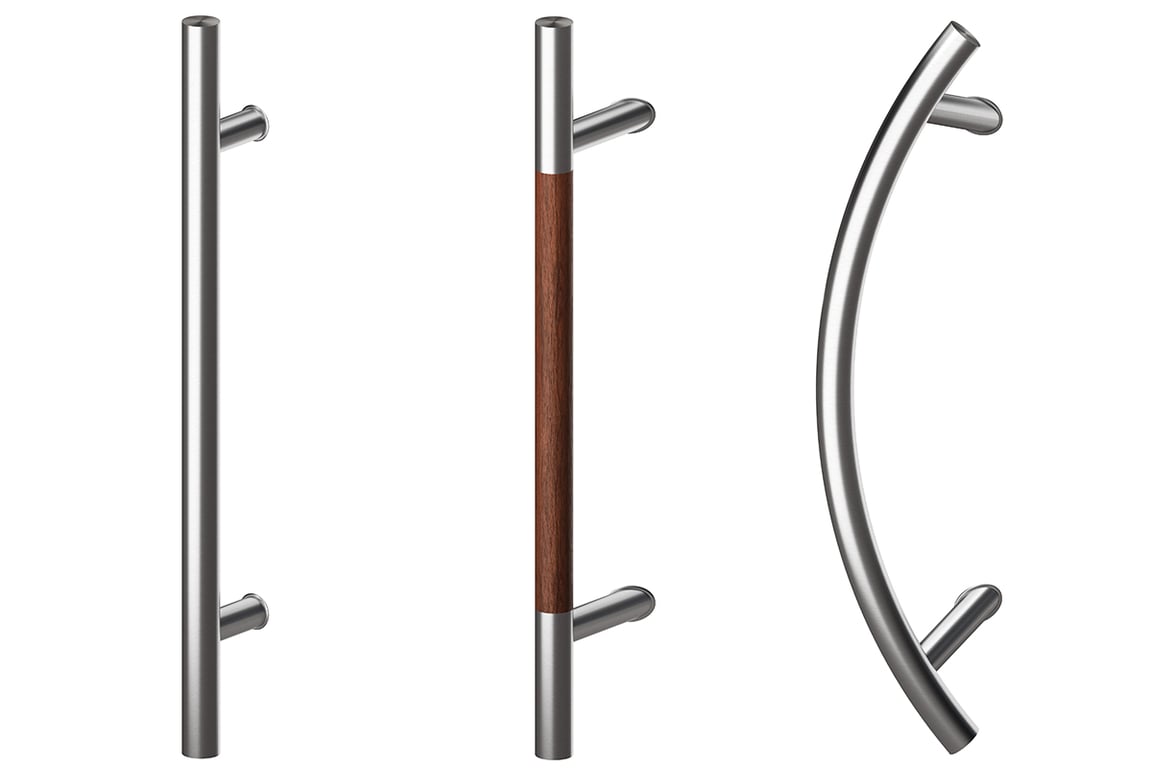

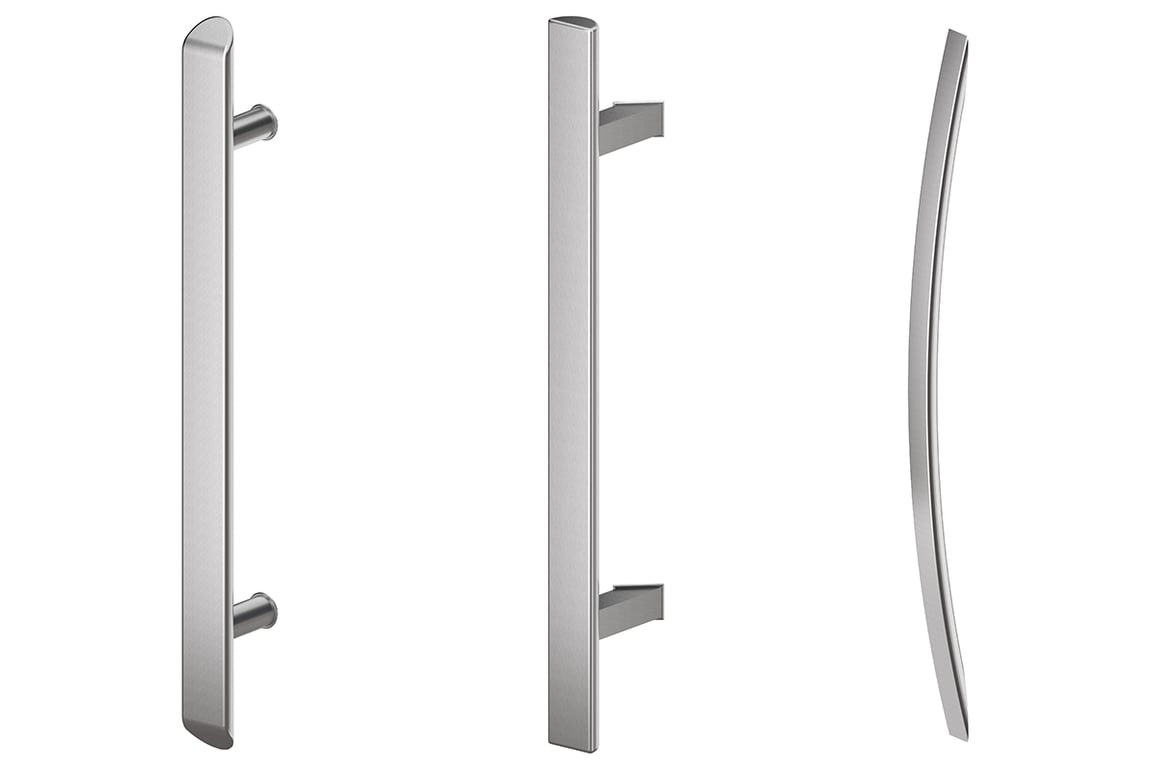

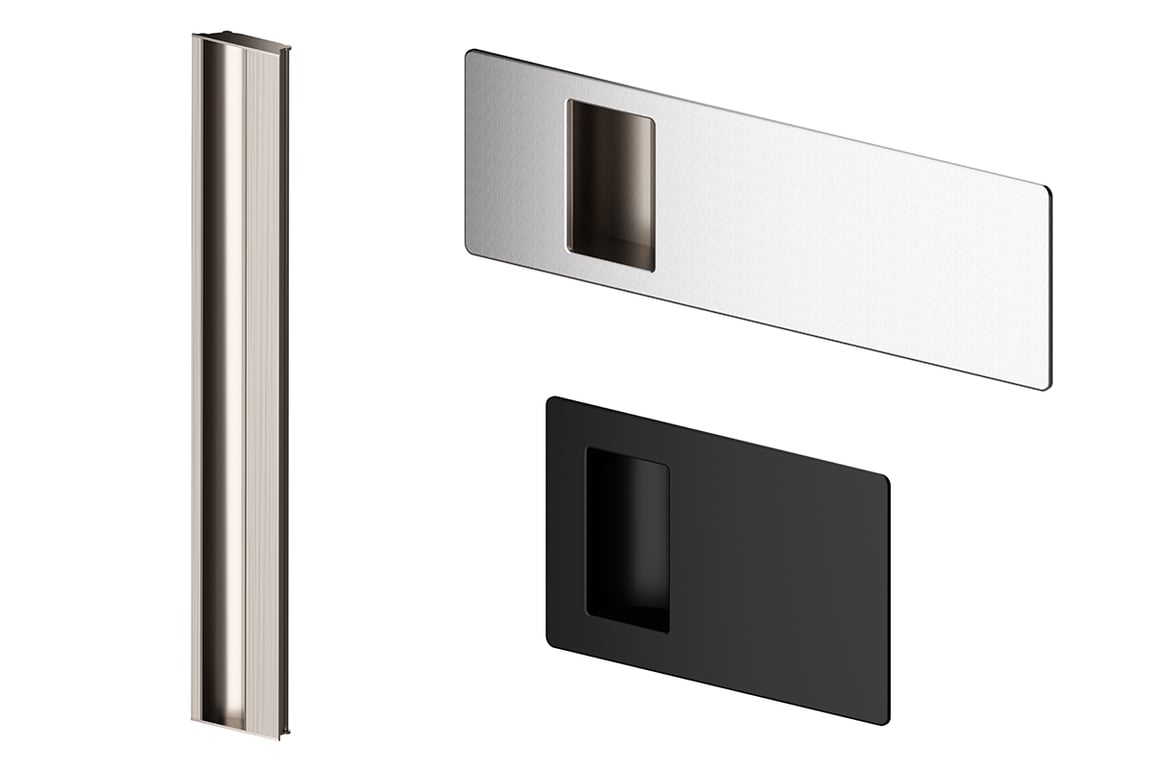

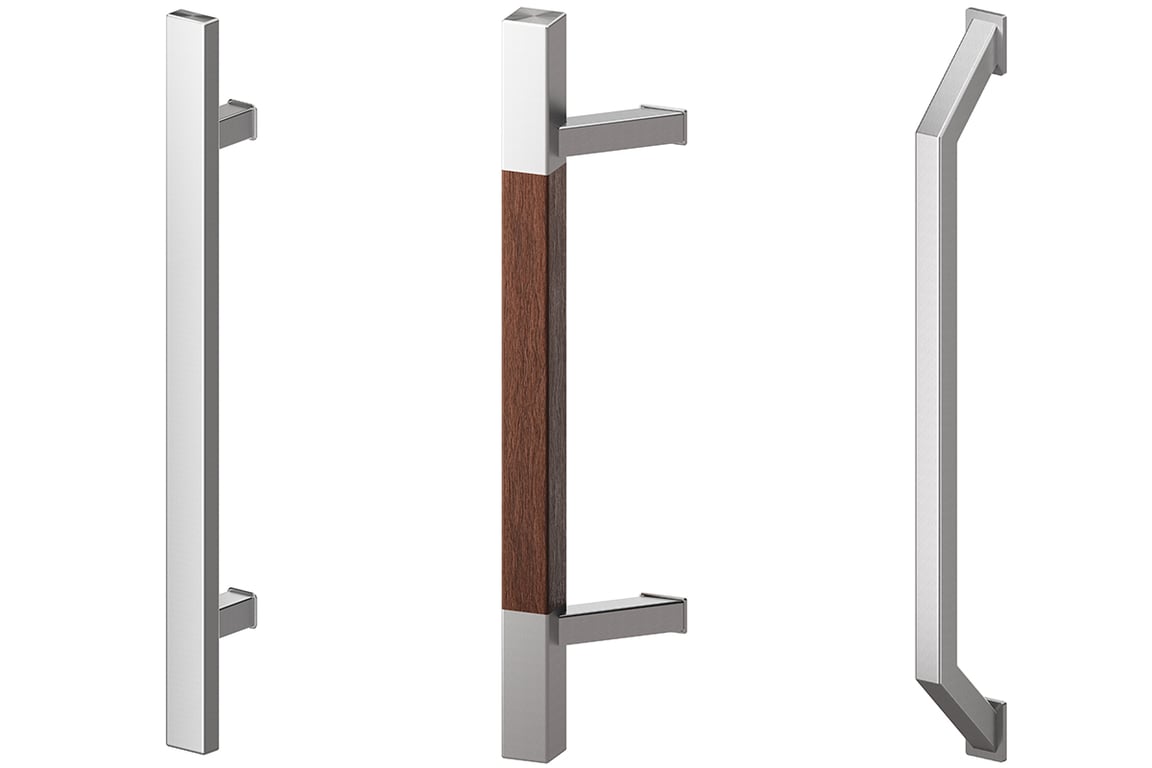

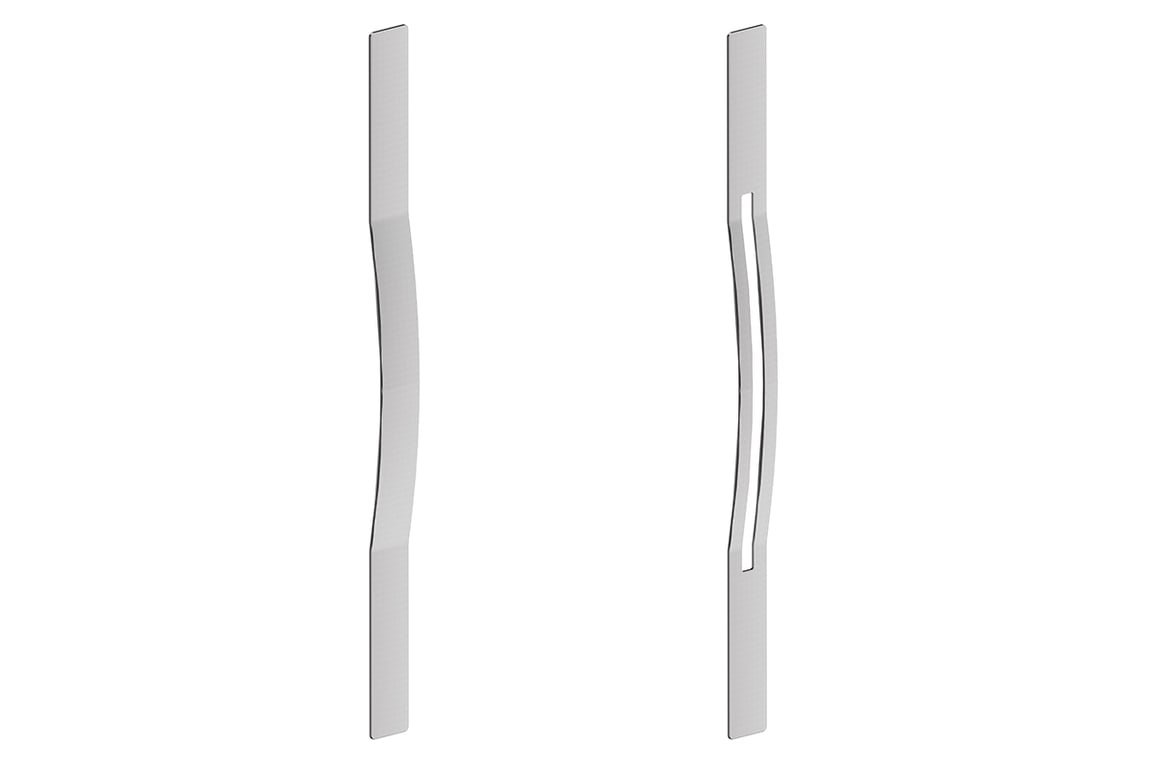

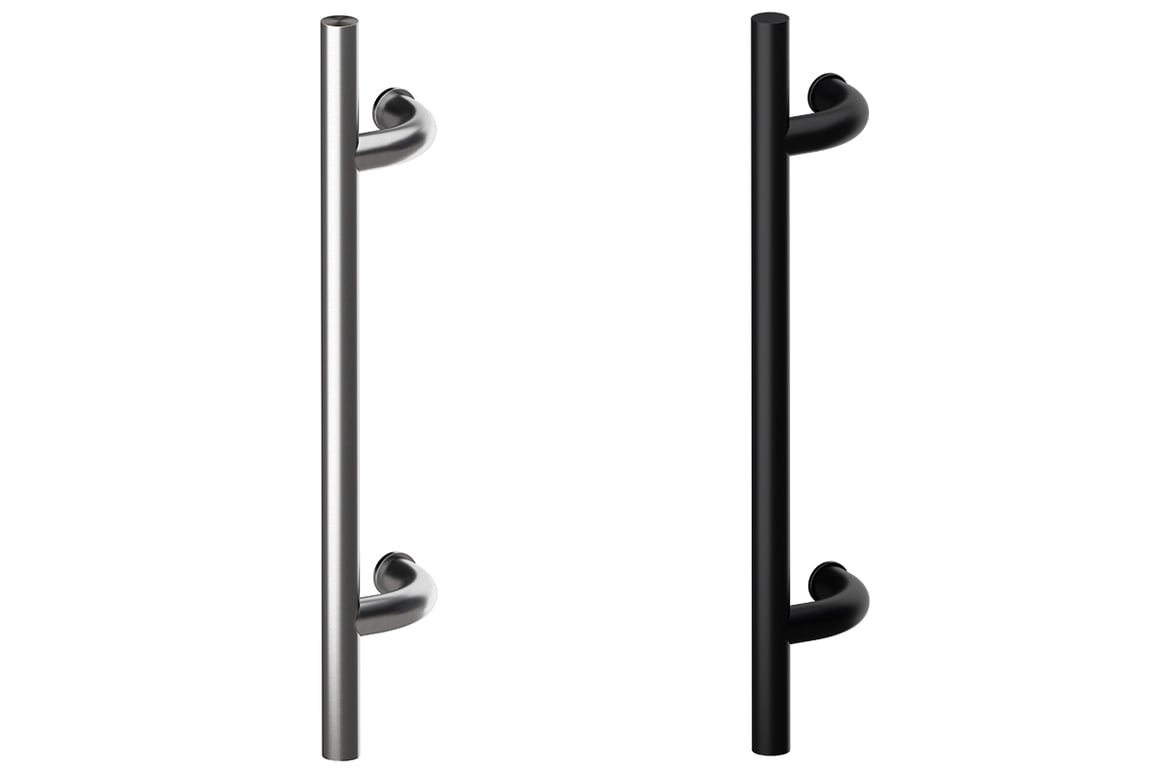

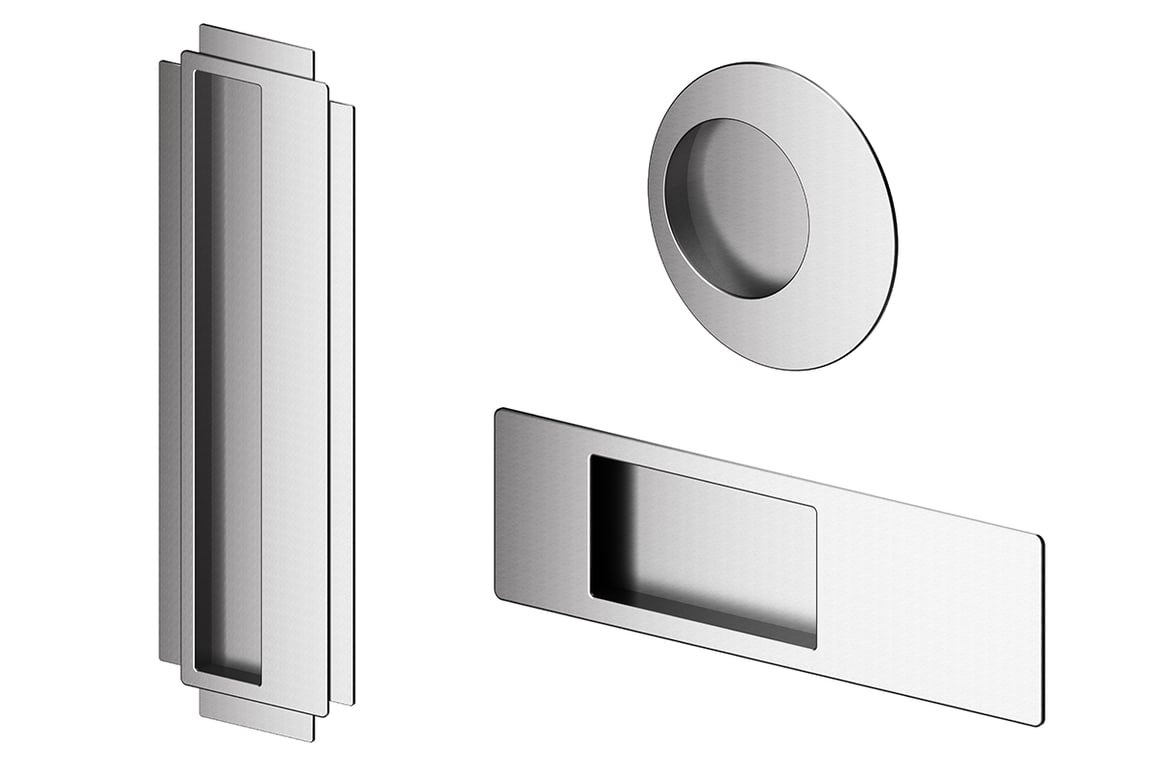

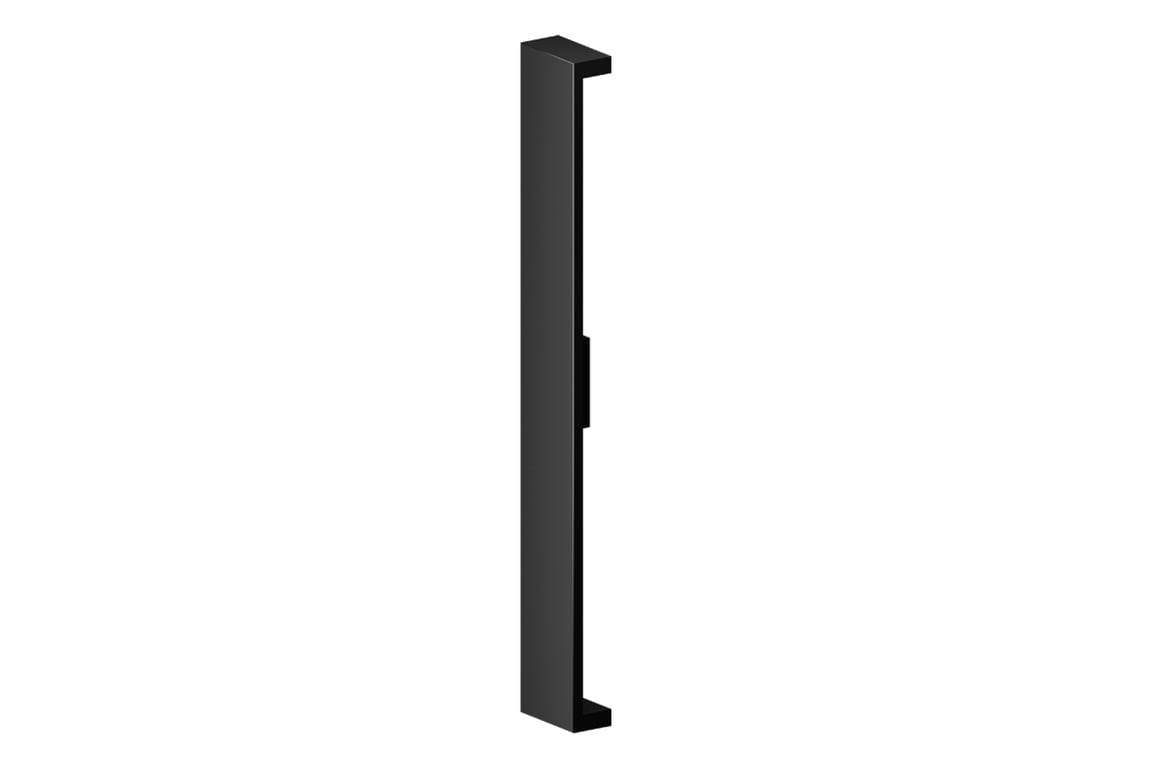

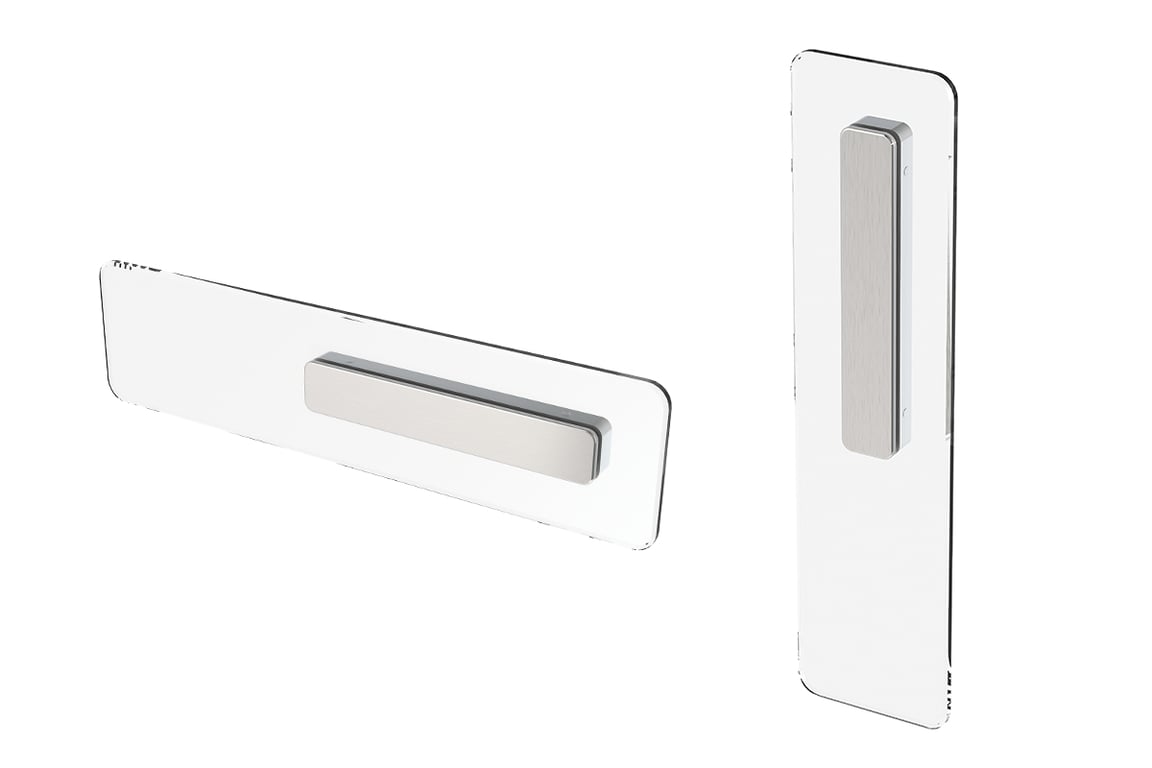

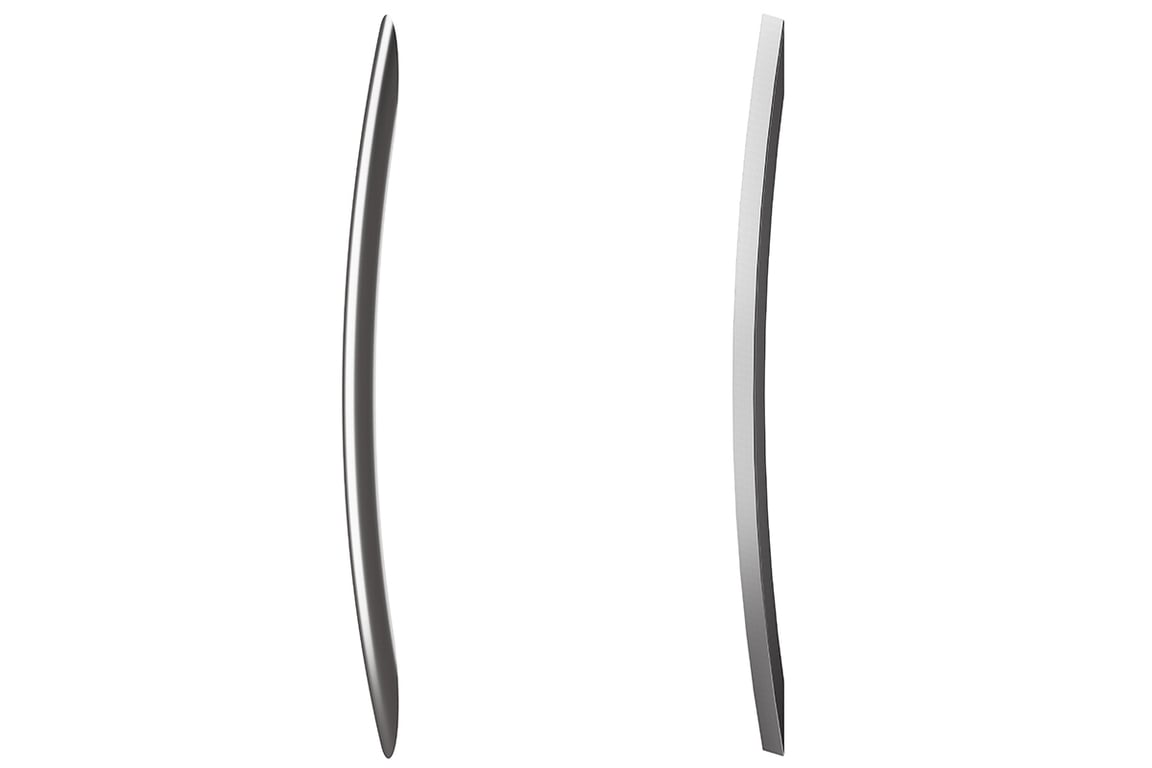

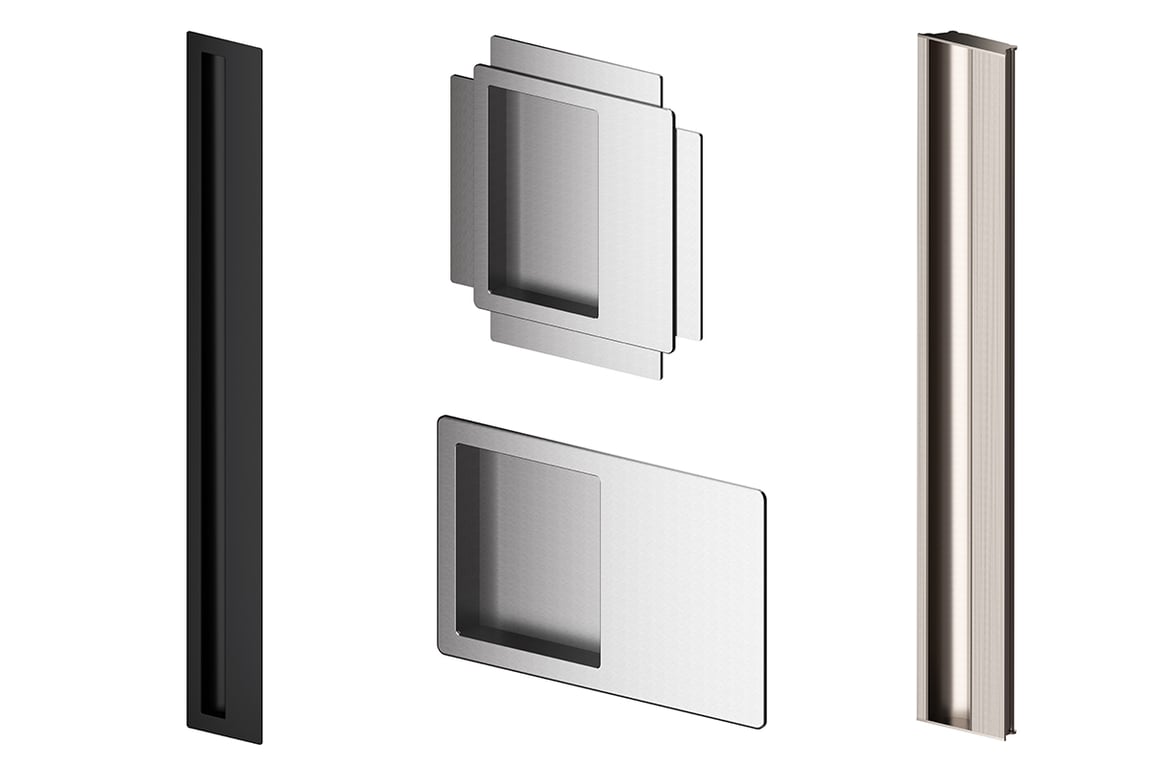

HANDLES

SOLUTION IN HANDLES

Following all technological innovations, sectoral developments and customer demands. Alufour offers the most accurate, most performance and most economical door-window handle options for its systems.

Compare Products

HANDLES

satisfactory options

All of our handle series are design products and offer satisfactory choices in your decision-making processes in your projects. Antibacterial surface treatment, which provides a superior resistance against the growth of microorganisms with a technology based on the diffusion of silver ions, adds functionality and awareness as well as aesthetics.
